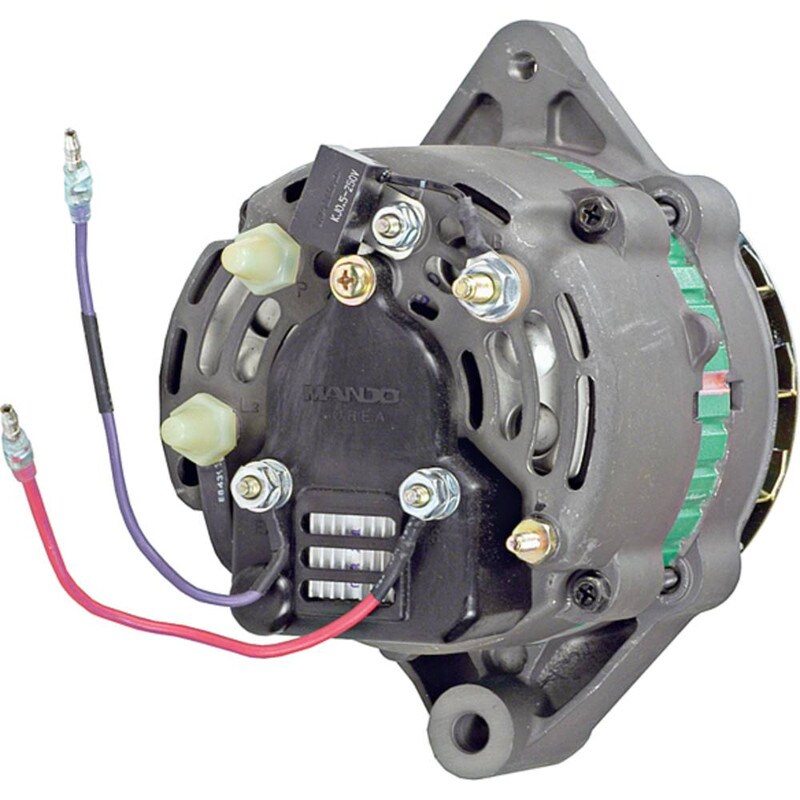

New MANDO Alternator for MERCRUISER, OMC & VOLVO PENTA Engine-Marine; 400-46005, AC155616, 807652, 807652, 3860769; LESTER 12174

Name: New MANDO Alternator for MERCRUISER, OMC &amp; VOLVO PENTA Engine-Marine; 400-46005, AC155616, 807652, 807652, 3860769; LESTER 12174
SKU: 9767
Availability: BackOrder

$287.36

Premium Quality, SAE J1171 Certified

Available on backorder

Categories: Alternator, Engines - Marine, Marine Inboard, Sterndrive (inboard/outboard)

Specifications

Unit Type	Alternator
Quality Type	Premium
Volt	12
Amps	55
Mount Hole ID 1	5/16-18
Mount Hole 1 Type	Threaded
Mount Hole 2 Type	Unthreaded
Fan Location	External
Regulator Location	Internal
Terminal ID 2	B+
Terminal 2 Size	1/4-20
Polarity	Negative
Number of Grooves	6
Pulley Type	Solid
Pulley Outer Diameter	2.480″
Pulley Outer Diameter	63mm
Warranty	1 Year

Applications

Make	Model	Engine	Year
Mercruiser	Model 120	153cu in, 2.5L 4 cyl	1983, 1984, 1985, 1986, 1987, 1988, 1989
Mercruiser	Model 140	181cu in, 3.0L 4 cyl	1983, 1984, 1985, 1986
Mercruiser	Model 175	262cu in, 4.3L 6 cyl	1987, 1988, 1989, 1990, 1991, 1992
Mercruiser	Model 185	229cu in, 3.8L 6 cyl	1983, 1984
Mercruiser	Model 185	262cu in, 4.3L 6 cyl	1985, 1986, 1987
Mercruiser	Model 2.5L	153cu in, 2.5L 4 cyl	1987, 1988, 1989
Mercruiser	Model 200	305cu in, 5.0L 8 cyl	1985, 1986, 1987
Mercruiser	Model 200	305cu in, 5.0L 8 cyl	1987
Mercruiser	Model 205	262cu in, 4.3L 6 cyl	1985, 1986, 1987, 1988, 1989, 1990, 1991
Mercruiser	Model 228	305cu in, 5.0L 8 cyl	1982, 1983, 1984
Mercruiser	Model 230 MIE	305cu in, 5.0L 8 cyl	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 230	305cu in, 5.0L 8 cyl	1985, 1986, 1987
Mercruiser	Model 230	305cu in, 5.0L 8 cyl	1987
Mercruiser	Model 260 MIE	350cu in, 5.7L 8 cyl	1987
Mercruiser	Model 260	350cu in, 5.7L 8 cyl	1987
Mercruiser	Model 3.0 / 3.0LX	181cu in, 3.0L 4 cyl
Mercruiser	Model 3.0 / 3.0LX	181cu in, 3.0L 4 cyl	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 3.0 / 3.0LX	181cu in, 3.0L 4 cyl	1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 3.0 / 3.0LX	181cu in, 3.0L 4 cyl	1996, 1997, 1998
Mercruiser	Model 3.0	3000cc, 3L 4 cyl	1996, 1997, 1998
Mercruiser	Model 3.0	3000cc, 3L 4 cyl	1999
Mercruiser	Model 3.0LX	3000cc, 3L 4 cyl	1996, 1997, 1998
Mercruiser	Model 3.0LX	3000cc, 3L 4 cyl	1999
Mercruiser	Model 330	454cu in, 7.4L 8 cyl	1982, 1983, 1984, 1985, 1986, 1987
Mercruiser	Model 350 Mag Alpha (4-BBL)	5.7L 8 cyl	1996
Mercruiser	Model 350 Mag Alpha (4-BBL)	5.7L 8 cyl	1997
Mercruiser	Model 350 Mag Alpha (4-BBL)	5700cc, 5.7L 8 cyl	1997
Mercruiser	Model 350 Mag Alpha	5.7L 8 cyl	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 350 Mag Alpha	5.7L 8 cyl	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 350 Mag Ski	5.7L 8 cyl	1991, 1992, 1993, 1994, 1995, 1996
Mercruiser	Model 350 Mag Ski	5.7L 8 cyl	1997
Mercruiser	Model 4.3L (2-BBL)	262cu in, 4.3L 6 cyl	1988, 1989, 1990, 1991, 1992
Mercruiser	Model 4.3L (Gen +)	262cu in, 4.3L 6 cyl
Mercruiser	Model 4.3L (Gen +)	262cu in, 4.3L 6 cyl	1996, 1997
Mercruiser	Model 4.3L (Gen +)	4300cc, 4.3L 6 cyl	1996, 1997, 1998
Mercruiser	Model 4.3L (Gen II) (2-BBL)	262cu in, 4.3L 6 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 4.3L (Gen II)	262cu in, 4.3L 6 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 4.3LH (Gen +) (4-BBL)	262cu in, 4.3L 6 cyl
Mercruiser	Model 4.3LH (Gen +) (4-BBL)	4300cc, 4.3L 6 cyl	1998
Mercruiser	Model 4.3LHX (Gen +) (4-BBL)	262cu in, 4.3L 6 cyl	1996, 1997
Mercruiser	Model 4.3LHX (Gen +) (4-BBL)	4300cc, 4.3L 6 cyl	1996, 1997
Mercruiser	Model 4.3LX (4-BBL)	262cu in, 4.3L 6 cyl	1988, 1989, 1990, 1991, 1992
Mercruiser	Model 4.3LX (Gen +) (2-BBL)	262cu in, 4.3L 6 cyl	1996, 1997
Mercruiser	Model 4.3LX (Gen +) (2-BBL)	4300cc, 4.3L 6 cyl	1996, 1997
Mercruiser	Model 4.3LX (Gen II) (4-BBL)	262cu in, 4.3L 6 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 420	454cu in, 7.4L 8 cyl	1987, 1988, 1989
Mercruiser	Model 425 (Gen V)	454cu in, 7.4L 8 cyl	1992, 1993
Mercruiser	Model 425	454cu in, 7.4L 8 cyl	1990, 1991, 1992
Mercruiser	Model 450 (Gen V)	454cu in, 7.4L 8 cyl	1995, 1996
Mercruiser	Model 454 Mag Alpha	7.4L 8 cyl	1986, 1987, 1988
Mercruiser	Model 454 Mag Bravo (Gen V)	7.4L 8 cyl	1992, 1993, 1994
Mercruiser	Model 454 Mag Bravo (Gen V)	7.4L 8 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 454 Mag Bravo (Gen VI)	7.4L 8 cyl	1996, 1997
Mercruiser	Model 454 Mag Bravo	7.4L 8 cyl	1988, 1989, 1990, 1991, 1992
Mercruiser	Model 465 (Gen V)	502cu in, 8.2L 8 cyl	1992, 1993, 1994
Mercruiser	Model 465	502cu in, 8.2L 8 cyl	1990, 1991, 1992
Mercruiser	Model 5.0L (2-BBL) (Gen +)	305cu in, 5.0L 8 cyl	1998, 1999, 2000, 2001, 2002
Mercruiser	Model 5.0L (2-BBL) (Gen +)	5000cc, 5L 8 cyl	1998, 1999, 2000, 2001, 2002
Mercruiser	Model 5.0L (2-BBL)	305cu in, 5.0L 8 cyl	1995, 1996, 1997, 1998
Mercruiser	Model 5.0L (2-BBL)	5000cc, 5L 8 cyl	1995, 1996, 1997, 1998
Mercruiser	Model 5.0L (4-BBL)	305cu in, 5.0L 8 cyl	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 5.0LX	305cu in, 5.0L 8 cyl	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 5.7L (2-BBL) (Gen +)	350cu in, 5.7L 8 cyl	1998, 1999, 2000, 2001, 2002
Mercruiser	Model 5.7L (2-BBL) (Gen +)	5700cc, 5.7L 8 cyl	1998, 1999, 2000, 2001, 2002
Mercruiser	Model 5.7L (2-BBL)	350cu in, 5.7L 8 cyl	1996
Mercruiser	Model 5.7L (2-BBL)	350cu in, 5.7L 8 cyl	1997, 1998
Mercruiser	Model 5.7L (2-BBL)	5700cc, 5.7L 8 cyl	1997, 1998
Mercruiser	Model 5.7L Bravo	350cu in, 5.7L 8 cyl	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 5.7L Competition Ski	350cu in, 5.7L 8 cyl	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 5.7L Competition Ski	350cu in, 5.7L 8 cyl	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Mercruiser	Model 5.7L Competition Ski	350cu in, 5.7L 8 cyl	1997
Mercruiser	Model 5.7L EFI (Gen +)	350cu in, 5.7L 8 cyl
Mercruiser	Model 5.7L EFI (Gen +)	350cu in, 5.7L 8 cyl	1998
Mercruiser	Model 5.7L MIE	350cu in, 5.7L 8 cyl
Mercruiser	Model 5.7L MIE	350cu in, 5.7L 8 cyl	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Mercruiser	Model 5.7L MIE	350cu in, 5.7L 8 cyl	1994, 1995, 1996
Mercruiser	Model 5.7L MIE	350cu in, 5.7L 8 cyl	1997, 1998
Mercruiser	Model 5.7L MIE	350cu in, 5.7L 8 cyl	1997, 1998, 1999
Mercruiser	Model 5.7L Ski (Gen +)	350cu in, 5.7L 8 cyl
Mercruiser	Model 5.7L Ski (Gen +)	350cu in, 5.7L 8 cyl	1998
Mercruiser	Model 5.7L Ski	350cu in, 5.7L 8 cyl	1985, 1986, 1987
Mercruiser	Model 5.7LX (4-BBL)	350cu in, 5.7L 8 cyl	1996
Mercruiser	Model 5.7LX (4-BBL)	350cu in, 5.7L 8 cyl	1997
Mercruiser	Model 5.7LX (4-BBL)	5700cc, 5.7L 8 cyl	1997
Mercruiser	Model 500 (Gen +)	502cu in, 8.2L 8 cyl	1999, 2000
Mercruiser	Model 500 (Gen V)	502cu in, 8.2L 8 cyl	1994, 1995, 1996
Mercruiser	Model 500 (Gen VI)	502cu in, 8.2L 8 cyl	1997, 1998
Mercruiser	Model 500 Bulldog	540cu in, 8.9L 8 cyl	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Mercruiser	Model 502 Mag Bravo (Gen V)	8.2L 8 cyl	1992, 1993
Mercruiser	Model 502 Mag Bravo	8.2L 8 cyl	1990, 1991, 1992
Mercruiser	Model 525SC (Gen V)	454cu in, 7.4L 8 cyl	1992, 1993, 1994, 1995
Mercruiser	Model 525SC (Gen V)	454cu in, 7.4L 8 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 525SC (Gen VI)	454cu in, 7.4L 8 cyl
Mercruiser	Model 525SC	454cu in, 7.4L 8 cyl	1991, 1992
Mercruiser	Model 600SC (Gen IV & V)	502cu in, 8.2L 8 cyl	1991, 1992, 1993, 1994, 1995, 1996
Mercruiser	Model 600SC (Gen VI)	502cu in, 8.2L 8 cyl	1997, 1998
Mercruiser	Model 7.4L Bravo (Gen V)	454cu in, 7.4L 8 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 7.4L Bravo (Gen VI)	454cu in, 7.4L 8 cyl	1996, 1997
Mercruiser	Model 7.4L Bravo	454cu in, 7.4L 8 cyl	1988, 1989, 1990, 1991
Mercruiser	Model 7.4L MIE (LH) (Gen V)	454cu in, 7.4L 8 cyl	1992, 1993, 1994, 1995, 1996
Mercruiser	Model 7.4L MIE (LH) (Gen VI)	454cu in, 7.4L 8 cyl	1996, 1997
Mercruiser	Model 7.4L MIE (LH) w/Hurth MK4	454cu in, 7.4L 8 cyl	1989, 1990, 1991, 1992
Mercruiser	Model 8.2L MIE (Gen V)	502cu in, 8.2L 8 cyl	1993, 1994, 1995, 1996
Mercruiser	Model 8.2L MIE w/Hurth	502cu in, 8.2L 8 cyl	1990, 1991, 1992
Mercruiser	Model 800SC (Gen V)	472cu in, 9.4L 8 cyl	1993, 1994, 1995, 1996, 1997, 1998
OMC	4.3L	262cu in, 4.3L 6 cyl	1996
OMC	5.0L	302cu in, 5.0L 8 cyl	1995, 1996
OMC	5.7L	350cu in, 5.7L 8 cyl	1996
OMC	5.8L	351cu in, 5.8L 8 cyl	1995, 1996
OMC	7.4L	454cu in, 7.4L 8 cyl	1995
OMC	7.4L	454cu in, 7.4L 8 cyl	1996
Volvo Penta	3.0GL	181cu in, 3.0L 4 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	3.0GS	181cu in, 3.0L 4 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	4.3Gi	262cu in, 4.3L 6 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	4.3GL	262cu in, 4.3L 6 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	4.3GS	262cu in, 4.3L 6 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.0Fi	302cu in, 5.0L 8 cyl	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.0FL	302cu in, 5.0L 8 cyl	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.7Gi	350cu in, 5.7L 8 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.7GL	350cu in, 5.7L 8 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.7GS	350cu in, 5.7L 8 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.7GSi	350cu in, 5.7L 8 cyl, Gas	1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	5.8Fi	351cu in, 5.8L 8 cyl, Gas	1993, 1994, 1995, 1996
Volvo Penta	5.8L	351cu in, 5.8L 8 cyl, Gas	1993, 1994, 1995, 1996
Volvo Penta	7.4GL	454cu in, 7.4L 8 cyl, Gas	1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta	8.2GL	502cu in, 8.2L 8 cyl, Gas	1994, 1995, 1996, 1997, 1998, 1999

Manufacturer Name	Manufacturer Part #
ARROWHEAD	400-46005, AMN0010
J&N	400-46024
JANNCO	400-46005R
LESTER	12174
MANDO	AC155616
MERCURY MARINE	807652, 807652T
VALEO	600118
VOLVO	3860769
