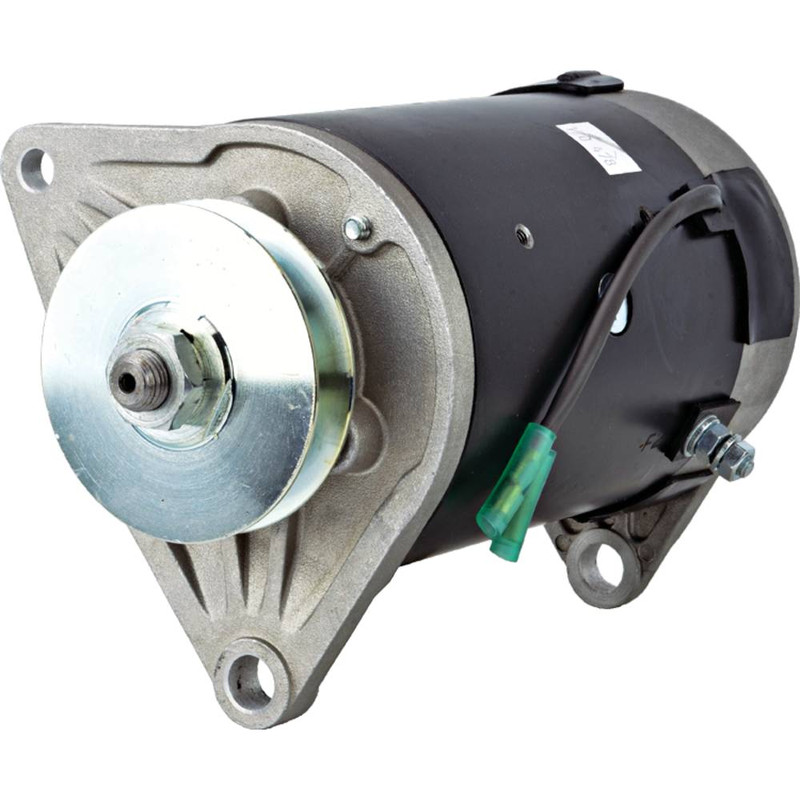

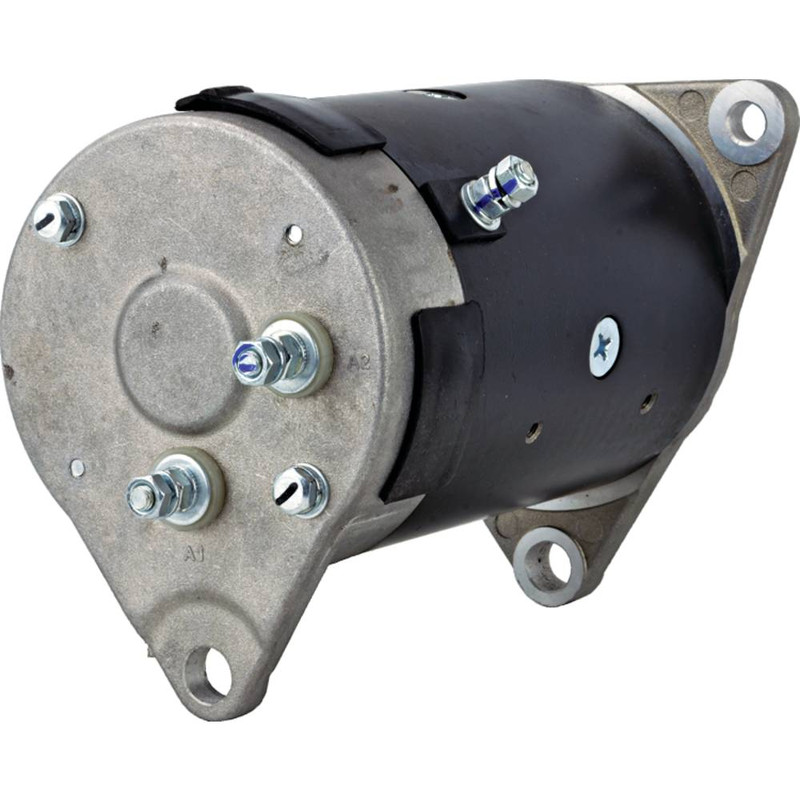

NEW Motor/Generator for YAMAHA G1A, G1A1-G1A3, G1AM3-G1AM6 & G3A Golf Carts; 420-44009, J10-81100-10-00, GSB107-02, GSB107-02B; LESTER 15424
$219.99 $248.59
Add’l Info: 5 Terminals
Specifications
| UNIT TYPE | Starter Generator |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMPS | 22 |
| ROTATION DIRECTION | Reversible |
| OD | 113 mm |
| OD | 4.449″ |
| SHAFT OD | 0.669″ |
| SHAFT OD | 17mm |
| LENGTH | 246 mm |
| LENGTH | 9.685″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| TERMINAL 4 SIZE | M6-1.0 |
| TERMINAL 5 SIZE | M6-1.0 |
| SHAFT | With Keyway |
| WARRANTY | 1 Year |
