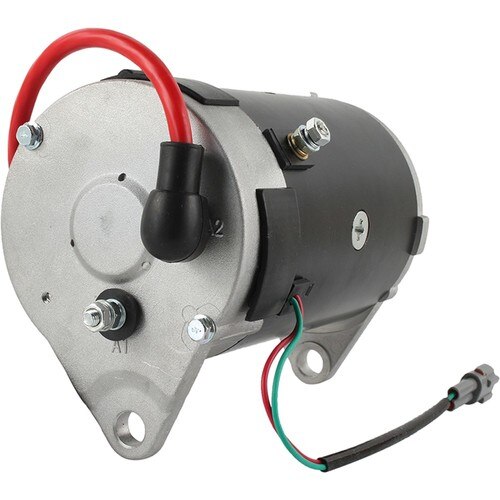

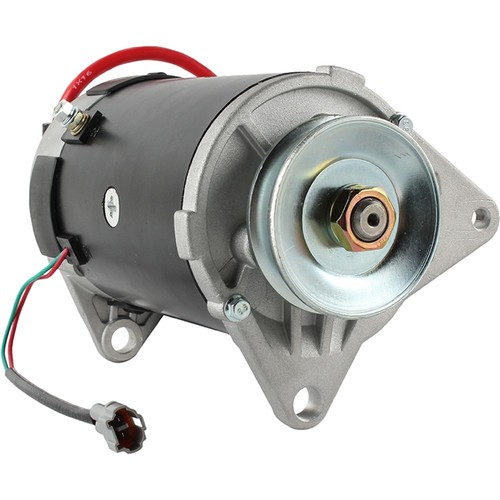

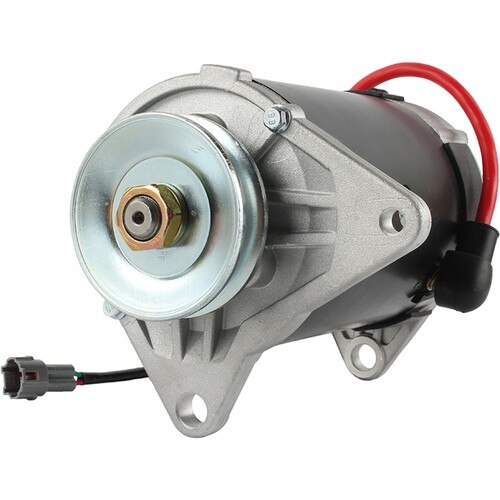

NEW Motor/Generator for YAMAHA Golf Carts & YAMAHA Utility Vehicles Applications; 420-44001, JN6H1100-02-00, GSB107-06, GSB107-06E, GSB107-06F; LESTER 15420, 15422
$269.48 $304.51
5 Terminals
Specifications
| UNIT TYPE | Motor Generator |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMPS | 15 |
| ROTATION DIRECTION | Reversible |
| OD | 113 mm |
| OD | 4.449″ |
| SHAFT OD | 0.669″ |
| SHAFT OD | 17mm |
| LENGTH | 221.400 mm |
| LENGTH | 8.717″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| TERMINAL 4 SIZE | M6-1.0 |
| TERMINAL 5 SIZE | M6-1.0 |
| SHAFT | Threaded With Keyway |
| WARRANTY | 1 Year |
