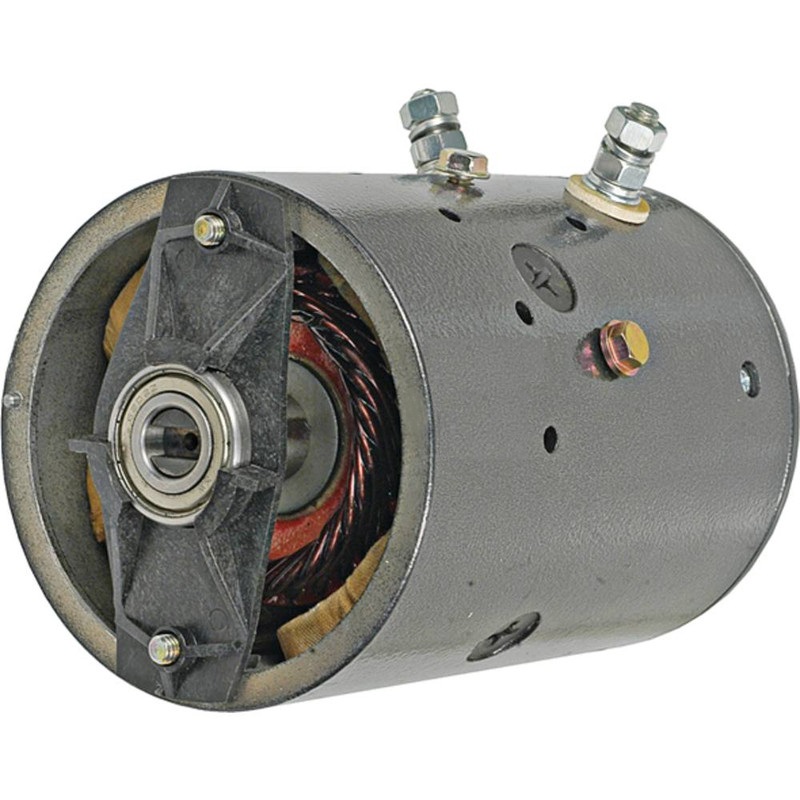

NEW Pump Motor for J.S. BARNES, MONARCH & MTE Hydraulics Applications; 430-22033, 8119, 39200295, [PRESTOLITE 46-2127, 46-2180, 46-2573, 46-2637, MUF7002, MUF7002S, …]; LESTER 10750
$189.99 $214.69
Specifications
| UNIT TYPE | Pump Motor |
| CURRENT TYPE | DC |
| VOLT | 24 |
| POWER | 2.600 kw |
| HP | 3.487 |
| AMPS | 120 |
| RPM | 2900 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.591″ |
| SHAFT OD | 15mm |
| LENGTH | 177.800 mm |
| LENGTH | 7″ |
| TERMINAL 2 SIZE | 5/16-18 |
| TERMINAL 3 SIZE | 5/16-18 |
| SHAFT | 1/4″ Slotted |
| WARRANTY | 1 Year |
| ADD’L INFO | Insulated Ground, Double Ball Bearing |
