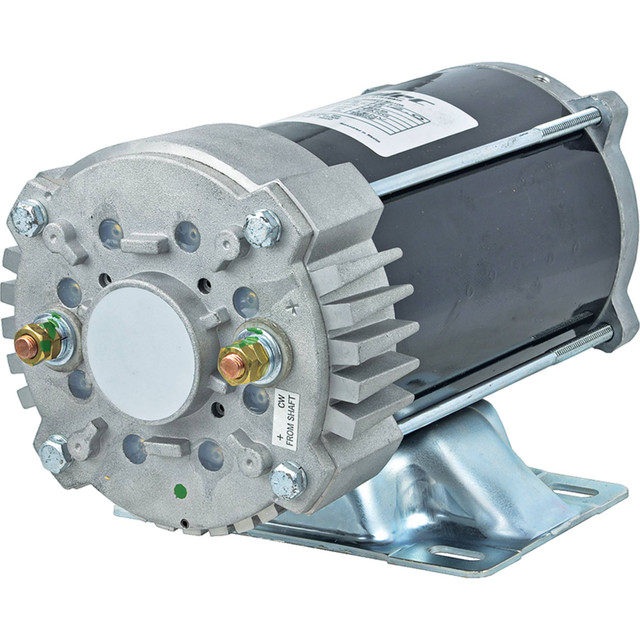

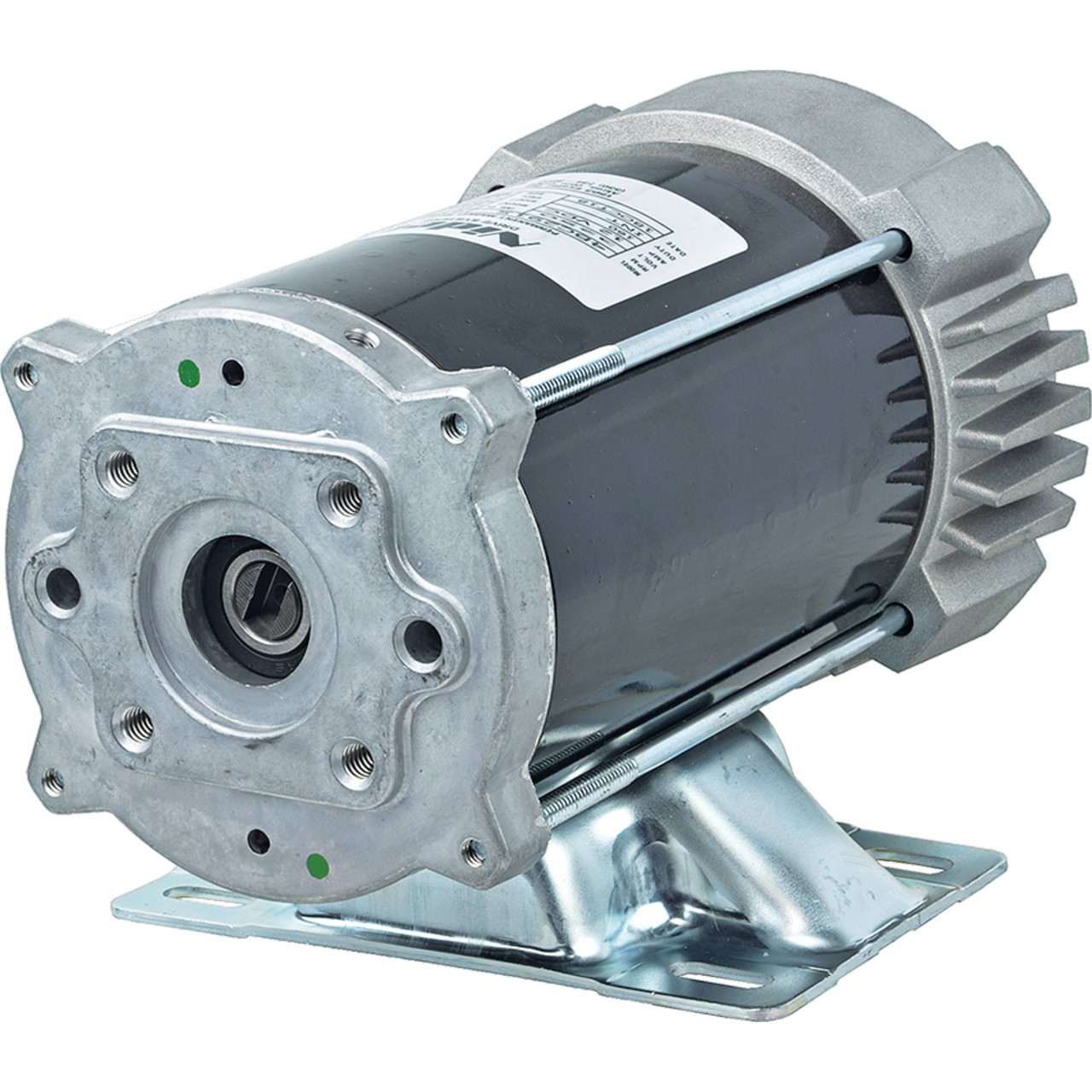

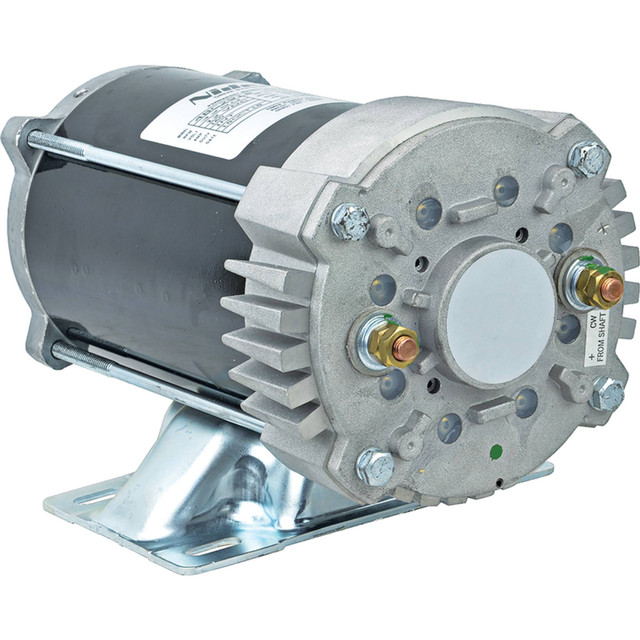

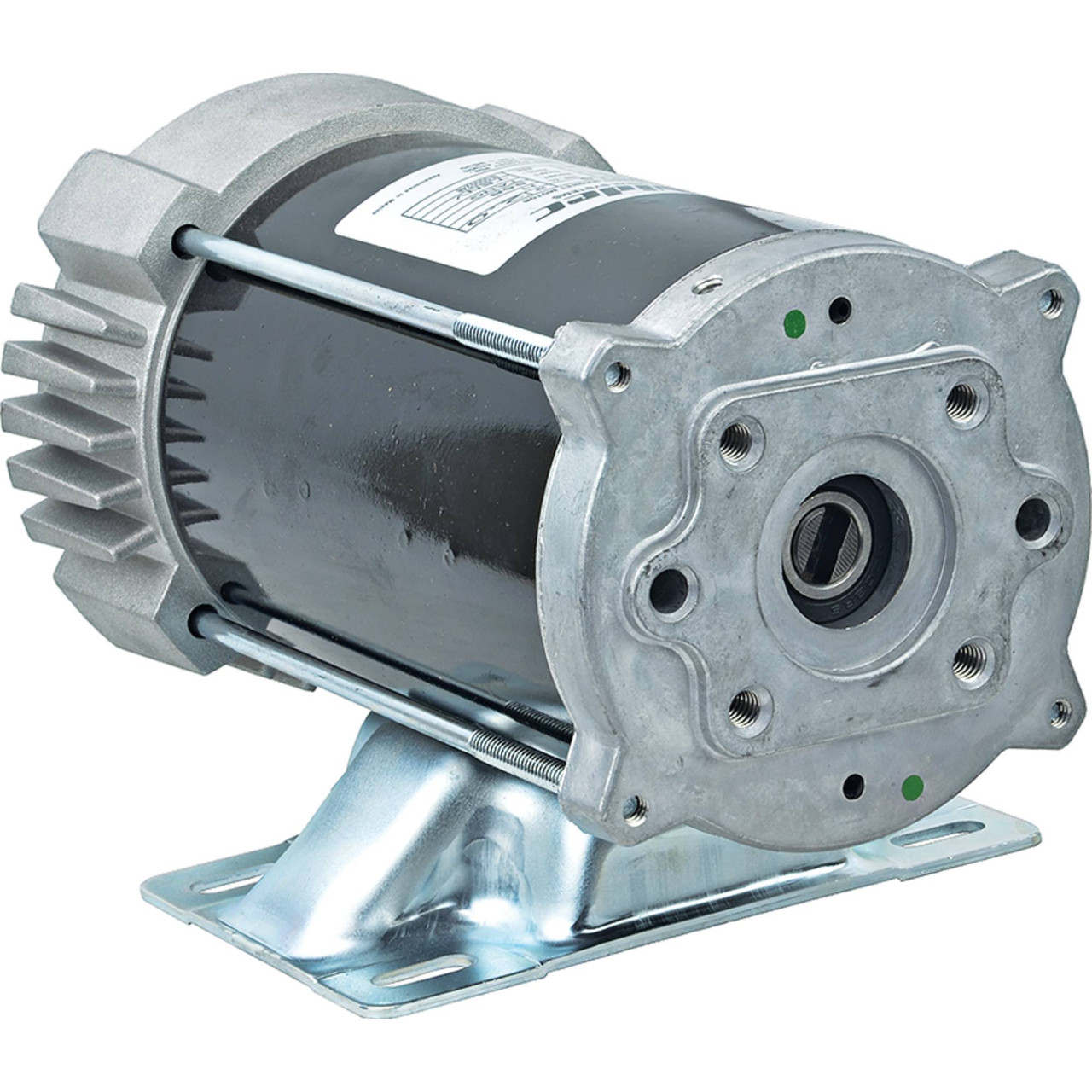

New SCOTT/IMPERIAL ELECTRIC Pump Motor; SCO-4BC2915KDM, 4BC02915, 4BC2915, 4BC2915KDM
$929.99
Specifications
| UNIT/PART TYPE |
Pump Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| POWER |
1.490 kw |
| HP |
1.998 |
| AMPS |
160 |
| RPM |
3250 |
| ROTATION DIRECTION |
Reversible |
| OD |
116.400 mm |
| OD |
4.583″ |
| LENGTH |
233.500 mm |
| LENGTH |
9.193″ |
| TERMINAL 2 SIZE |
5/16-24 |
| TERMINAL 3 SIZE |
5/16-24 |
| SHAFT |
Slotted |
| FIELD TYPE |
Permanent Magnet |
| WARRANTY |
1 Year |
|
(4) 5/16-18 Threaded Attaching Holes on DE Housing, (2) 1/4-20 Threaded Solenoid Mounting Holes |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
4BC2915KDM |
| SCOTT/IMPERIAL ELECTRIC |
4BC02915, 4BC2915, 4BC2915KDM |
