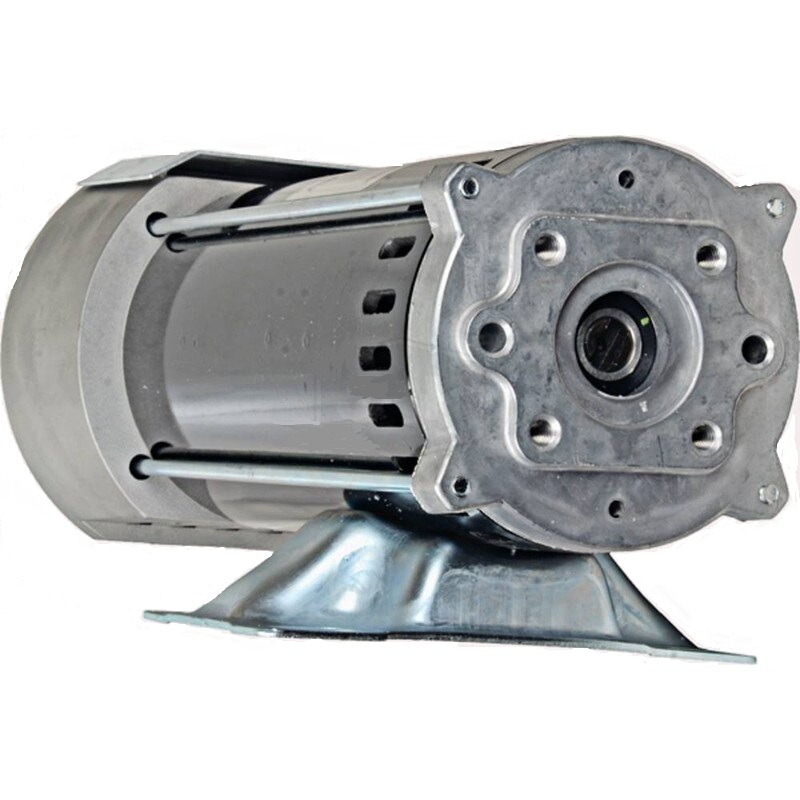

New SCOTT/IMPERIAL ELECTRIC Reel Motor; SCO-4BB1367, 4BD00355, 4BD0355, 430-22050
$956.37 $1,080.70
Available on backorder
Specifications
| Unit Type | Reel Motor |
| Current Type | DC |
| Field Type | Permanent Magnet |
| Rotation Direction | Clockwise |
| Volt | 24 |
| Power | 2.985 kw |
| HP | 4.003 |
| Amps | 150 |
| RPM | 3600 |
| OD | 152.400 mm |
| OD | 6″ |
| Shaft OD | 0.587″ |
| Shaft OD | 14.900mm |
| Length | 13.500″ |
| Length | 342.900 mm |
| Terminal 2 Size | 5/16-24 |
| Terminal 3 Size | 5/16-24 |
| Shaft | 6.35mm Slotted |
| Warranty | 1 Year |
| (4) 5/16-18 Threaded Holes in DE Housing |
