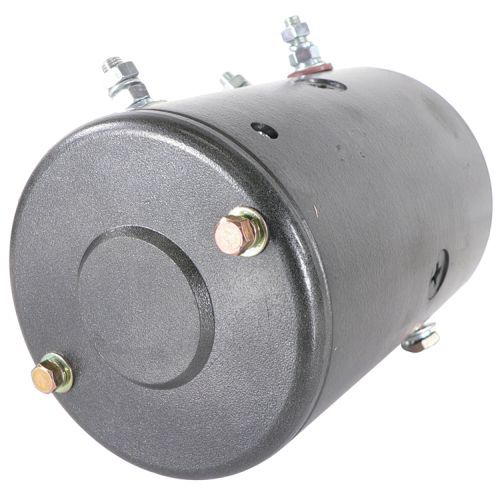

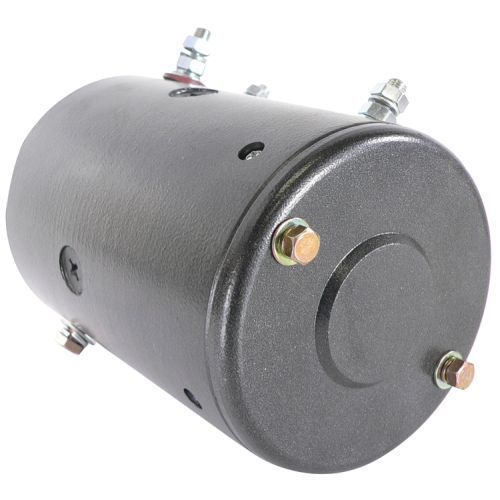

NEW Winch Motor for RAMSEY, TULSA, LIFTMORE PIERCE SALES Applications; 430-20074, 0130450047, 0-130-450-047; LESTER 10746DBB
$189.99
INFO: DOUBLE BALL BEARING
SEARCH: w/DE FRAME ATTACHED | wo/OVERLOAD DEVICE | 4.8HP VERSION
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 114 mm |
| OD | 4.488″ |
| SHAFT OD | 0.665″ |
| SHAFT OD | 16.900mm |
| LENGTH | 221 mm |
| LENGTH | 8.701″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | 20 Straight Splines |
| NUMBER OF FIELDS | 4 |
| WARRANTY | 1 Year |
| ADD’L INFO | 152.4mm (6″) Long Field Case, Double Ball Bearing
USED ON: RAMSEY, TULSA, LIFTMORE PIERCE SALES |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LPL0084 |
| J & N | 430-20074 |
| LESTER | 10746DBB |
| BOSCH | 0130450047, 0-130-450-047 |
| WAI | 10746N-DB |
| WAI | 82-6867-1 |
| WAI (OLD) | 82-6867-1 |
| WESTERN MOTORS | W-8923D |
