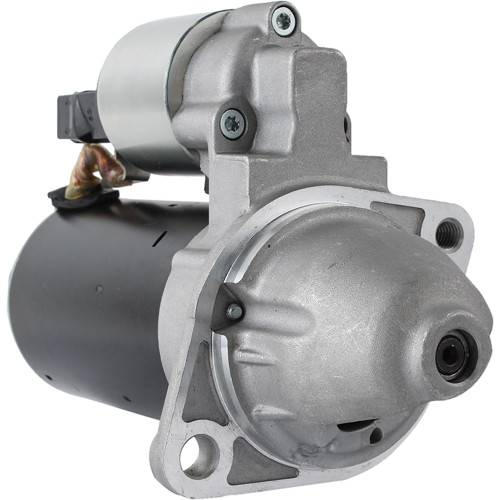

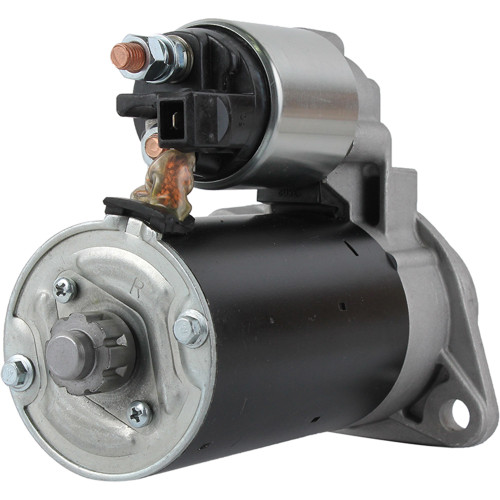

NEW Starter c/w START-STOP System used on BMW Auto & Light Trucks; 410-24269, 0001147424, 0001147425, SR0861X, [BMW 12-41-8-612-576, 12-41-8-614-519]; LESTER 19308
$229.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Planetary Gear Reduction (PLGR) |
| CRITICAL NOTE | This Is A 9T Replacement For The Original 11T Unit! |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.106″ |
| GEAR OD | 28.100mm |
| LENGTH | 167 mm |
| LENGTH | 6.575″ |
| MOUNT HOLE ID 1 | M10x1.50 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| REGISTRY OD | 2.992″ |
| REGISTRY OD | 76mm |
| WARRANTY | 1 Year |
| ADD’L INFO | 105mm Mounting Hole Center To Center |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SBO0331 |
| BMW | 12-41-8-612-576, 12-41-8-614-519 |
| BOSCH | 0001147424, 0-001-147-424, 0001147425, 0-001-147-425, SR0861X |
| J&N ELECTRICAL PRODUCTS | 410-24269 |
| LESTER | 19308 |
| LUCAS ELECTRIC | LRS04002 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| BMW | 228i xDrive | 2.0L N2 | 2015, 2016 |
| BMW | 228i | 2.0L N2 | 2014, 2015, 2016 |
| BMW | 320i xDrive | 2.0L N2 | 2014, 2015, 2016, 2017, 2018 |
| BMW | 320i xDrive | 1997cc, 2.0L/121CI L4 | 2013, 2014 |
| BMW | 320i | 2.0L N2 | 2014, 2015, 2016, 2017, 2018 |
| BMW | 320i | 1997cc, 2.0L/121CI L4 | 2013, 2014 |
| BMW | 328i GT xDrive | 2.0L N2 | 2014, 2015, 2016 |
| BMW | 328i GT xDrive | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | 328i xDrive | 2.0L N2 | 2012, 2013, 2014, 2015, 2016 |
| BMW | 328i xDrive | 1997cc, 2.0L/121CI L4 N26B20A | 2013, 2014 |
| BMW | 328i | 2.0L N2 | 2012, 2013, 2014, 2015, 2016 |
| BMW | 328i | 1997cc, 2.0L/121CI L4 | 2012, 2013, 2014 |
| BMW | 428i Gran Coupe | 2.0L N2 | 2015, 2016 |
| BMW | 428i xDrive Gran Coupe | 2.0L N2 | 2015, 2016 |
| BMW | 428i xDrive | 2.0L N2 | 2014, 2015, 2016 |
| BMW | 428i xDrive | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | 428i | 2.0L N2 | 2014, 2015, 2016 |
| BMW | 428i | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | 528i xDrive | 2.0L N2 | 2013, 2014, 2015, 2016 |
| BMW | 528i xDrive | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | 528i | 2.0L N2 | 2013, 2014, 2015, 2016 |
| BMW | 528i | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | X1 sDrive28i | 2.0L N2 | 2013, 2014 |
| BMW | X1 sDrive28i | 2.0L N2 | 2015 |
| BMW | X1 xDrive28i | 2.0L N2 | 2010, 2011, 2012, 2013, 2014 |
| BMW | X1 xDrive28i | 2.0L N2 | 2015 |
| BMW | X1 xDrive28i | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | X3 sDrive28i | 2.0L N2 | 2015, 2016, 2017 |
| BMW | X3 xDrive28i | 2.0L N2 | 2013 |
| BMW | X3 xDrive28i | 2.0L N2 | 2014, 2015, 2016, 2017 |
| BMW | X3 | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | X4 xDrive28i | 2.0L N2 | 2014, 2015, 2016, 2017 |
| BMW | Z4 sDrive28i | 2.0L N20 | 2013, 2014, 2015, 2016 |
| BMW | Z4 | 1997cc, 2.0L/121CI L4 | 2014 |
