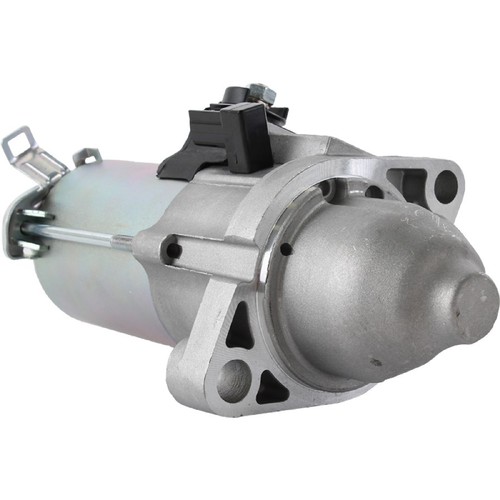

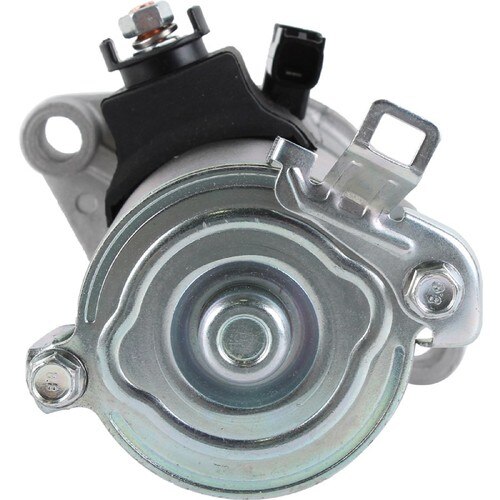

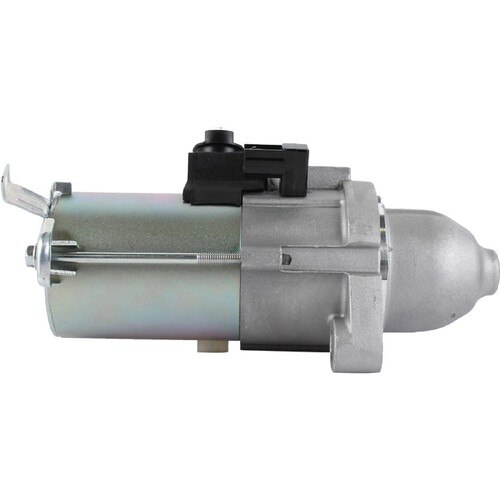

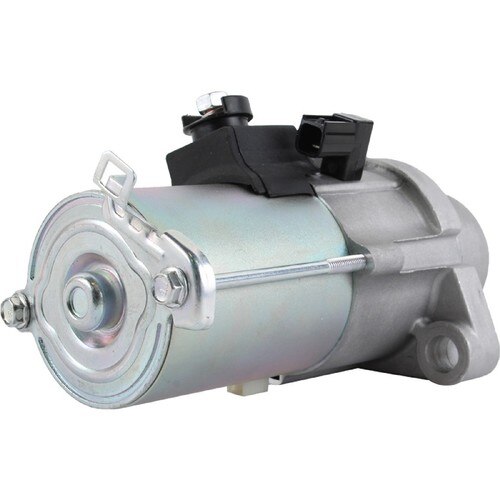

NEW Starter for ACURA & HONDA Applications; 410-54228, SM710-07, SM730-01, SM730-02, 31200-R40-A01, 31200R41L01; LESTER 17954, 19009, 19082
$174.99 $197.74
Specifications
| UNIT TYPE | Starter |
| FAMILY | Mitsuba SM7 |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| VOLT | 12 |
| POWER | 1.600 kw |
| HP | 3:30 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.130″ |
| GEAR OD | 28.700mm |
| LENGTH | 179.200 mm |
| LENGTH | 7.055″ |
| MOUNT HOLE ID 1 | 10.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 114.400mm |
| MOUNTING EAR DISTANCE 1 | 4.504″ |
| REGISTRY OD | 2.945″ |
| REGISTRY OD | 74.800mm |
| WARRANTY | 1 Year |
| M8-1.25 B+ Terminal, Spade S Terminal |
