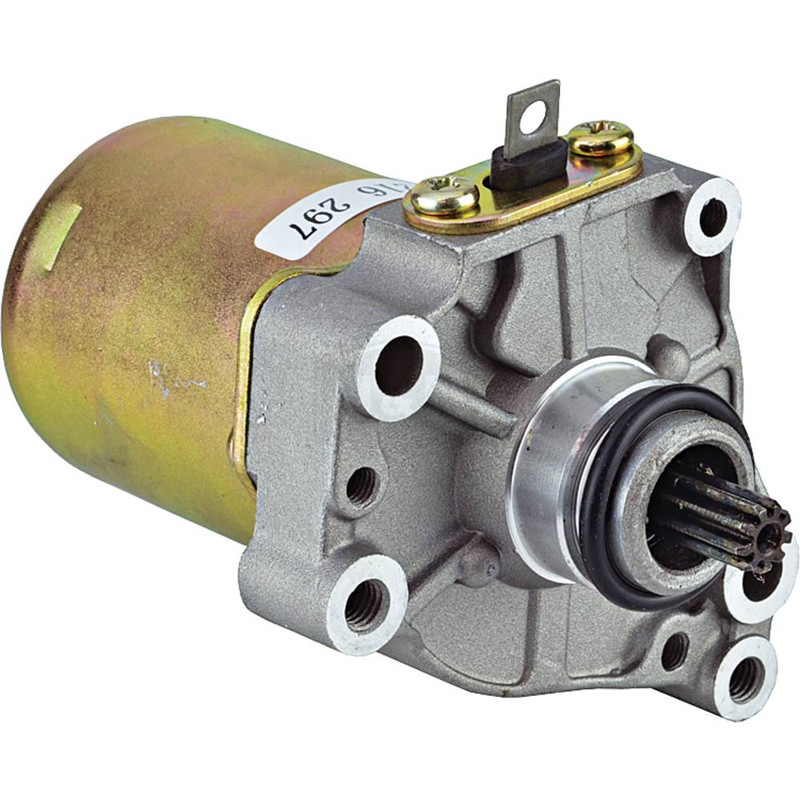

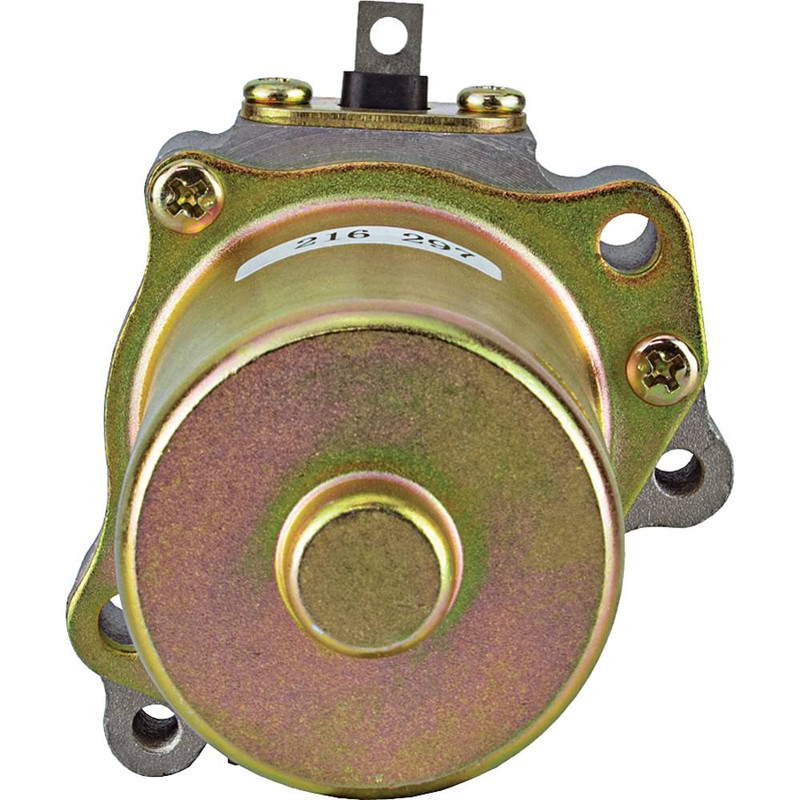

NEW Starter for APRILIA Classic 125, RS 125 & Tuono 125 Motorcycles; 410-58077, AP0294800, AP0294802, SM5289, 294800, 294801; LESTER 19628
$99.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Direct Drive (DD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.339″ |
| GEAR OD |
8.600mm |
| LENGTH |
125 mm |
| LENGTH |
4.921″ |
| MOUNT HOLE ID 1 |
6.900mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 2 |
2.787″ |
| MOUNTING EAR DISTANCE 2 |
70.800mm |
| REGISTRY OD |
1.016″ |
| REGISTRY OD |
25.800mm |
|
(2) Additional M6-1.0 Threaded Mounting Holes |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| APRILIA |
AP0294800, AP0294802 |
| ARROWHEAD |
SCH0040 |
| HI LEVEL |
219120 |
| J&N ELECTRICAL PRODUCTS |
410-58077 |
| LESTER |
19628 |
| MITSUBA |
SM5289 |
| ROTAX |
294800, 294801 |
| SOCIETA GENERALE RICAMBI |
17.8169, 17.81697 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Aprilia |
Classic 125 |
125cc |
1995, 1996, 1997, 1998, 1999, 2000 |
| Aprilia |
RS 125 |
125cc |
1995, 1996, 1997, 1998 , 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Aprilia |
Tuono 125 |
125cc |
2003, 2004 |
