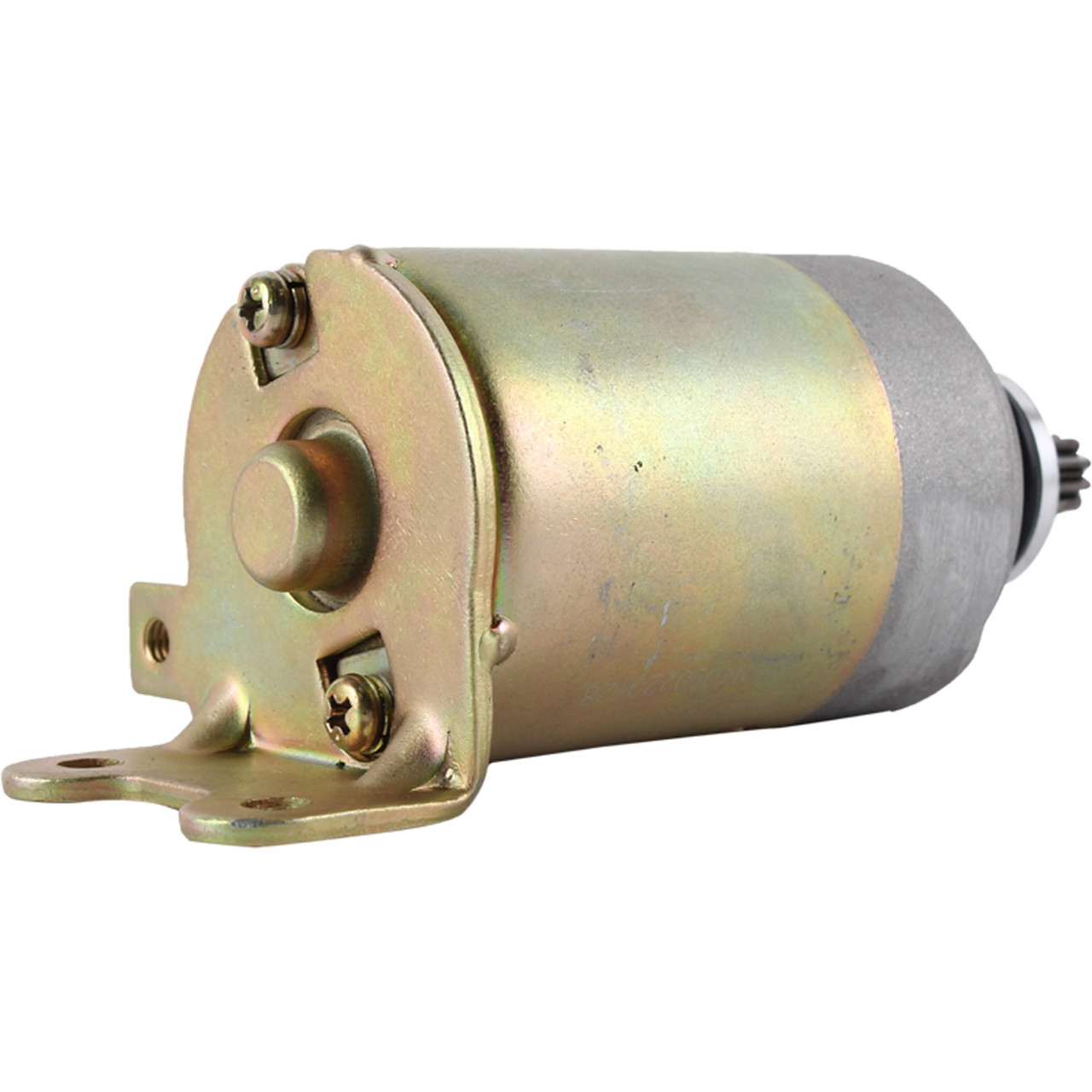

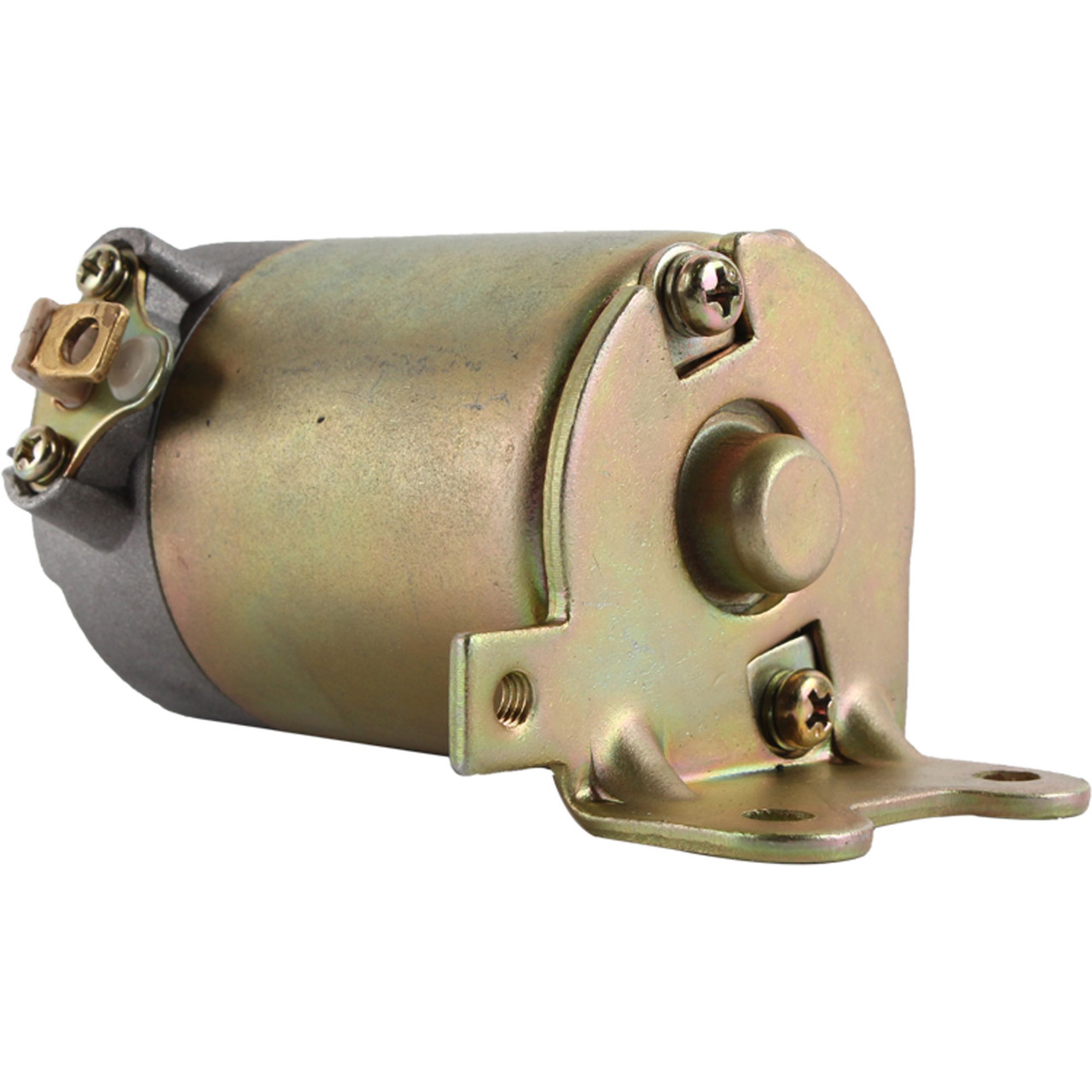

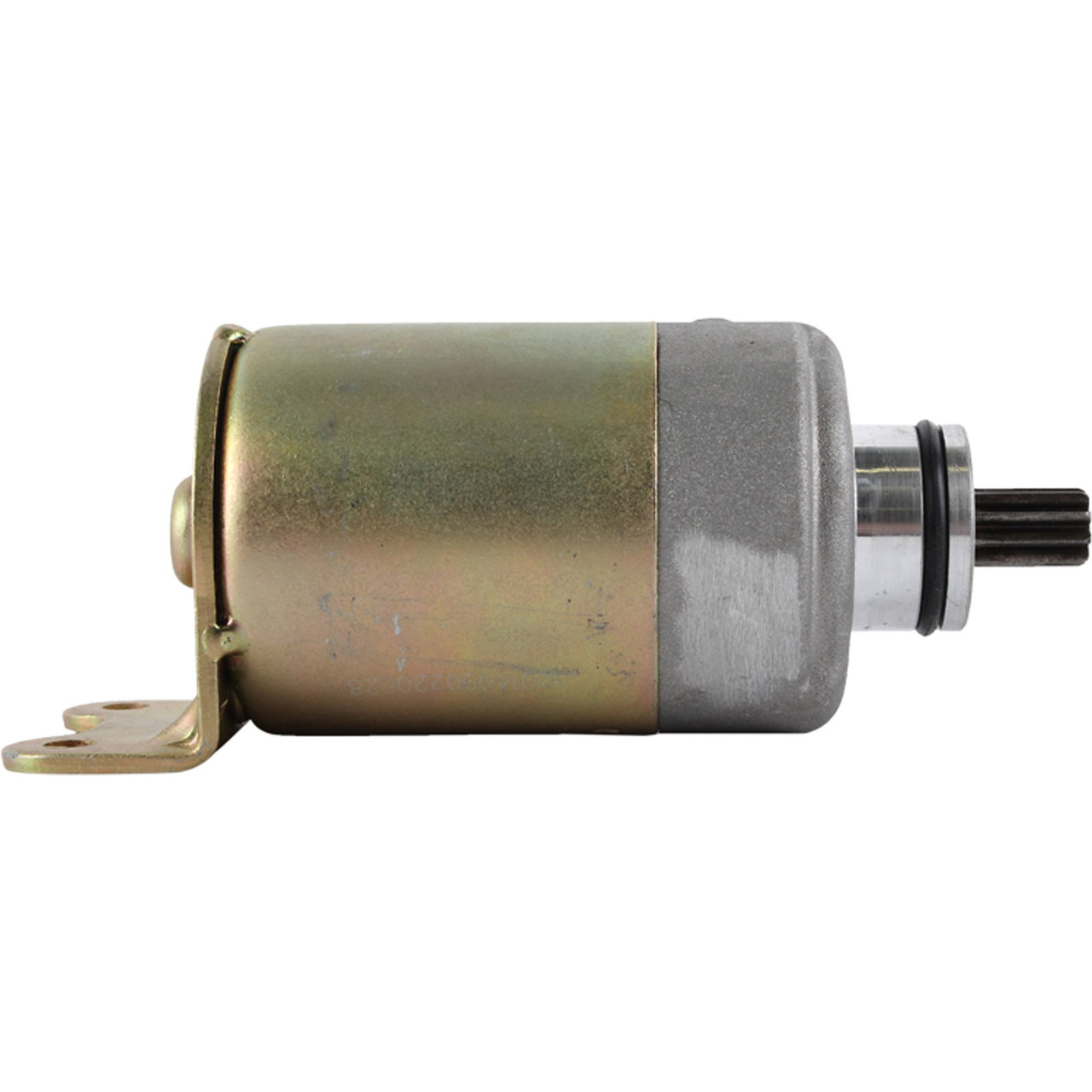

NEW Starter for APRILIA Habana 125 & Mojito 125 Scooters; 410-54176, AP8550442, SM11-221, 800093633, 294736
$104.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.449″ |
| GEAR OD | 11.400mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| 5mm Unthreaded Tab for Battery Connection, Mounting Holes in CE Frame |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| APRILIA | AP8550442 |
| ARROWHEAD | SCH0095 |
| CAGIVA | 800093633 |
| HI LEVEL | STA0095 |
| J&N ELECTRICAL PRODUCTS | 410-54176 |
| MITSUBA | SM11-221 |
| OTHER OEMS | 294736 |
| PIAGGIO | 294736 |
| SOCIETA GENERALE RICAMBI | 17.8175, 17.81757 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Aprilia | Habana 125 | 125cc | 1999, 2000, 2001, 2002 |
| Aprilia | Mojito 125 | 125cc | 1999, 2000, 2001, 2002 |
