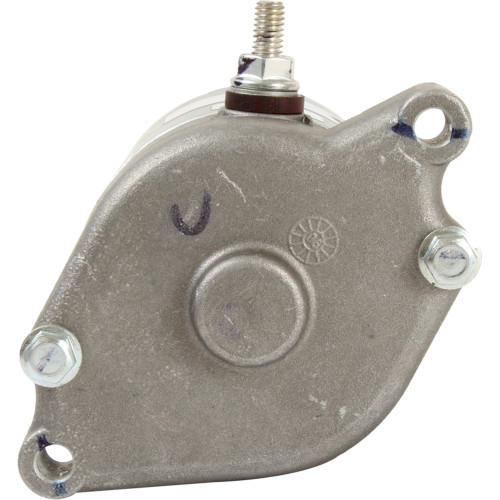

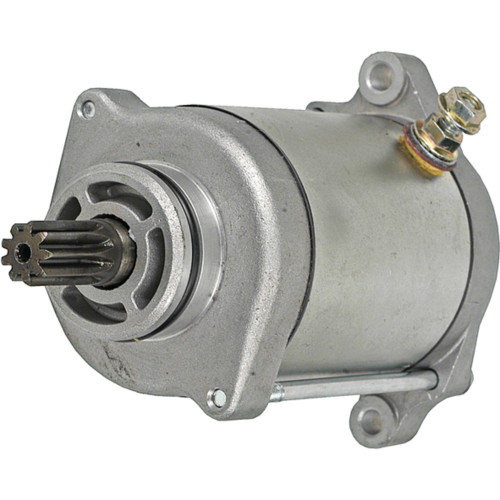

NEW Starter for ARCTIC CAT & MASSEY FERGUSON 400, 500 & 650| SUZUKI LT-A 500 & LT-R 450 All-Terrain Vehicle (ATV); 410-54062, 0825-001, 0825-012, 0825-014, 3545-012, 3545-015, [MITSUBA SM13487, SM13511]; LESTER 18796
$119.99
Specifications
| UNIT TYPE | Starter, Mitsuba SM13 |
| TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.559″/14.200mm |
| MOUNT HOLE 1 ID | 6mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARCTIC CAT | 0825-001, 0825-012, 0825-014, 3545-012, 3545-015 |
| ARROWHEAD | SMU0299 |
| LESTER | 18796 |
| LUCAS TVS | AK0825-014 |
| MITSUBA | SM13487, SM13511 |
| OTHER OEMS | 260-24-567 |
| SUZUKI | 31100-44D10, 31100-44D20, 31100-44D21 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Arctic Cat | 400 2×4 | 1998, 1999, 2000, 2001, 2002 | |
| Arctic Cat | 400 4×4 | 1998, 1999, 2000, 2001, 2002 | |
| Arctic Cat | 500 4×4 Auto LTD | 2001, 2005, 2006 | |
| Arctic Cat | 500 4×4 Auto | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 | |
| Arctic Cat | 500 4×4 Manual | 2001, 2002 , 2003, 2004, 2005, 2006, 2007 ,2008, 2009 | |
| Arctic Cat | 500 4×4 | 2002, 2003, 2004, 2005, 2006, 2007 | |
| Arctic Cat | 500 FIS | 2002, 2003, 2004, 2005, 2006, 2007, 2008 | |
| Arctic Cat | 500 TBX 4×4 | 2002, 2003, 2004, 2005, 2006 | |
| Arctic Cat | 500 TRV 4×4 Auto | 2004, 2005, 2006, 2007, 2008 | |
| Arctic Cat | 500 TRV | 2003, 2004, 2005, 2006, 2007, 2008 | |
| Arctic Cat | 650 4×4 Auto V2 | 2006 | |
| Arctic Cat | 650 4×4 Auto | 2007 | |
| Arctic Cat | 650 H1 4×4 FIS | 2007 | |
| Arctic Cat | 650 H1 4×4 SE | 2006 | |
| Arctic Cat | 650 H1 4×4 | 2005, 2006, 2007 | |
| Arctic Cat | 650 H1 TBX | 2007 | |
| Arctic Cat | 650 TRV | 2007 | |
| Arctic Cat | Prowler 650 XT | 2006, 2007 | |
| Arctic Cat | Prowler 650 | 2006, 2007 | |
| Massey Ferguson | 400 4×4 | 2000, 2001, 2002 | |
| Massey Ferguson | 500 4×4 | 2002, 2003, 2004, 2005, 2006, 2007 | |
| Massey Ferguson | 650 4×4 | 2005, 2006, 2007 | |
| Suzuki | DR 650 SE (Motorcycles -Off-Road ) | 1998, 1999 | |
| Suzuki | LT-A 500 F QuadMaster 4×4 Auto | 2000, 2001 | |
| Suzuki | LT-A 500 F Vinson 4×4 Auto | 2002, 2003, 2004, 2005, 2006, 2007 | |
| Suzuki | LT-F 500 F QuadRunner 4×4 Manual | 2000, 2001, 2002 | |
| Suzuki | LT-F 500 F Vinson 4×4 Manual | 2003, 2004, 2005, 2006, 2007 | |
| Suzuki | LT-R 450 | 1998, 1999, 2000, 2001, 2002 |
