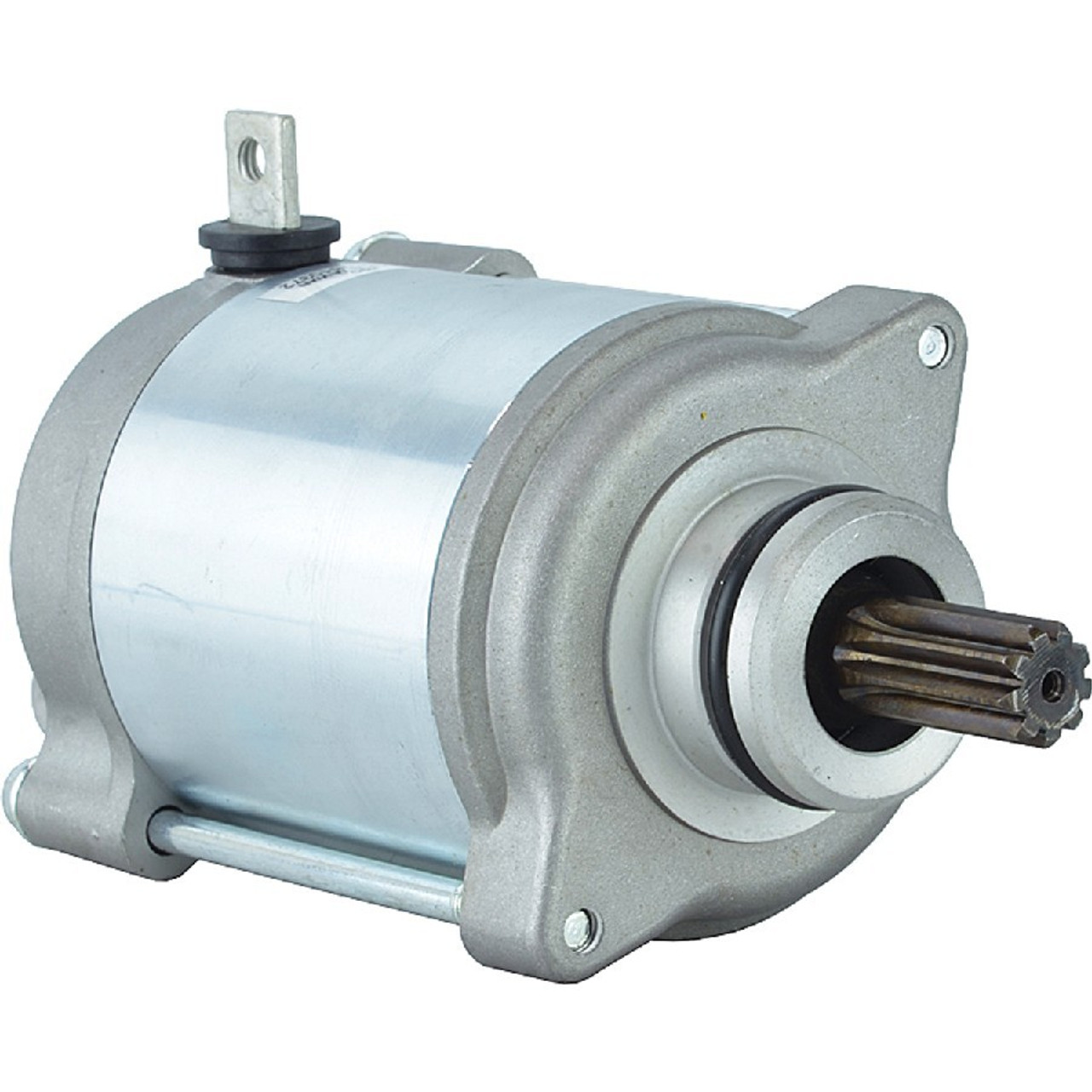

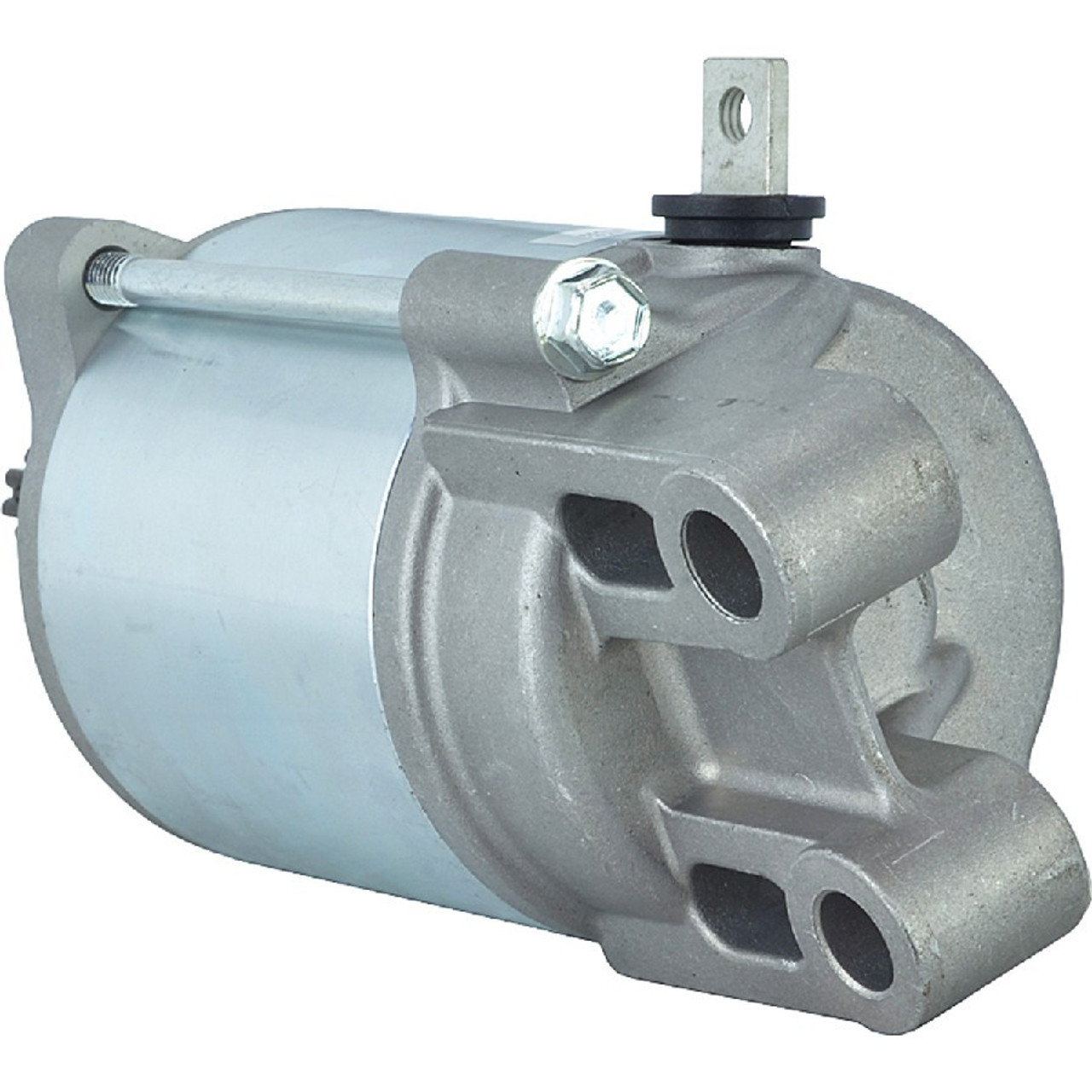

NEW Starter for ARCTIC CAT Various Models Snowmobiles; 410-52541, 3007-219, 428000-2270, 428000-2271, 31100-49X00
$138.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.457″ |
| GEAR OD |
11.600mm |
| LENGTH |
123.500 mm |
| LENGTH |
4.862″ |
| MOUNT HOLE ID 1 |
8.300mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
1.321″ |
| MOUNTING EAR DISTANCE 1 |
33.550mm |
| REGISTRY OD |
1.181″ |
| REGISTRY OD |
30mm |
| WARRANTY |
1 Year |
| ADD’L INFO |
M5 Threaded B+ Tab |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARCTIC CAT |
3007-219 |
| ARROWHEAD |
410-52541, SND0612 |
| DENSO |
428000-2270, 428000-2271 |
| SUZUKI |
31100-49X00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Arctic Cat |
Bearcat 5000 XT GS |
1050cc |
2015 |
| Arctic Cat |
Bearcat 5000 XT LTD |
1050cc |
2015 |
| Arctic Cat |
Bearcat 5000 XT |
1050cc |
2015 |
| Arctic Cat |
Bearcat Z1 XT GS |
1050cc |
2012, 2013, 2014 |
| Arctic Cat |
Bearcat Z1 XT LTD |
1050cc |
2011, 2012, 2013, 2014 |
| Arctic Cat |
Bearcat Z1 XT |
1050cc |
2009, 2010, 2011, 2012, 2013, 2014 |
| Arctic Cat |
F 1100 LXR |
|
2012, 2013 |
| Arctic Cat |
F 1100 Sno Pro LTD |
|
2012, 2013 |
| Arctic Cat |
F 1100 Sno Pro |
|
2012, 2013 |
| Arctic Cat |
F 1100 Turbo LXR |
|
2012, 2013 |
| Arctic Cat |
F 1100 Turbo Sno Pro LTD |
|
2012, 2013 |
| Arctic Cat |
F 1100 Turbo Sno Pro RR |
|
2013 |
| Arctic Cat |
F 1100 Turbo Sno Pro |
|
2012, 2013 |
| Arctic Cat |
Jaguar Z1 1100 EFI |
|
2007, 2008 |
| Arctic Cat |
M 1100 Sno Pro Anniversary |
|
2012 |
| Arctic Cat |
M 1100 Sno Pro LTD |
|
2012 |
| Arctic Cat |
M 1100 Sno Pro |
|
2012 |
| Arctic Cat |
M 1100 Turbo HCR |
|
2012, 2013 |
| Arctic Cat |
M 1100 Turbo Sno Pro Anniversary |
|
2012 |
| Arctic Cat |
M 1100 Turbo Sno Pro LTD |
|
2012, 2013 |
| Arctic Cat |
M 1100 Turbo Sno Pro |
|
2012, 2013 |
| Arctic Cat |
M 1100 Turbo |
|
2012, 2013 |
| Arctic Cat |
M 1100 |
|
2012, 2013 |
| Arctic Cat |
M 9000 HCR |
1050cc |
2014, 2015 |
| Arctic Cat |
M 9000 LTD |
1050cc |
2016 |
| Arctic Cat |
M 9000 Sno Pro LTD |
1050cc |
2014, 2015 |
| Arctic Cat |
M 9000 Sno Pro |
1050cc |
2014, 2016 |
| Arctic Cat |
M 9000 |
1050cc |
2014 |
| Arctic Cat |
TZ1 LXR LTD |
1050cc |
2011 |
| Arctic Cat |
TZ1 LXR |
1050cc |
2012, 2013, 2014 |
| Arctic Cat |
TZ1 Park |
1050cc |
2009 |
| Arctic Cat |
TZ1 Touring LXR |
1050cc |
2008, 2009, 2010 |
| Arctic Cat |
TZ1 Touring |
1050cc |
2008, 2009, 2010, 2011 |
| Arctic Cat |
TZ1 Turbo LXR LTD |
1050cc |
2009, 2010, 2011, 2012 |
| Arctic Cat |
TZ1 Turbo LXR |
1050cc |
2009, 2010, 2013 |
| Arctic Cat |
TZ1 |
1050cc |
2012, 2013, 2014 |
| Arctic Cat |
XF 1100 Cross Tour |
|
2013 |
| Arctic Cat |
XF 1100 LXR |
|
2012, 2013 |
| Arctic Cat |
XF 1100 Sno Pro LTD |
|
2012, 2013 |
| Arctic Cat |
XF 1100 Sno Pro |
|
2012, 2013 |
| Arctic Cat |
XF 1100 Turbo Cross Tour |
|
2013 |
| Arctic Cat |
XF 1100 Turbo LXR |
|
2012, 2013 |
| Arctic Cat |
XF 1100 Turbo Sno Pro LTD |
|
2012, 2013 |
| Arctic Cat |
XF 1100 Turbo Sno Pro |
|
2012, 2013 |
| Arctic Cat |
XF 9000 Cross Country LTD |
1050cc |
2015 |
| Arctic Cat |
XF 9000 Cross Tour |
1050cc |
2014, 2015 |
| Arctic Cat |
XF 9000 Crosstrek |
1050cc |
2016 |
| Arctic Cat |
XF 9000 High Country LTD |
1050cc |
2014, 2015, 2016 |
| Arctic Cat |
XF 9000 High Country |
1050cc |
2014 |
| Arctic Cat |
XF 9000 LXR |
1050cc |
2014, 2015 |
| Arctic Cat |
XF 9000 Sno Pro CC |
1050cc |
2014 |
| Arctic Cat |
XF 9000 Sno Pro LTD |
1050cc |
2014, 2015 |
| Arctic Cat |
XF 9000 Sno Pro |
1050cc |
2014, 2015 |
| Arctic Cat |
Z1 1100 EFI LXR |
|
2009, 2010 |
| Arctic Cat |
Z1 1100 EFI |
|
2009, 2010 |
| Arctic Cat |
Z1 Bearcat XT |
1050cc |
2009, 2010 |
| Arctic Cat |
Z1 LXR |
1100cc |
2011 |
| Arctic Cat |
Z1 Sno Pro |
1050cc |
2011 |
| Arctic Cat |
Z1 Turbo EXT |
1100cc |
2010, 2011 |
| Arctic Cat |
Z1 Turbo LXR LTD |
1050cc |
2010, 2011 |
| Arctic Cat |
Z1 Turbo LXR LTD |
1100cc |
2009 |
| Arctic Cat |
Z1 Turbo LXR |
1100cc |
2009, 2010, 2011 |
| Arctic Cat |
Z1 Turbo Sno Pro |
1100cc |
2009, 2010, 2011 |
| Arctic Cat |
Z1 Turbo |
1100cc |
2009, 2010 |
| Arctic Cat |
ZR 5000 LXR |
1050cc |
2014, 2015, 2016, 2017 |
| Arctic Cat |
ZR 9000 El Tigre |
1050cc |
2015 |
| Arctic Cat |
ZR 9000 LTD ET |
1050cc |
2016 |
| Arctic Cat |
ZR 9000 LTD |
1050cc |
2016 |
| Arctic Cat |
ZR 9000 LXR |
1050cc |
2014, 2015, 2016 |
| Arctic Cat |
ZR 9000 RR |
1050cc |
2016 |
| Arctic Cat |
ZR 9000 Sno Pro LTD |
1050cc |
2014, 2015 |
| Arctic Cat |
ZR 9000 Sno Pro RR |
1050cc |
2014, 2015 |
| Arctic Cat |
ZR 9000 Sno Pro |
1050cc |
2014, 2015, 2016 |
