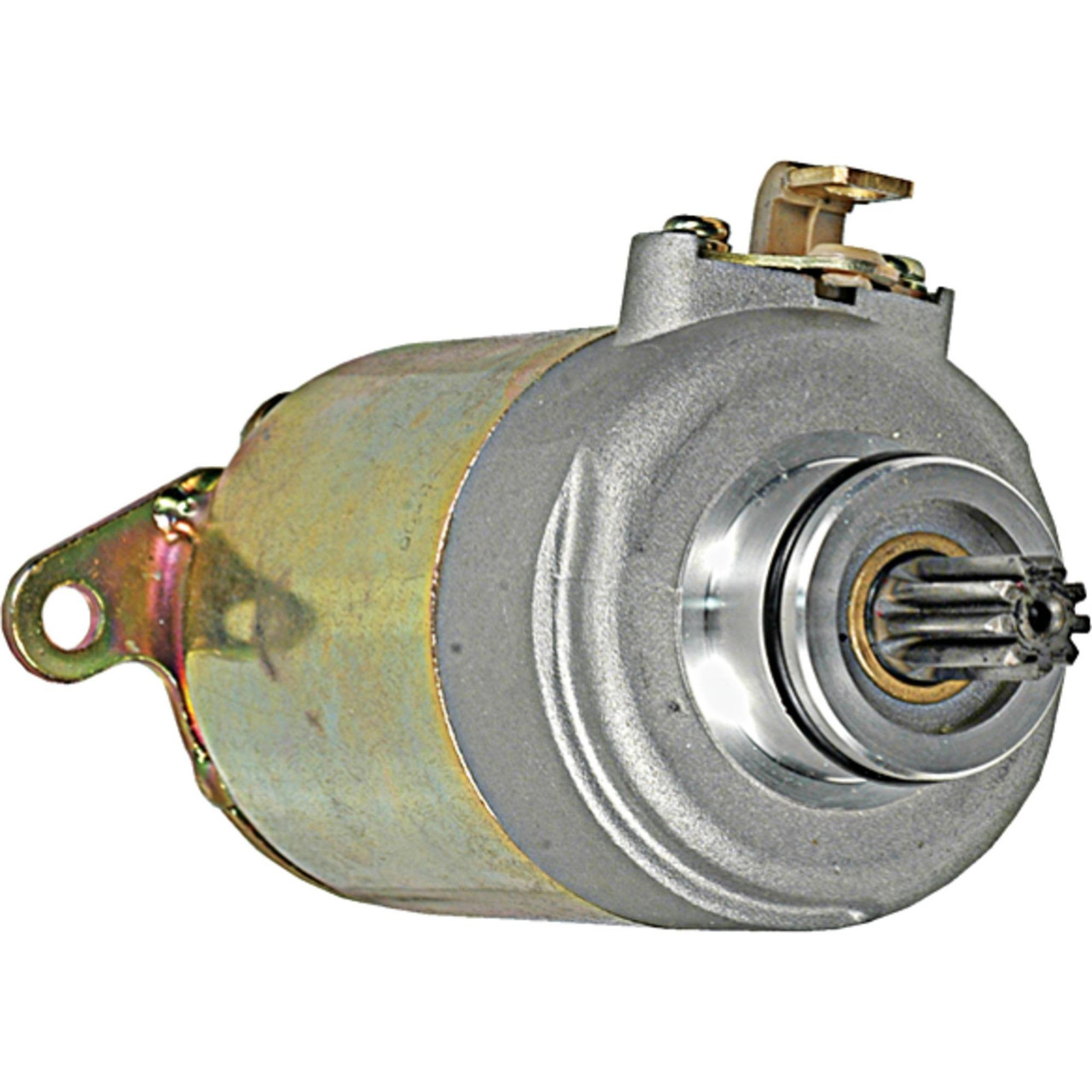

NEW Starter for BAJA, GO SCOOT, JETMOTO & MAXAM ATV’s; 410-58005, STZ0004, 49-5783; LESTER 19574
$69.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.449″ |
| GEAR OD | 11.400mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| ADD’L INFO | 5mm Unthreaded Tab for Battery Connection, Mounting Holes in CE Frame |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0004 |
| HI LEVEL | STZ0004 |
| J&N ELECTRICAL PRODUCTS | 410-58005 |
| LESTER | 19574 |
| TUCKER ROCKY | 49-5783 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Baja | BA 150 Baja | 150cc | All |
| Go Scoot | Dingo 150 | 150cc | All |
| Go Scoot | Falcon 150 | 150cc | All |
| Jet Moto | ATV 150 | 150cc | All |
| Maxam | MX 150 LE | 147cc | All |
| Maxam | MX 150 Sport | 147cc | All |
