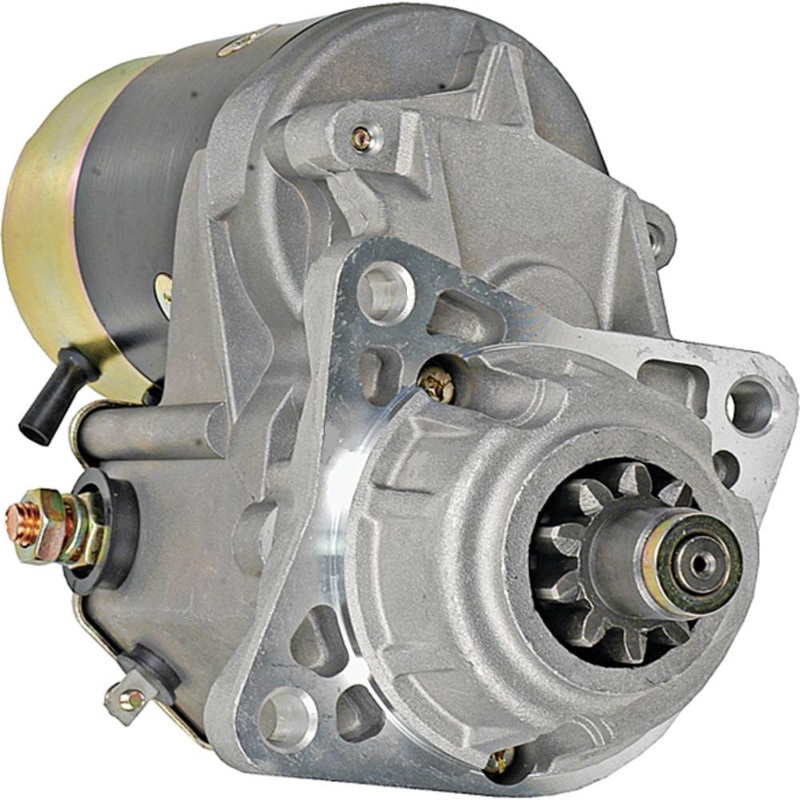

NEW Starter for CATERPILLER R70, R80, V60F, V80F & JOHN DEERE 4045DFM50, 4045DFM70, OTH Models; 410-52087, 143-0536, 3E0079, 7C2264, 8T8619, RE40092, RE54090, RE59595, TY24437, TY25972; LESTER 17399, 17589, 17630
$243.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 2.500 kw |
| HP | 3.353 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.571″ |
| GEAR OD | 39.900mm |
| MOUNT HOLE ID 1 | 12mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ND128000-4084, ND128000-8294, ND128000-9610, ND128080-8294, ND9712809-829, SND0479 |
| BOSCH | SR5006X |
| CATERPILLAR | 143-0536, 3E0079, 7C2264, 8T8619 |
| DENSO | 128000-408, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4084, 128000-8290, 128000-8291, 128000-8292, 128000-8293, 128000-8294, 128000-9610, 128080-4084, 128080-8294, 280-7024, 9712809-829 |
| J&N ELECTRICAL PRODUCTS | 410-52087, 410-52314 |
| JOHN DEERE | RE40092, RE54090, RE59595, TY24437, TY25972 |
| LESTER | 17399, 17589, 17630 |
| LUCAS ELECTRIC | LRS01512 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Caterpillar | R70 | 1989 | |
| Caterpillar | R80 | 1989 | |
| Caterpillar | V60F | Perkins 4-24 | 1991 |
| Caterpillar | V80F | Perkins 4-24 | 1991 |
| John Deere | 4039 | All | |
| John Deere | 4039DFM (Code 3002) | 4cyl 239ci 3.9 | |
| John Deere | 4039DFM | 3900cc, 3.9L/239CI 4-Cyl | |
| John Deere | 4045 | All | |
| John Deere | 4045DFM50 (Code 3012) | 4cyl 276ci 4.5 | |
| John Deere | 4045DFM50 | 4500cc, 4.5L/276CI 4-Cyl | |
| John Deere | 4045DFM70 (Code 3012) | 4cyl 276ci 4.5 | 2004, 2005, 2006, 2007 |
| John Deere | 4045DFM70 | 4500cc, 4.5L/276CI 4-Cyl | 2004, 2005, 2006, 2007 |
| John Deere | 4045TFM (Code 3002) | 4cyl 276ci 4.5 | |
| John Deere | 4045TFM | 4500cc, 4.5L/276CI 4-Cyl | |
| John Deere | 4045TFM50 (Code 3012) | 4cyl 276ci 4.5 | |
| John Deere | 4045TFM50 | 4500cc, 4.5L/276CI 4-Cyl | |
| John Deere | 4045TFM75 (Code 3012) | 4cyl 276ci 4.5 | 2004, 2005, 2006, 2007 |
| John Deere | 4045TFM75 | 4500cc, 4.5L/276CI 4-Cyl | 2004, 2005, 2006, 2007 |
| John Deere | 4219DF | All | |
| John Deere | 4239D / 4239T | All | |
| John Deere | 4276D / T | All | |
| John Deere | 6329D | All |
