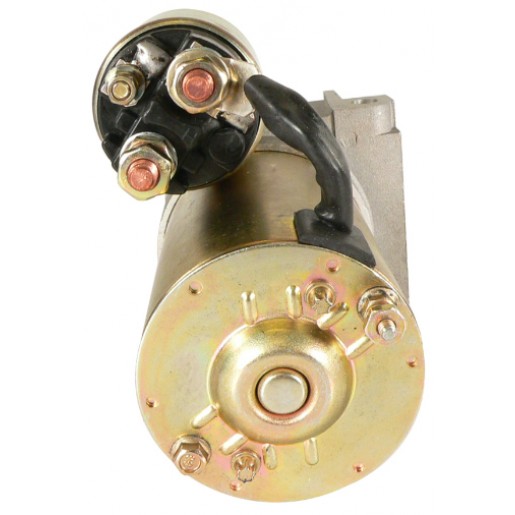

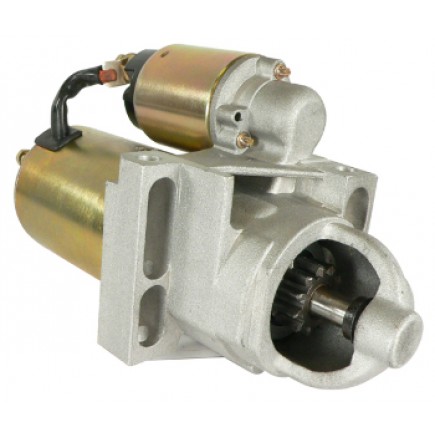

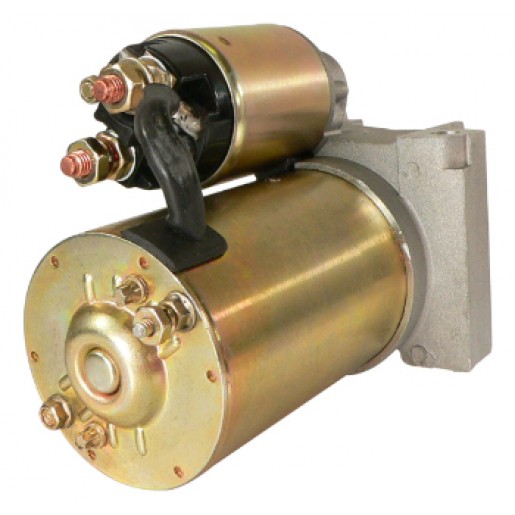

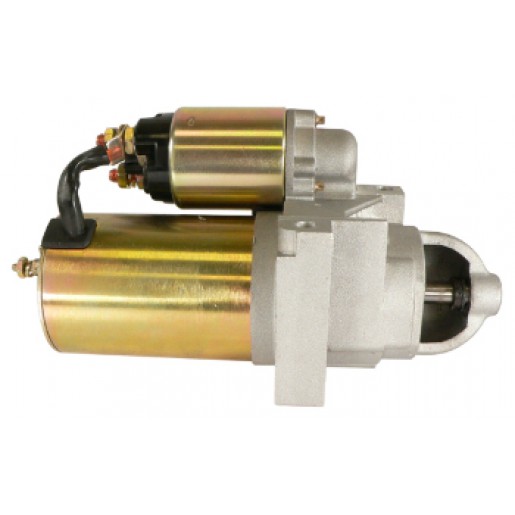

NEW Starter for CHEVROLET & GMC Applications; 410-12153, 10465167, 10465554, 10465578, 19136219, 323-485, 9000786, 9000860, 9000879, 9000899, 8104651670; LESTER 6449, 6449M, 6766

$149.99

Email

Specifications

UNIT TYPE Starter
CRITICAL NOTE Automotive Applications
FAMILY Delco PG260M
ELECTRIC STARTER TYPE Permanent Magnet Gear Reduction (PMGR)
VOLT 12
POWER 1.700 kw
HP 2.28
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 11
GEAR OD 1.161″
GEAR OD 29.500mm
LENGTH 245.100 mm
LENGTH 9.650″
MOUNT HOLE ID 1 10mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
REGISTRY OD 2.465″
REGISTRY OD 62.600mm
WARRANTY 1 Year
Mounting holes are Offset.


WRITE YOUR OWN REVIEW



We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SDR0019
ARROWHEAD SDR0019-L
J & N 410-12407
LESTER 6449
AC DELCO 323-1471
AC DELCO 336-1910
BARSANCO 510-6449M
BARSANCO 510-6449L
BBB 6449
BBB HD 6449
BBB NEW N6449
BBB NEW 6449
BBB PACE B6449
BECK ARNLEY 187-6057
BECK ARNLEY NEW 189-6057
CARGO 112240
DELCO 9000879
DELCO 10465578
DELCO 19136219
DIXIE S-1460
DUBOIS 681786
EXCEL 2059
FAMILY PG260L
GENERAL MOTORS 12564108
GENERAL MOTORS 12570823
GENERAL MOTORS 12572233
MINNPAR 57-2391
MPA HD X6449MS
MPA NEW HD X6449MSN
NAPA 46-5110
NAPA HD 76057
NAPA NEW HD 76057N
NAPA POWER NEW 4N-5110
NAPA POWER PREMIUM PLUS 246-5110
NAPA POWER PREMIUM PLUS 246-5141
NAPA POWER SUPREME 46-5141
NAPA POWER SUPREME 46-5110
NSA STR-2603
RCP 21974A
RCP ST-6449
REMY LIGHT DUTY 25906
REMY LIGHT DUTY (OLD) 25465
REMY LIGHT DUTY NEW 96206
USA INDUSTRIES 6449
WAI 2-2143-DR-2
WAI 6449N
WAI 2-2143-DR
WILSON 91-01-4521
WILSON 91-01-4382
WILSON 91-01-4619
WILSON NEW 91-01-4382
WILSON NEW 91-01-4382N
WORLDWIDE 25906
WORLDWIDE (OLD) 25465
WORLDWIDE NEW 96206

Part fit

Year Make Model Engine
Year Make Model Engine
2001 - 2002 CHEVROLET / GMC All Models (By Engine) - Gas GM 8.1L(496) V8 Gas
2001 - 2002 CHEVROLET / GMC B7 GM 8.1L(496) V8 Gas
2001 - 2002 CHEVROLET / GMC C5500 Kodiak / Topkick GM 8.1L(496) V8 Gas
2001 - 2002 CHEVROLET / GMC C60 GM 8.1L(496) V8 Gas
2001 - 2002 CHEVROLET / GMC C70 GM 8.1L(496) V8 Gas
2001 - 2002 CHEVROLET / GMC C80 GM 8.1L(496) V8 Gas
2001 - 2005 CHEVROLET / GMC C6500 GM 8.1L(496) V8 Gas
2001 - 2005 CHEVROLET / GMC C7500 GM 8.1L(496) V8 Gas
2001 - 2005 CHEVROLET / GMC C8500 GM 8.1L(496) V8 Gas
2001 - 2005 CHEVROLET / GMC C8500 Kodiak / Topkick GM 8.1L(496) V8 Gas
2001 - 2006 CHEVROLET / GMC C6500 Kodiak / Topkick GM 8.1L(496) V8 Gas
2001 - 2006 CHEVROLET / GMC C7500 Kodiak / Topkick GM 8.1L(496) V8 Gas
2001 - 2006 CHEVROLET / GMC Topkick / Kodiak GM 8.1L(496) V8 Gas
2002 CHEVROLET AVALANCHE 2500 8.1L(496) V8
2002 CHEVROLET C / K / R / V SERIES PICKUPS 8.1L(496) V8
2002 CHEVROLET EXPRESS VANS 5.0L(305) V8
2002 CHEVROLET EXPRESS VANS 5.7L(350) V8
2002 CHEVROLET EXPRESS VANS 8.1L(496) V8
2002 CHEVROLET SILVERADO 2500 HD 8.1L(496) V8
2002 CHEVROLET SILVERADO 3500 8.1L(496) V8
2002 CHEVROLET SUBURBAN 8.1L(496) V8
2002 GMC C / K / R / V SERIES PICKUPS 8.1L(496) V8
2002 GMC SAVANA VANS 5.0L(305) V8
2002 GMC SAVANA VANS 5.7L(350) V8
2002 GMC SAVANA VANS 8.1L(496) V8
2002 GMC SIERRA 2500 HD 8.1L(496) V8
2002 GMC SIERRA 3500 8.1L(496) V8
2002 GMC YUKON XL 8.1L(496) V8
2003 - 2005 CHEVROLET / GMC C5500 GM 8.1L(496) V8 Gas
