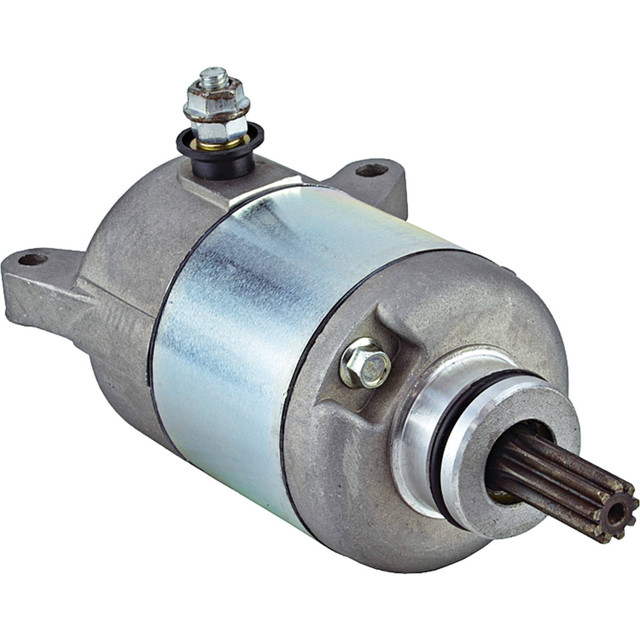

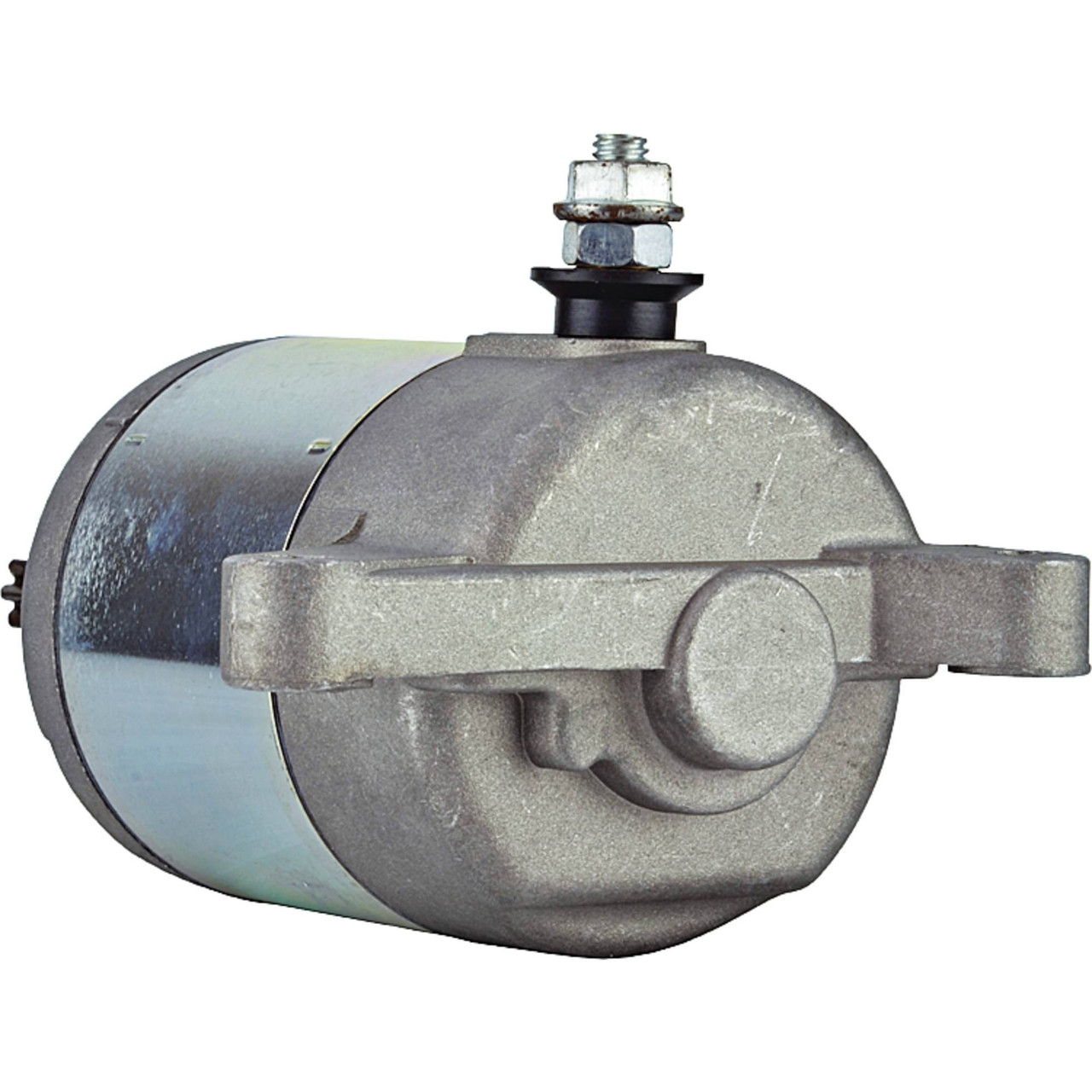

NEW Starter for CHINA BUILT ATV’s & Scooters; 410-58076, 31200KRM851, 31200-KRM-851; LESTER 19566, 19566N
$59.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.453″ |
| GEAR OD | 11.500mm |
| LENGTH | 149.500 mm |
| LENGTH | 5.886″ |
| MOUNT HOLE ID 1 | 5.900mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 2 | 3.004″ |
| MOUNTING EAR DISTANCE 2 | 76.300mm |
| REGISTRY OD | 1.181″ |
| REGISTRY OD | 30mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0036 |
| HI LEVEL | 219526 |
| HONDA | 31200KRM851, 31200-KRM-851 |
| J&N ELECTRICAL PRODUCTS | 410-58076 |
| LESTER | 19566, 19566N |
