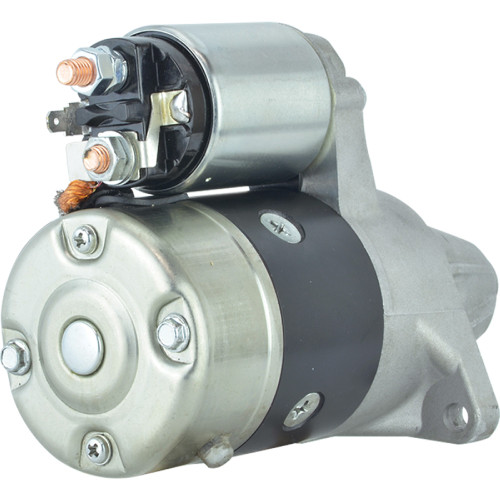

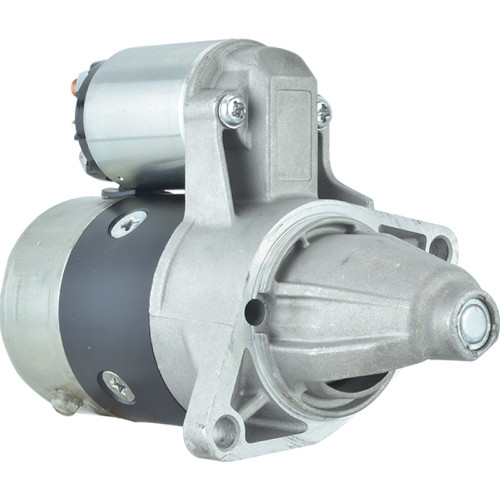

NEW Starter for CUSHMAN Truckster; 410-48307, M2T13181, 180515082, 31100-70D50
$149.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Direct Drive (DD) |
| VOLT |
12 |
| POWER |
0.600 kw |
| HP |
0.805 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
8 |
| GEAR OD |
1.094″ |
| GEAR OD |
27.800mm |
| LENGTH |
201.800 mm |
| LENGTH |
7.945″ |
| MOUNT HOLE ID 1 |
9.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
110.100mm |
| MOUNTING EAR DISTANCE 1 |
4.335″ |
| REGISTRY OD |
2.559″ |
| REGISTRY OD |
65mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
410-48307 |
| MITSUBISHI |
M2T13181 |
| OTHER OEMS |
180515082 |
| SUZUKI |
31100-70D50 |
