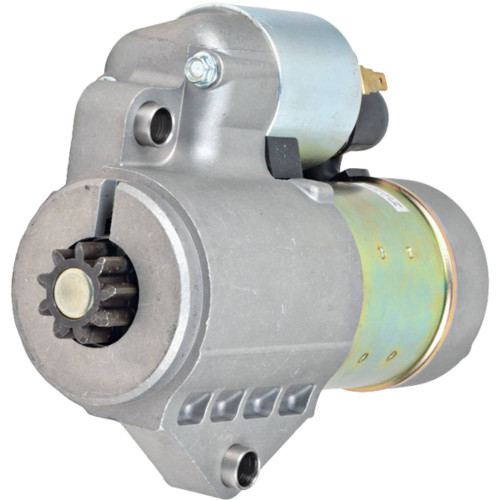

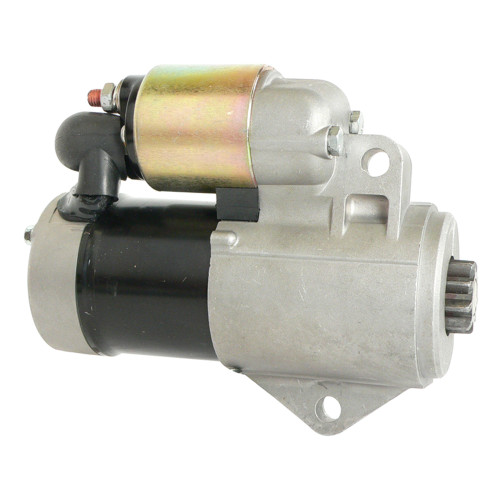

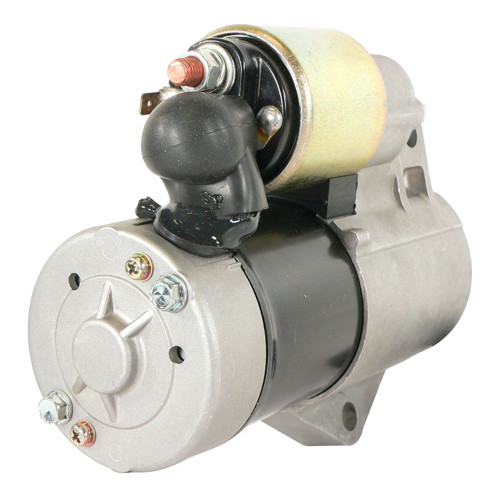

New Starter for EVINRUDE JOHNSON & SUZUKI 90, 100, 115 & 140hp Engine – Marine Outboard; 410-44098, 503379, 31100-90J00, 31100-90J01, [HITACHI S114-837, S114-837A, S114-837AN]; LESTER 19701
$229.99
Specifications
| UNIT TYPE | Starter |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.134″ |
| GEAR OD | 28.800mm |
| MOUNT HOLE ID 1 | 10.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 | Unthreaded |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | S114-837, S114-837AN, SHI0165 |
| EMP | 4-6831 |
| HITACHI | S114-837, S114-837A, S114-837AN |
| J&N ELECTRICAL PRODUCTS | 410-44098 |
| LESTER | 19701 |
| OMC OUTBOARD MARINE CORP | 5033799 |
| SUZUKI | 31100-90J00, 31100-90J01 |
Applications
| YEAR | MAKE | MODEL | ENGINE |
| 2003, 2004 | EVINRUDE JOHNSON | BJ115L4 | 115HP |
| 2005, 2006 | EVINRUDE JOHNSON | BJ115PL4 | 115HP |
| 2005, 2006 | EVINRUDE JOHNSON | BJ115PX4 | 115HP |
| 2003, 2004 | EVINRUDE JOHNSON | BJ115X4 | 115HP |
| 2004 – 2006 | EVINRUDE JOHNSON | BJ140CX4 | 140HP |
| 2006 | EVINRUDE JOHNSON | BJ140L4 | 140HP |
| 2004, 2005 | EVINRUDE JOHNSON | BJ140PL4 | 140HP |
| 2004, 2005 | EVINRUDE JOHNSON | BJ140PX4 | 140HP |
| 2006 | EVINRUDE JOHNSON | BJ140X4 | 140HP |
| 2003 – 2006 | EVINRUDE JOHNSON | BJ90PL4 | 90HP |
| 2003 – 2006 | EVINRUDE JOHNSON | BJ90PX4 | 90HP |
| 2009 – 2011 | EVINRUDE JOHNSON | J115PL4 | 115HP |
| 2009 – 2011 | EVINRUDE JOHNSON | J115PX4 | 115HP |
| 2013 – 2015 | EVINRUDE JOHNSON | J140CX4 | 140HP |
| 2015 | EVINRUDE JOHNSON | J140PL4 | 140HP |
| 2015 | EVINRUDE JOHNSON | J140PX4 | 140HP |
| 2013 – 2015 | EVINRUDE JOHNSON | J90PL4 | 90HP |
| 2015 | EVINRUDE JOHNSON | J90PX4 | 90HP |
| 2015 | SUZUKI | DF100TL | 118.9ci – 100HP |
| 2013 – 2015 | SUZUKI | DF100TX | 118.9ci – 100HP |
| 2015 | SUZUKI | DF115ATL | 124.7ci – 115HP |
| 2001 – 2012 | SUZUKI | DF115ATLSS | 124.7ci – 115HP |
| 2001 – 2012 | SUZUKI | DF115ATLW | 124.7ci – 115HP |
| 2008 – 2012 | SUZUKI | DF115ATX | 124.7ci – 115HP |
| 2013 – 2015 | SUZUKI | DF115ATXSS | 124.7ci – 115HP |
| 2015 | SUZUKI | DF115ATXW | 124.7ci – 115HP |
| 2013 – 2015 | SUZUKI | DF115ATXZ | 124.7ci – 115HP |
| 2015 | SUZUKI | DF115ATXZW | 124.7ci – 115HP |
| 2013 – 2015 | SUZUKI | DF115TL | 118.9ci – 115HP |
| 2015 | SUZUKI | DF115TX | 118.9ci – 115HP |
| 2002 – 2013 | SUZUKI | DF115TXZ | 118.9ci – 115HP |
| 2002 – 2013 | SUZUKI | DF140ATL | 124.7ci – 140HP |
| 2002 – 2013 | SUZUKI | DF140ATLW | 124.7ci – 140HP |
| 2001 – 2008 | SUZUKI | DF140ATX | 124.7ci – 140HP |
| 2001 – 2008 | SUZUKI | DF140ATXW | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF140ATXZ | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF140ATXZW | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF140TL | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF140TX | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF140TXZ | 124.7ci – 140HP |
| 2003 – 2006 | SUZUKI | DF90TL | 118.9ci – 90HP |
| 2003 – 2006 | SUZUKI | DF90TX | 118.9ci – 90HP |
