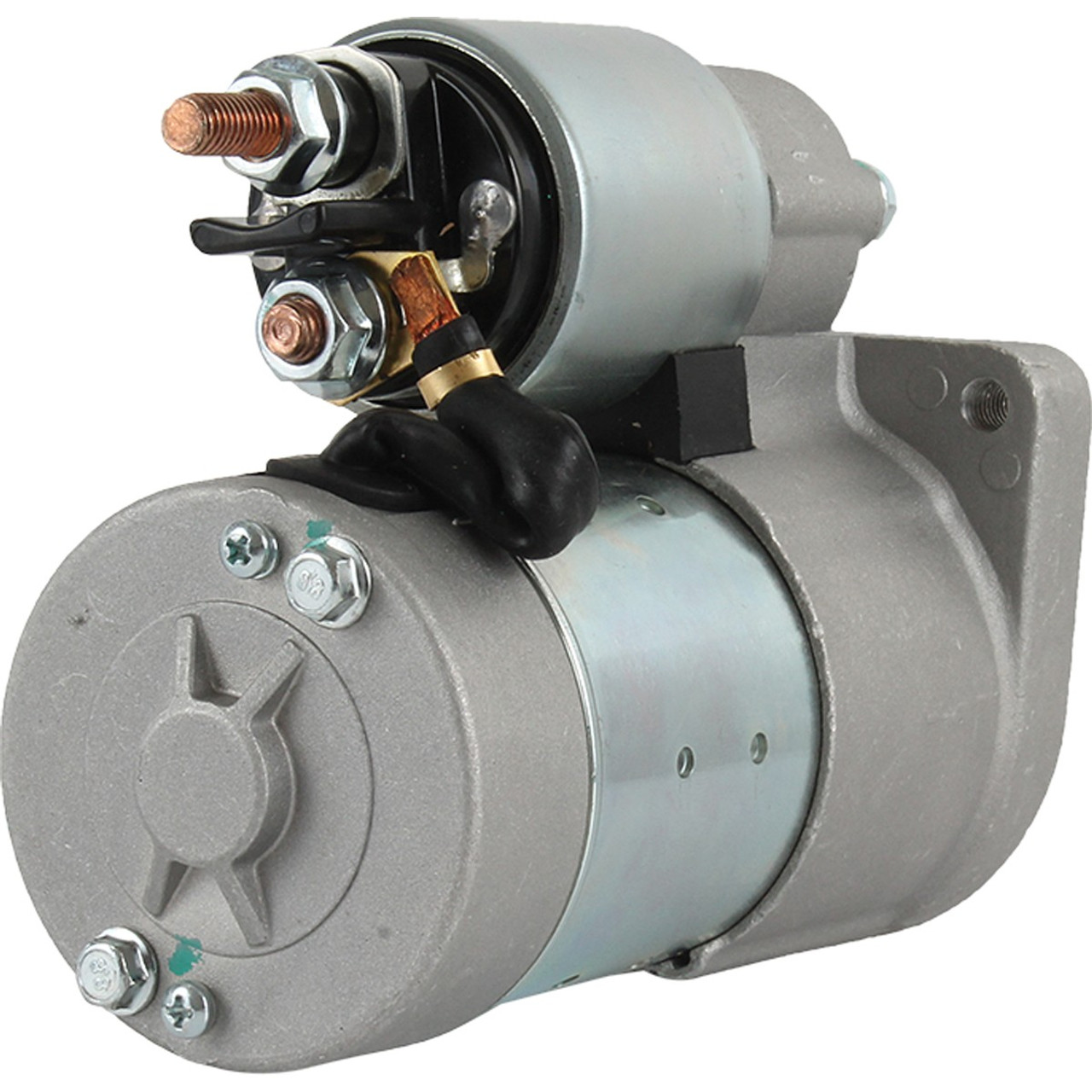

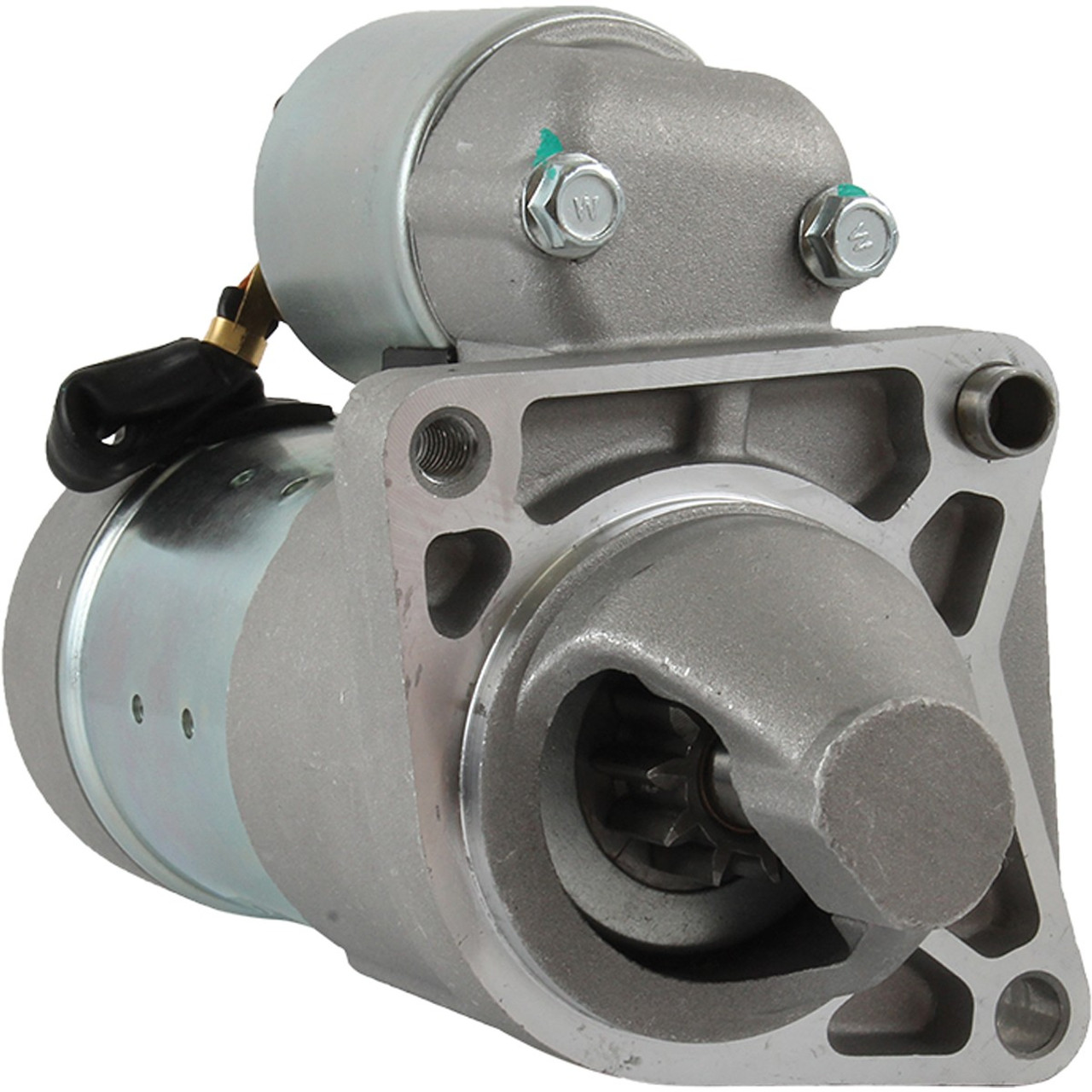

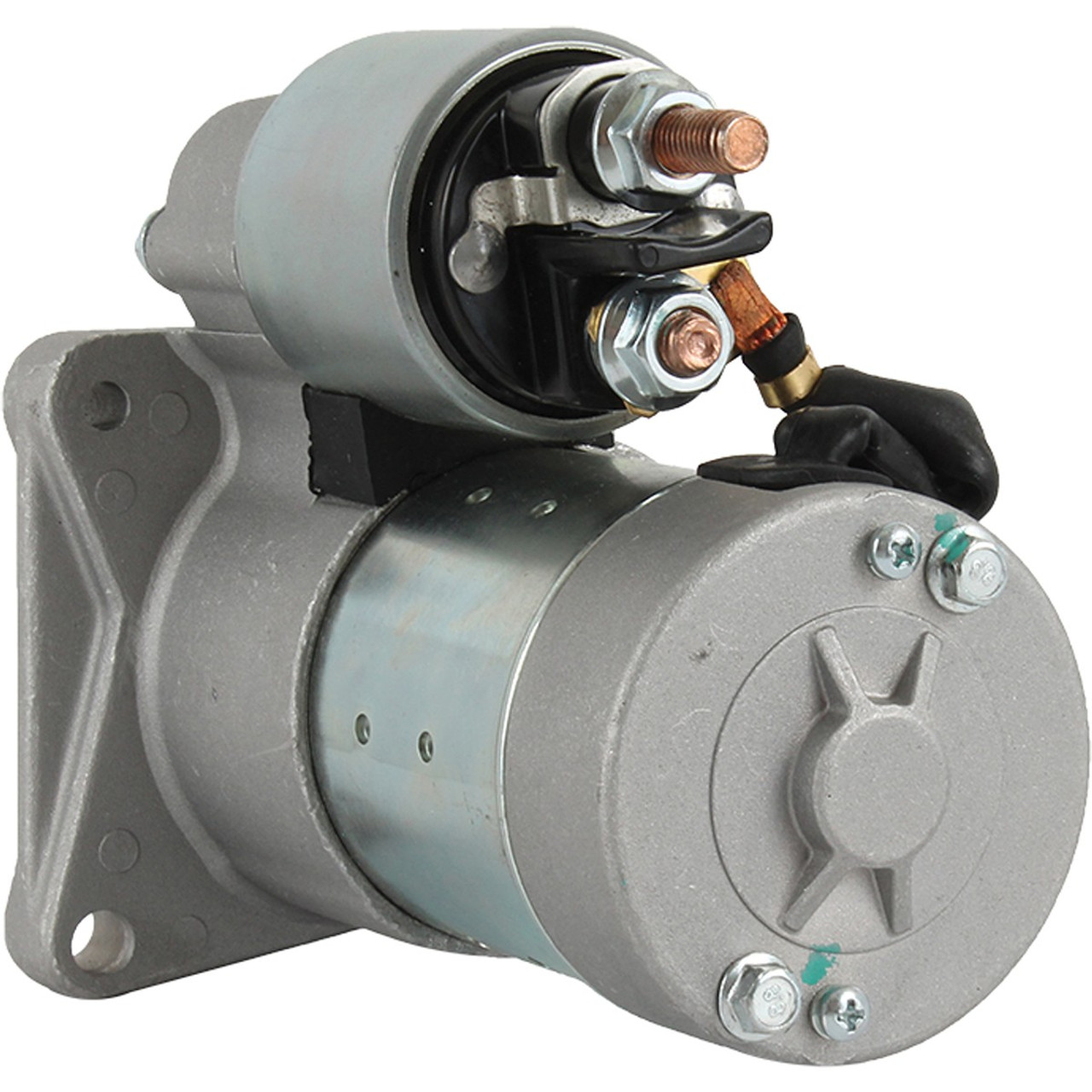

NEW Starter for FIAT 124 SPIDER, 500L, 500X & JEEP Renegade 1.4L; 410-44148, 68201259AA, 51890631, S114-943A; LESTER 19297
$164.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Gear Reduction (PMGR) |
| ROTATION DIRECTION |
Clockwise |
| VOLT |
12 |
| POWER |
1 kw |
| HP |
1.341 |
| NUMBER OF TEETH |
10 |
| GEAR OD |
1.091″ |
| GEAR OD |
27.700mm |
| LENGTH |
192.800 mm |
| LENGTH |
7.591″ |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
9.100mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
2.913″ |
| MOUNTING EAR DISTANCE 1 |
74mm |
| MOUNTING EAR DISTANCE 2 |
2.913″ |
| MOUNTING EAR DISTANCE 2 |
74mm |
| MOUNTING EAR DISTANCE 3 |
2.913″ |
| MOUNTING EAR DISTANCE 3 |
74mm |
| REGISTRY OD |
2.516″ |
| REGISTRY OD |
63.900mm |
| WARRANTY |
1 Year |
| ADD’L INFO |
Extended B+ Stud, Hole 2 Is Sleeved For Locating Pin |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SHI0209, SMT0456 |
| CHRYSLER MOTORS |
68201259AA |
| FIAT |
51890631 |
| HITACHI |
S114-943A |
| J&N ELECTRICAL PRODUCTS |
410-44148 |
| LESTER |
19297 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 2014 - 2018 |
FIAT |
500L |
1.4L |
| 2015 - 2018 |
JEEP |
RENEGADE |
1.4L(83) L |
| 2016 - 2018 |
FIAT |
500X |
1.4L |
| 2017 - 2018 |
FIAT |
124 SPIDER |
1.4L |
