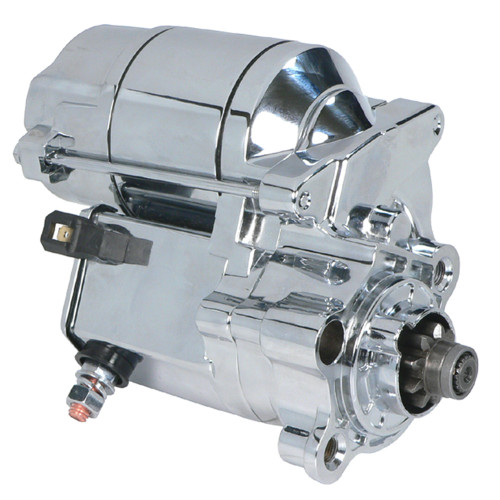

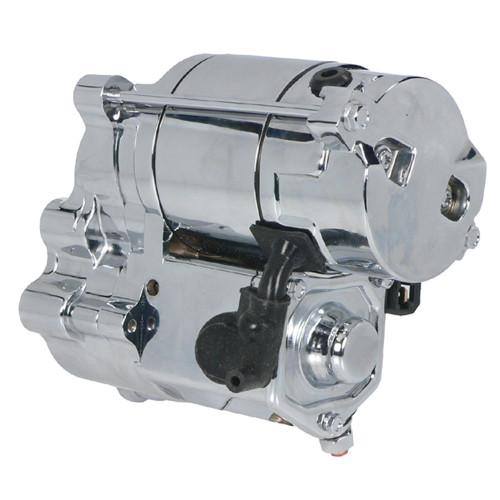

NEW Starter for HARLEY DAVIDSON XL Sportster, XLH Sportster & OTH Models; 410-52136, 31390-86, 31390-91, 31390-91A, 31390-91B, 31390-91F, 31391-91, 31391-91A; LESTER 18200, 18477C
$267.99
Specifications
| UNIT TYPE | Starter |
| FAMILY | Denso RA |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 1.200 kw |
| HP | 1.609 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.130″ |
| GEAR OD | 28.700mm |
| MOUNT HOLE ID 1 | 3/8-24 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 3/8-24 |
| MOUNT HOLE 2 TYPE | Threaded |
| WARRANTY | 1 Year |
| Chrome Plated, Battery Stud M8-1.25 Threaded |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ALL BALLS RACING | 80-1009, 80-1010 |
| ARROWHEAD | SHD0004C, SHD0004-C |
| DENSO | 128000-845, 128000-8450, 128000-8451, 128000-8452, 128000-8453, 128000-8454, 128000-8455, 128000-8456, 128000-8457 |
| HARLEY DAVIDSON | 31390-86, 31390-91, 31390-91A, 31390-91B, 31390-91F, 31391-91, 31391-91A |
| LESTER | 17632, 18200, 18477 |
Applications
| MAKE | MODEL | YEAR | ENGINE |
| Harley Davidson | XL Sportster 1200C Custom | 1200cc | 2004 – 2014 |
| Harley Davidson | XL Sportster 1200C Custom Anniv. | 1200cc | 2013 |
| Harley Davidson | XL Sportster 1200CA Custom Ltd. A | 1200cc | 2013, 2014 |
| Harley Davidson | XL Sportster 1200CB Custom Ltd. B | 1200cc | 2013, 2014 |
| Harley Davidson | XL Sportster 1200CP Custom | 1200cc | 2011 – 2014 |
| Harley Davidson | XL Sportster 1200L Low | 1200cc | 2007 – 2012 |
| Harley Davidson | XL Sportster 1200N Nightster | 1200cc | 2008 – 2012 |
| Harley Davidson | XL Sportster 1200R Roadster | 1200cc | 2004 – 2009 |
| Harley Davidson | XL Sportster 1200V Seventy-Two | 1200cc | 2013, 2014 |
| Harley Davidson | XL Sportster 1200X Forty-Eight | 1200cc | 2011 – 2014 |
| Harley Davidson | XL Sportster 50th Anniv. | 1200cc | 2007 |
| Harley Davidson | XL Sportster 883 | 883cc | 2004 – 2009 |
| Harley Davidson | XL Sportster 883C Custom | 883cc | 2004 – 2010 |
| Harley Davidson | XL Sportster 883L Low | 883cc | 2005 – 2010 |
| Harley Davidson | XL Sportster 883L Super Low | 883cc | 2011 – 2014 |
| Harley Davidson | XL Sportster 883N Iron | 883cc | 2009 – 2014 |
| Harley Davidson | XL Sportster 883R Roadster | 883cc | 2005 – 2014 |
| Harley Davidson | XLH Sportster | 1000cc | 1981 – 1987 |
| Harley Davidson | XLH Sportster 1200 | 1200cc | 1987 – 2003 |
| Harley Davidson | XLH Sportster 1200 Anniv. | 1200cc | 1993 |
| Harley Davidson | XLH Sportster 1200 Custom | 1200cc | 1996 – 2003 |
| Harley Davidson | XLH Sportster 1200 Custom Anniv. | 1200cc | 1998 |
| Harley Davidson | XLH Sportster 1200 Sport | 1200cc | 1996 – 2003 |
| Harley Davidson | XLH Sportster 883 | 883cc | 1986 – 2003 |
| Harley Davidson | XLH Sportster 883 Custom | 883cc | 1999 – 2003 |
| Harley Davidson | XLH Sportster 883 Deluxe | 883cc | 1986 – 1996 |
| Harley Davidson | XLH Sportster 883 Hugger | 883cc | 1987 – 2003 |
| Harley Davidson | XLH Sportster 883 Race | 883cc | 2002, 2003 |
| Harley Davidson | XLH Sportster Liberty | 1100cc | 1986 |
| Harley Davidson | XLR Sportster 1200X | 1200cc | 2011 – 2013 |
| Harley Davidson | XLS Roadster | 1000cc | 1981 – 1985 |
| Harley Davidson | XLSA Roadster Anniv. | 1000cc | 1982 |
| Harley Davidson | XLX-61 | 1000cc | 1983 – 1985 |
| Harley Davidson | XR Sportster 1200 | 1200cc | 2008 |
| Harley Davidson | XR Sportster 1200X | 1200cc | 2010 |
| Harley Davidson | XR1000 | 1000cc | 1983 – 1984 |
