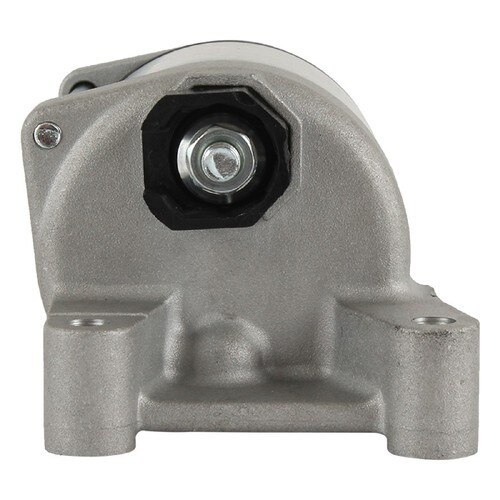

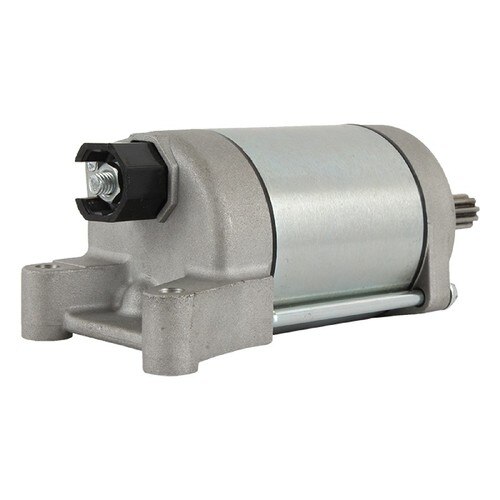

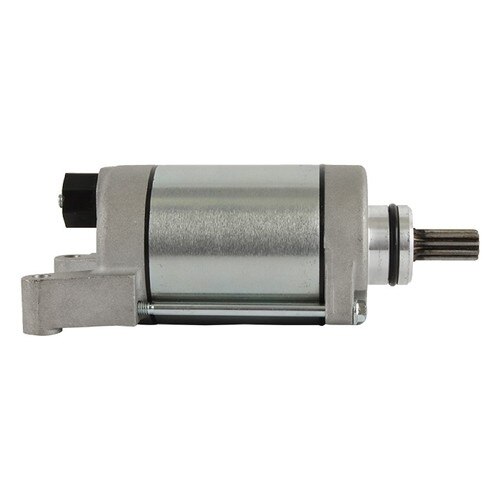

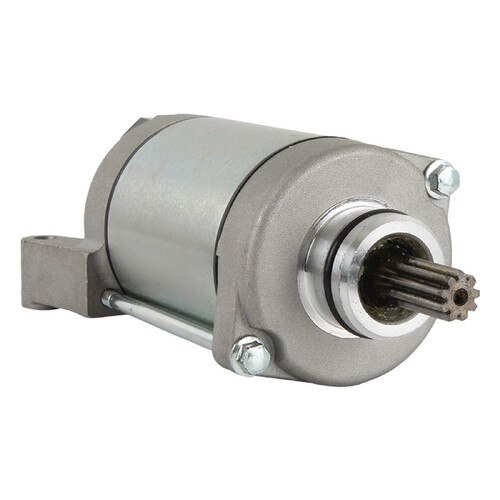

NEW Starter For HONDA CRF230F, CRF230L & CRF230L Motorcycles/ Off-Road; 410-54223, 31200-KPS-A11, 31200KPS-A11; LESTER 30822

$159.99

Email
Categories: ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 9
GEAR OD 0.461″
GEAR OD 11.700mm
LENGTH 124 mm
LENGTH 4.882″
MOUNT HOLE ID 1 6.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR DISTANCE 1 2.039″
MOUNTING EAR DISTANCE 1 51.800mm
REGISTRY OD 1.177″
REGISTRY OD 29.900mm
WARRANTY 1 Year
M6-1.0 B+ Stud

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SMU0480
J & N 410-54223
LESTER 30822
HONDA 31200-KPS-A11, 31200KPS-A11

Part fit

Year Make Model Engine
Year Make Model Engine
2008 - 2009 HONDA CRF230L 223cc
2008 - 2016 HONDA CRF230F 223cc
2009 HONDA CRF230M 223cc
