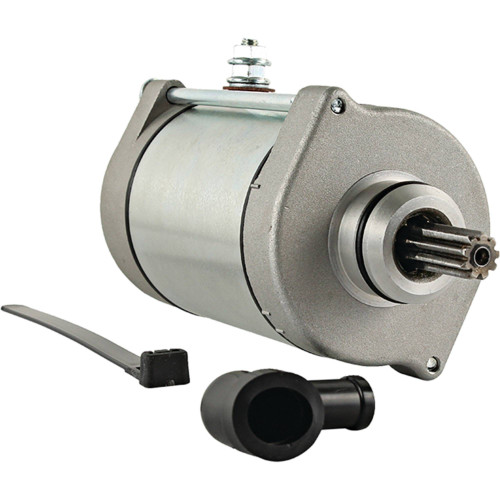

NEW Starter for HONDA MUV 700 Big Red UTV; 410-54205, 06311-HL1-305, SMU0543
$164.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.461″ |
| GEAR OD |
11.700mm |
| LENGTH |
195 mm |
| LENGTH |
7.677″ |
| MOUNT HOLE ID 1 |
6.700mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| REGISTRY OD |
1.181″ |
| REGISTRY OD |
30mm |
| WARRANTY |
1 Year |
| MOUNTING EAR DISTANCE 1 |
0.984″ |
| MOUNTING EAR DISTANCE 1 |
25mm |
| MOUNTING EAR DISTANCE 2 |
0.984″ |
| MOUNTING EAR DISTANCE 2 |
25mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0543 |
| HONDA |
06311-HL1-305 |
| J&N ELECTRICAL PRODUCTS |
410-54205 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Honda |
MUV 700 Big Red |
350cc |
2009, 2010, 2011, 2012, 2013 |
