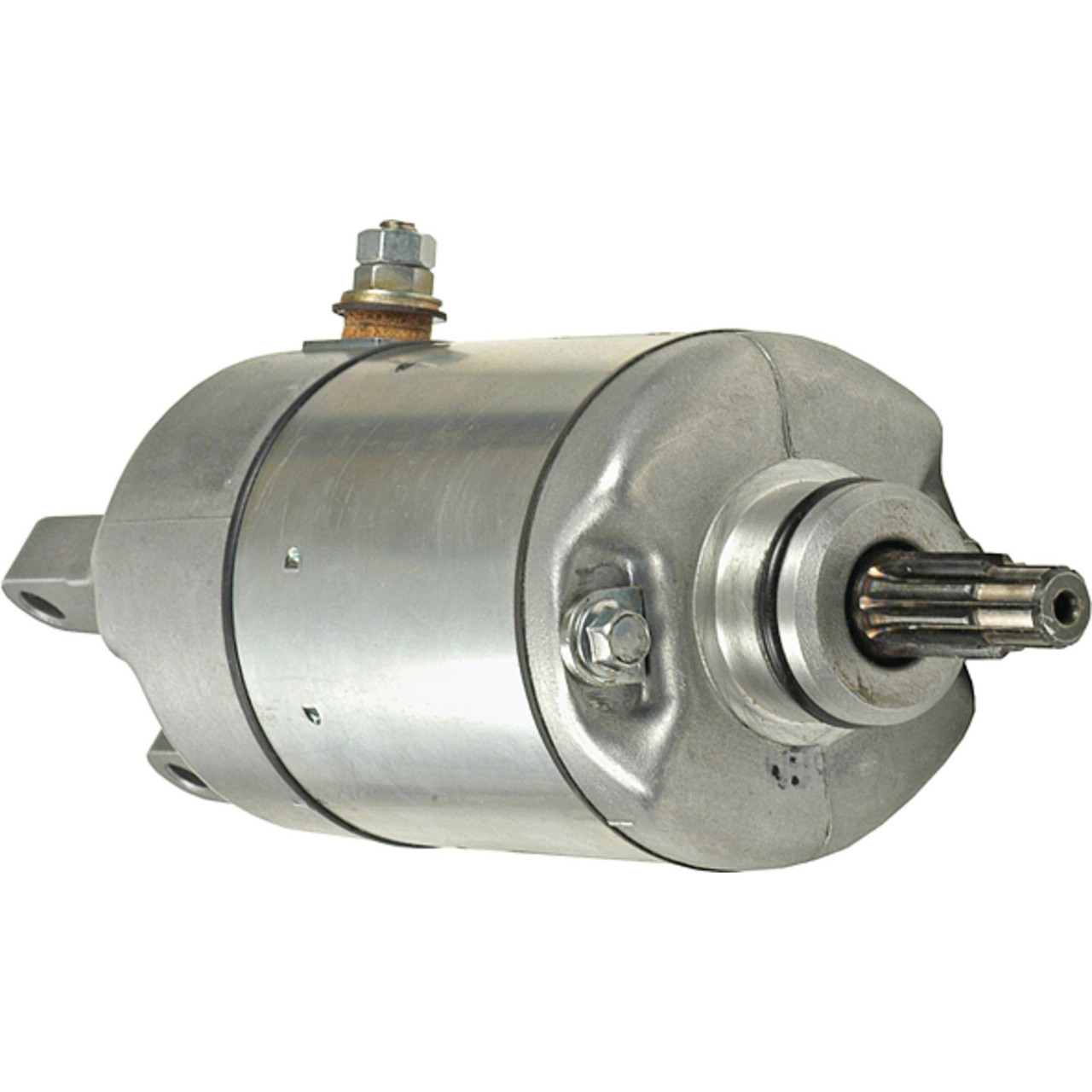

NEW Starter for HONDA TRX 300 EX & TRX 300 X ATV; 410-54008, 31200-HM3-671, 31200HM3-671, SM13422; LESTER 18329
$99.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| FAMILY |
Mitsuba SM13 |
| VOLT |
12 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
10 |
| GEAR OD |
0.504″ |
| GEAR OD |
12.800mm |
| LENGTH |
146.600 mm |
| LENGTH |
5.772″ |
| MOUNT HOLE ID 1 |
6.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
1.358″ |
| MOUNTING EAR DISTANCE 1 |
34.500mm |
| REGISTRY OD |
1.181″ |
| REGISTRY OD |
30mm |
| WARRANTY |
1 Year |
|
M6 B+ Stud |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0029 |
| HI LEVEL |
STH0029 |
| HONDA |
31200-HM3-671, 31200HM3-671 |
| LESTER |
18329 |
| MITSUBA |
SM13422 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Honda |
TRX 300 EX |
281cc |
1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| Honda |
TRX 300 X |
281cc |
2009 |
