$264.99
SEARCH: 485662 (DENSO)
Specifications

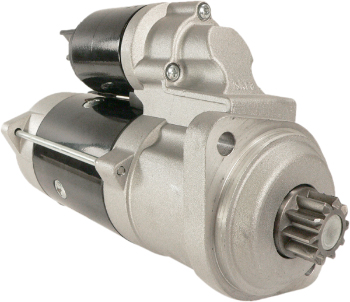

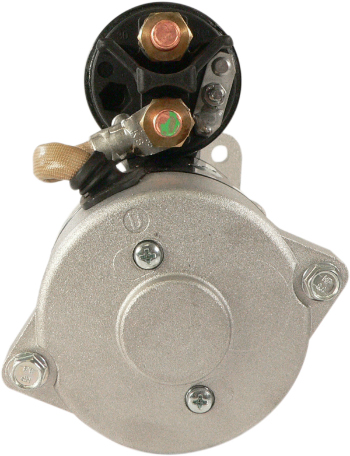

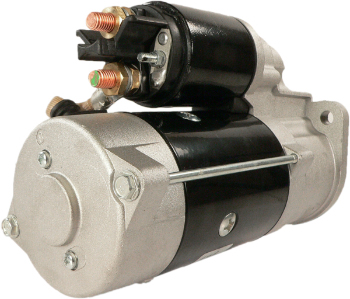

UNIT TYPE | Starter |
FAMILY | Letrika/MAHLE AZE46 |
ELECTRIC STARTER TYPE | Planetary Gear Reduction (PLGR) |
VOLT | 12 |
POWER | 2.800 kw |
HP | 3.755 |
ROTATION DIRECTION | Clockwise |
NUMBER OF TEETH | 10 |
GEAR OD | 1.260″ |
GEAR OD | 32mm |
LENGTH | 10.709″ |
LENGTH | 272 mm |
MOUNT HOLE ID 1 | 10.400mm |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE 2 TYPE | Unthreaded |
REGISTRY OD | 3.244″ |
REGISTRY OD | 82.400mm |
WARRANTY | 1 Year |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | 410-29068 |
JOHN DEERE | RE501157, RE505746, RE516157, RE551445, TY24438 |
MAHLE | 11.131.063, 11.131.221, 11.131.752, 11.131.771, 11.131.789, AZE4603, AZE4620, AZE4648, AZE4652, AZE4655, IS1027, IS1027.3, MS293 |
OTHER OEMS | 91295372 |
Part fit
Year | Make | Model | Engine |
---|---|---|---|
Year | Make | Model | Engine |
1999 - 2004 | JOHN DEERE | 240 | JD 3029D 46HP Engine |
1999 - 2004 | JOHN DEERE | 250 | JD 3029T 61HP Engine |
1999 - 2004 | JOHN DEERE | 260 | JD 3029T 69HP Engine |
All | JOHN DEERE | 240 Series II | JD 3029D 53HP Engine |
All | JOHN DEERE | 250 Series II | JD 3029T 64.4HP Engine |
All | JOHN DEERE | 260 Series II | JD 3029T 72.4HP Engine |
All | JOHN DEERE | 5076E | JD 4-276 77HP Dsl |
All | JOHN DEERE | 5076EF | JD 4-276 77HP Dsl |
All | JOHN DEERE | 5076EL | JD 4-276 77HP Dsl |
All | JOHN DEERE | 5078E | JD 4-276 77HP Dsl |
All | JOHN DEERE | 5082E | JD 4-276 81HP Dsl |
All | JOHN DEERE | 5083E | JD 4-276 83HP Dsl |
All | JOHN DEERE | 5085E | JD 4-276 85HP Dsl |
All | JOHN DEERE | 5090E | JD PT 4.5L 89HP Dsl |
All | JOHN DEERE | 5310 | JD 3-179 64HP Dsl |
All | JOHN DEERE | 5310N | JD 3-179 64HP Dsl |
All | JOHN DEERE | 5410 | JD 4-276 81HP Dsl |
All | JOHN DEERE | 5410N | JD 4-276 81HP Dsl |
All | JOHN DEERE | 5420 | JD PT 4.5L 81HP Dsl |
All | JOHN DEERE | 5510 | All |
All | JOHN DEERE | 5510 | JD 4-276 89HP Dsl |
All | JOHN DEERE | 5520 | JD PT 4.5L 89HP Dsl |
All | JOHN DEERE | 5615 | JD 4-276 90.5HP Dsl |
All | JOHN DEERE | 5715 | JD 4-276 89HP Dsl |
