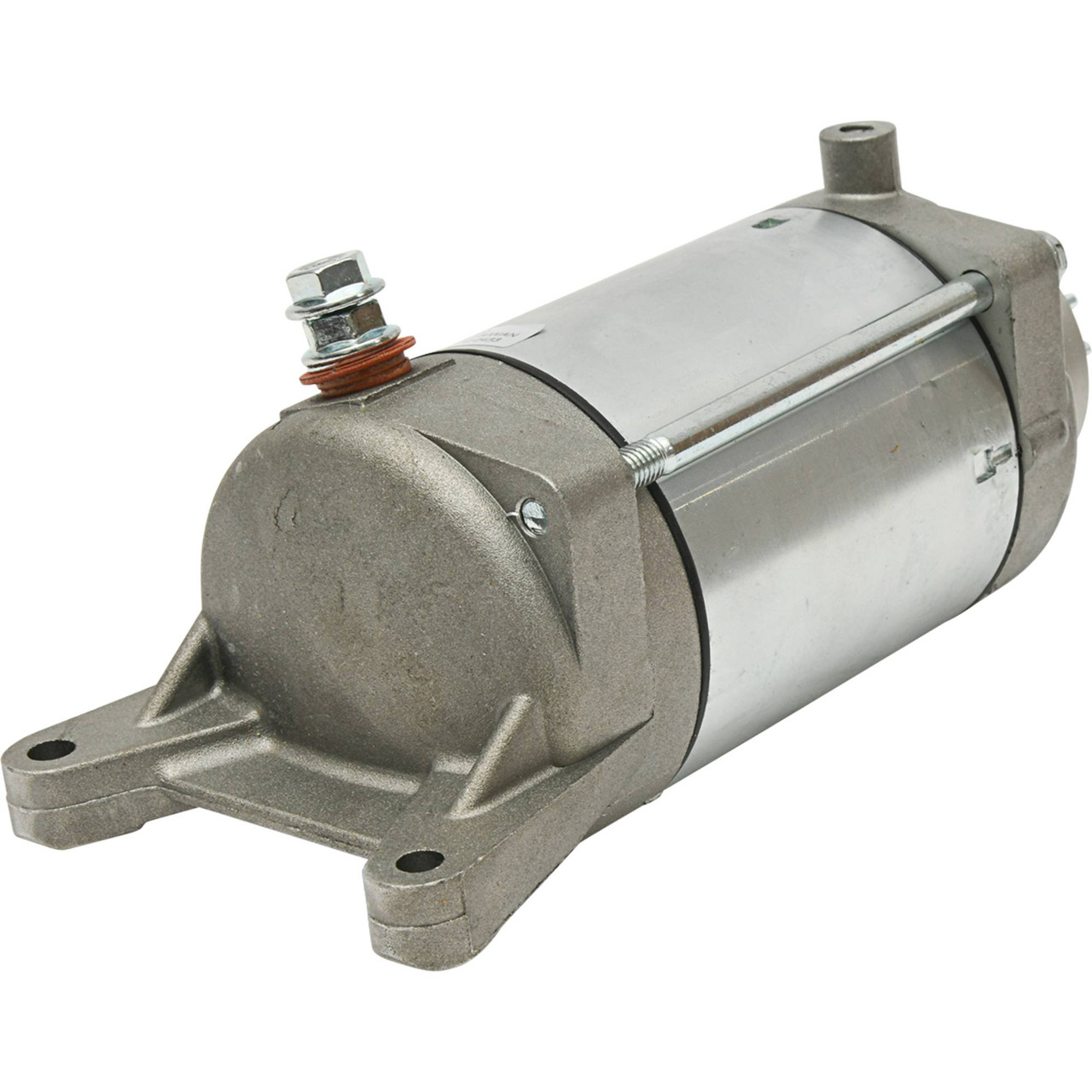

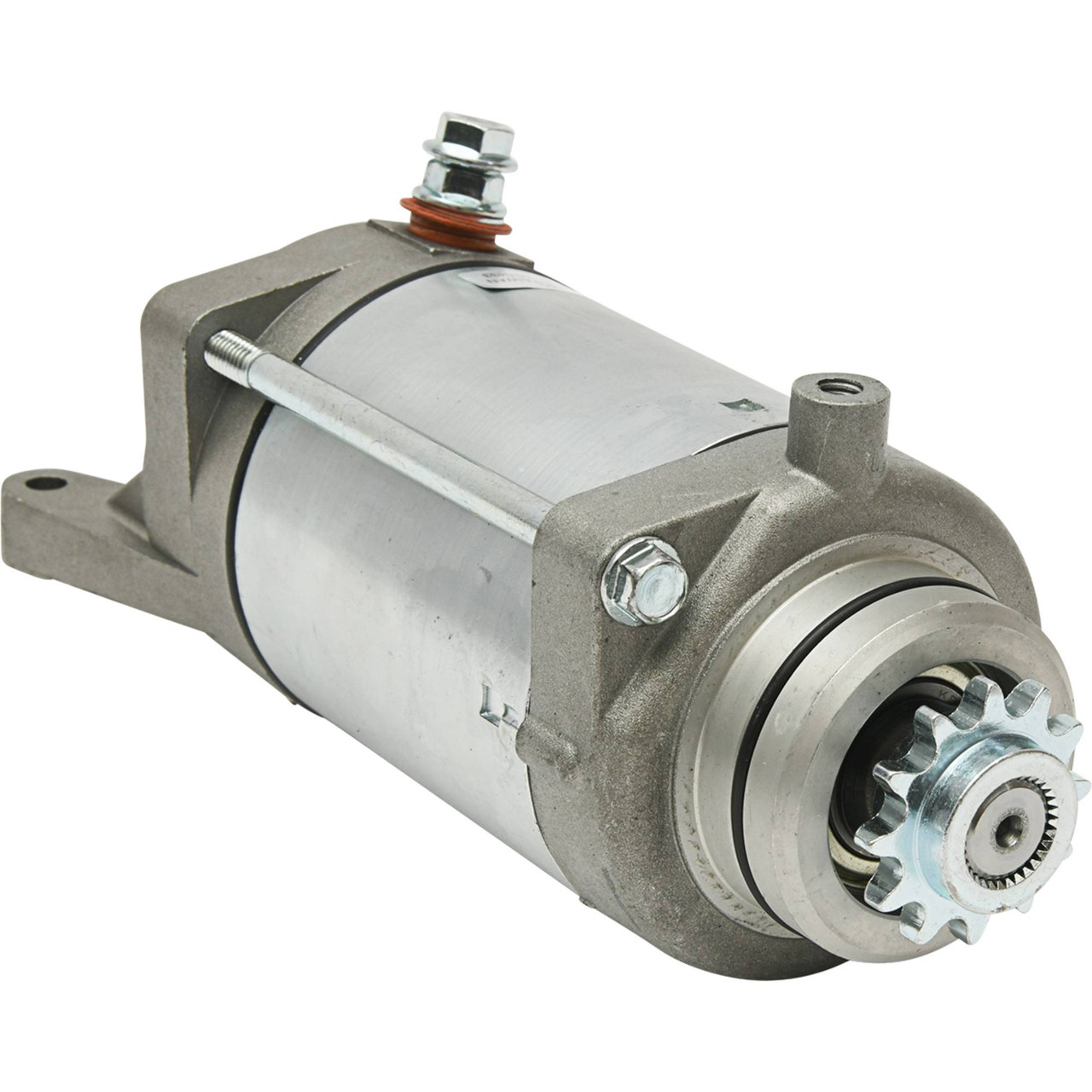

NEW Starter for KAWASAKI EN450A 454 LTD, EN500A Vulcan, EX500 GPZ & EX500 Ninja Motorcycles; 410-54121, 21163-1070, 21163-1120, 21163-1125, 21163-1163, SM-8239; LESTER 18640, 18704
$219.99
Specifications
| PART TYPE | Starter |
| VOLT | 12 |
| POWER | 0.600 kw |
| HP | 0.805 |
| ROTATION DIRECTION | Clockwise |
| ELECTRIC STARTER TYPE | Direct Drive (DD) |
| NUMBER OF TEETH | 31 |
| GEAR OD | 0.531″ |
| GEAR OD | 13.500mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M6x1.00 |
| MOUNT HOLE 3 TYPE | Threaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0056, SMU0118 |
| HI LEVEL | STK0056 |
| J&N ELECTRICAL PRODUCTS | 410-54121 |
| KAWASAKI | 21163-1070, 21163-1120, 21163-1125, 21163-1163 |
| LESTER | 18640, 18704 |
| MITSUBA | SM-8239 |
| OTHER OEMS | 495802 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Kawasaki | EN450A 454 LTD | 454cc | 1985, 1986, 1987, 1988, 1989, 1990 |
| Kawasaki | EN500A Vulcan | 498cc | 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Kawasaki | EX500 GPZ | 498cc | 1987, 1988, 1989, 1990, 1991, 1992, 1993 |
| Kawasaki | EX500 Ninja | 498cc | 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| Kawasaki | KAF 450 B Mule 1000 | 454cc | All |
