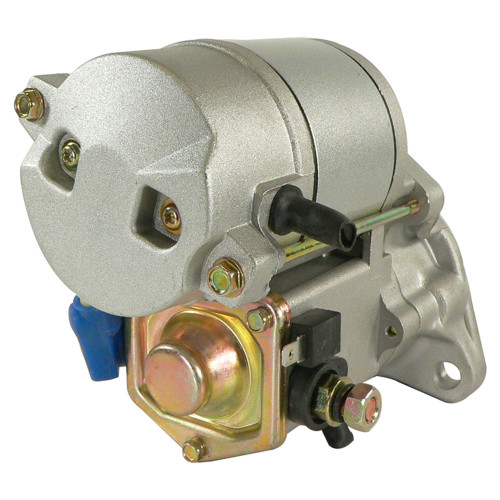

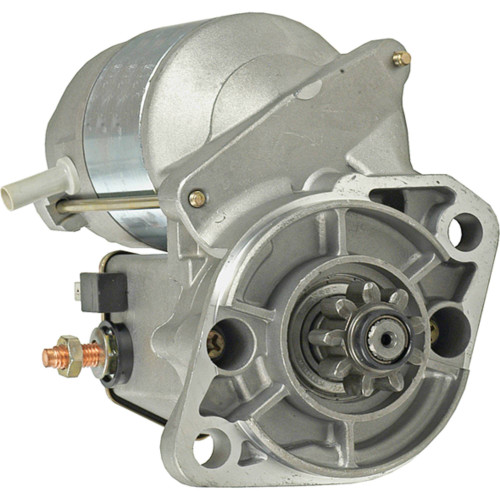

NEW Starter for KUBOTA Compact Excavators & OTH Applications; 410-52024, 6653920, 6655896, 6662323, 6988700, 15401-63010, 15401-63011, 15401-63012, KEARS17298; LESTER 16645, 16650, 17368, 18144
$168.99
Specifications
| UNIT TYPE | Starter |
| FAMILY | Denso RA |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 1.400 kw |
| HP | 1.877 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.339″ |
| GEAR OD | 34mm |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ND028000-4990, ND128000-0170, ND128000-0181, ND128000-6640, ND228000-1022, ND228000-1082, ND228000-4922, ND9712809-017, ND9722809-102, ND9722809-492 |
| BOBCAT | 6653920, 6655896, 6662323, 6988700 |
| CASEIH | 503470 |
| DELCO | DRS3226 |
| DENSO | 028000-4200, 028000-4201, 028000-4990, 028000-4991, 028000-6240, 028000-6260, 028000-6261, 128000-0170, 128000-0171, 128000-018, 128000-0180, 128000-0181, 128000-6640, 228000-1020, 228000-1021, 228000-1022, 228000-1080, 228000-1081, 228000-1082, 228000-4920, 228000-4921, 228000-4922, 9712809-017, 9712809-664, 9722809-102, 9722809-108, 9722809-492 |
| FORD/NEW HOLLAND | 503470 |
| KIOTI | E5500-63014 |
| KUBOTA | 15401-63010, 15401-63011, 15401-63012, 15461-63010, 15461-63011, 15461-63012, 15461-63013, 15461-63014, 15461-63015, 15511-63010, 15511-63011, 15521-63010, 15521-63011, 15521-63012, 17298-63010, 17298-63011, 17298-63012, 17298-63013, 17341-63010, 17341-63011, 17341-63013, 17341-63015, KEARS15461, KEARS17298 |
| LESTER | 16645, 16650, 17368, 18144 |
| LUCAS ELECTRIC | LRS01129, LRS01225, LRS01333 |
Applications
| Make | Model | Engine | Years |
| Bobcat | 225 | Diesel | 1990 – 1998 |
| Kubota | D1302 | 1986 | |
| Kubota | D1402 | 1987 | |
| Kubota | GV1125-Q60 | Diesel | 1995 |
| Kubota | GV3170-SW | 22HP Diesel | 1986 |
| Kubota | GV3190QSW | 24HP Diesel | 1992 |
| Kubota | GV3240 | 33HP Diesel | 1986 |
| Kubota | GV3240-SW | 33HP Diesel | 1986 |
| Kubota | GV3250QSW | Diesel | 1995 |
| Kubota | KC20 | V1502BS | 1982 |
| Kubota | KH11H | Diesel | 1980 – 1993 |
| Kubota | KH12FD | Diesel | 1982 |
| Kubota | KH14 | Diesel | 1977 – 1980 |
| Kubota | KH151 | 43HP Diesel | 1988 |
| Kubota | KH170L | 48HP Diesel | 1985 |
| Kubota | KH18 | 35HP Diesel | 1981 |
| Kubota | KH191 | 59HP Diesel | 1988 |
| Kubota | KH20 | Diesel | 1981 |
| Kubota | KH28 | 48HP Diesel | 1984 |
| Kubota | KH60 | 27HP Diesel | 1986 |
| Kubota | KH90 | 34HP Diesel | 1985 |
| Kubota | KH91 | 30HP Diesel | 1988 |
| Kubota | KJS150V | Diesel | – |
| Kubota | KJS150VX | Diesel | – |
| Kubota | KJT210V | Diesel | – |
| Kubota | KJT210VX | Diesel | – |
| Kubota | KJT270FSW | Diesel | – |
| Kubota | KJT270FX-SW | Diesel | – |
| Kubota | KX101 | 36HP Diesel | 1992 |
| Kubota | KX151 | 42HP Diesel | 1993 |
| Kubota | L2250DT | 26HP Diesel | 1985 – 1990 |
| Kubota | L2250F | 26HP Diesel | 1985 – 1990 |
| Kubota | L2550DT | 29HP Diesel | 1985 – 1990 |
| Kubota | L2550DTGST | 29HP Diesel | 1985 – 1987 |
| Kubota | L2550F | 29HP Diesel | 1985 – 1990 |
| Kubota | L2550GST | 29HP Diesel | 1986 – 1990 |
| Kubota | L2850 | 1.7L 4-Cyl Diesel | 1985 – 1990 |
| Kubota | L2850DT | 34HP Diesel | 1985 – 1990 |
| Kubota | L2850DTGST | 34HP Diesel | 1985 – 1990 |
| Kubota | L2850F | 34HP Diesel | 1985 – 1990 |
| Kubota | L2850GST | 34HP Diesel | 1985 – 1990 |
| Kubota | L285DT | 30HP Diesel | 1975 – 1981 |
| Kubota | L285F | 30HP Diesel | 1975 – 1981 |
| Kubota | L285HF | 30HP Diesel | 1975 – 1981 |
| Kubota | L295DT | 30HP Diesel | 1978 – 1982 |
| Kubota | L295F | 30HP Diesel | 1979 – 1982 |
| Kubota | L3250DT | 40HP Diesel | 1989 – 1990 |
| Kubota | L3250F | 40HP Diesel | 1989 – 1990 |
| Kubota | L3450DTGST | 36HP Diesel | 1990 – 1993 |
| Kubota | L3450F | 36HP Diesel | 1991 – 1993 |
| Kubota | L3450GST | 36HP Diesel | 1990 – 1993 |
| Kubota | L3600DT | 39HP Diesel | 1994 – 1998 |
| Kubota | L3600DTC | 36HP Diesel | 1994 – 1997 |
| Kubota | L3600GST | 39HP Diesel | 1994 – 1998 |
| Kubota | L3600GSTC | 38HP Diesel | 1996 – 1998 |
| Kubota | L3600GSTCA | 38HP Diesel | 1996 – 1998 |
| Kubota | L3650DT | 40HP Diesel | 1991 – 1993 |
| Kubota | L3650DTGST | 40HP Diesel | 1991 – 1993 |
| Kubota | L3650DTW | 40HP Diesel | 1990 – 1993 |
| Kubota | L3650F | 40HP Diesel | 1991 – 1993 |
| Kubota | L3650GST | 40HP Diesel | 1990 – 1993 |
| Kubota | L3650T | 40HP Diesel | 1990 – 1993 |
| Kubota | L3710DT | 38HP Diesel | 1998 – 2002 |
| Kubota | L3710GST | 38HP Diesel | 1998 – 2002 |
| Kubota | L3710HST | 38HP Diesel | 1998 – 2002 |
| Kubota | L3710HSTC | 38HP Diesel | 1998 – 2002 |
| Kubota | L4200DT | 45HP Diesel | 1994 – 1998 |
| Kubota | L4200F | 45HP Diesel | 1994 – 1998 |
| Kubota | L4200FGST | 45HP Diesel | 1994 – 1998 |
| Kubota | L4200GST | 45HP Diesel | 1994 – 1998 |
| Kubota | L4200GSTC | 42HP Diesel | 1994 – 1997 |
| Kubota | L4200GSTCA | 45HP Diesel | 1994 – 1998 |
| Kubota | L4300DT | 45HP Diesel | 2001 – 2004 |
| Kubota | L4300F | 45HP Diesel | 2001 – 2004 |
| Kubota | L4610GST | 48HP Diesel | 2001 – 2002 |
| Kubota | L4610HST | 48HP Diesel | 2001 – 2002 |
| Kubota | L4610HSTC | 48HP Diesel | 2001 – 2002 |
| Kubota | NSU25 | 1980 | |
| Kubota | NSU35 | S2200 | 1976 |
| Kubota | NX3000 | D1301 | 1977 – 1981 |
| Kubota | R410 | 39HP Diesel | 1989 |
| Kubota | R420 | 43HP Diesel | 1995 |
| Kubota | R420BU-1A | 43HP Diesel | 1995 |
| Kubota | R420S1 | 43HP Diesel | 1995 |
| Kubota | R420S2 | 43HP Diesel | 1995 |
| Kubota | R520S1 | 49HP Diesel | 1995 |
| Kubota | R520S2 | 49HP Diesel | 1995 |
| Kubota | RX3600 | V1502C | 1981 |
| Kubota | V1502 | 1986 – 1992 | |
| New Holland | L454 | V1402 | 1993 – 1995 |
| New Holland | L455 | V1402 | 1983 – 1993 |
| New Holland | L553 | V1902 | 1987 – 1993 |
| New Holland | L555 | V1902 | 1981 – 1993 |
| Thomas Equipment | 175 | Diesel | – |
| Thomas Equipment | T103 | Diesel | 1989 – 1995 |
| Thomas Equipment | T133 | Diesel | 1989 – 1995 |
| Thomas Equipment | T133S | Diesel | 1995 – 1998 |
| Thomas Equipment | T173 | Diesel | 1989 – 1999 |
