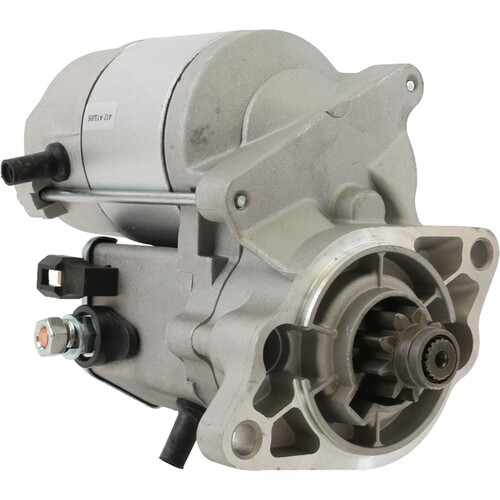

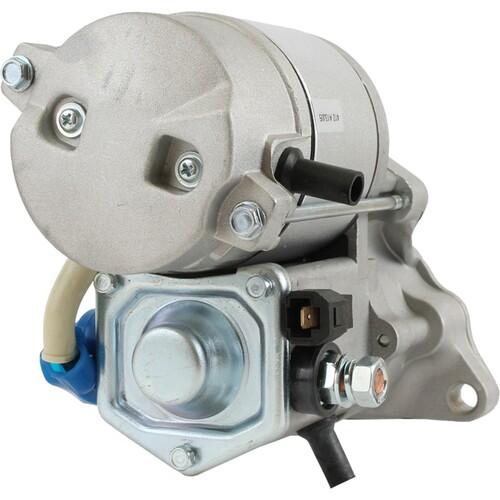

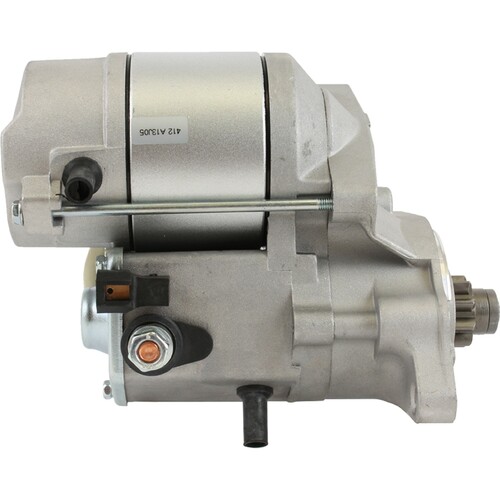

NEW Starter for KUBOTA Tractors - Compact & OTH applications; 410-52054, 028000-8320, 028000-8321, 128000-3590, 15471-63011, 15504-63010, 15504-63011; LESTER 17028, 18419

NEW Starter for KUBOTA Tractors – Compact & OTH applications; 410-52054, 028000-8320, 028000-8321, 128000-3590, 15471-63011, 15504-63010, 15504-63011; LESTER 17028, 18419

Name: NEW Starter for KUBOTA Tractors - Compact &amp; OTH applications; 410-52054, 028000-8320, 028000-8321, 128000-3590, 15471-63011, 15504-63010, 15504-63011; LESTER 17028, 18419
SKU: 8261
Availability: InStock

$154.99

Categories: Excavator, Marine Engines, Mower, Skid Steer, Starter, Tractor - Compact, Utility Vehicle (UTV)

Specifications

Unit Type	Starter
Part Type	Offset Gear Reduction (OSGR)
Voltage	12
Rotation	Clockwise
NUMBER OF TEETH	9
GEAR OD	1.134″/ 28.800mm
POWER	1.400 kw/ 1.877
MOUNT HOLE ID 1	8.900mm
MOUNT HOLE 1 & 2 TYPE	Unthreaded

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.

[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
ARROWHEAD	IMI236-001, ND9702809-832, ND9712809-359, ND9712809-995, ND9742809-264, SND0307
BOSCH	SR5056X
DENSO	028000-8320, 028000-8321, 128000-3590, 128000-3591, 128000-9950, 128000-9951, 228000-097, 228000-0970, 228000-0971, 428000-2640, 428000-2641, 9702809-832, 9712809-359, 9712809-995, 9722809-097, 9742809-264
J&N	410-52359
KUBOTA	15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16325-63012, 16871-63010, 16871-63011, 16871-63012, 77700-02602, K7561-61810, K7561-61811, K7571-61811, K7571-96800
LUCAS ELECTRIC	LRS01169
UNIVERSAL MARINE	302474

Applications

MAKE	MODEL	ENGINE	YEAR
AVANT TECHNO	528	Kubota D110	2008, 2009, 2010, 2011, 2012
AVANT TECHNO	630	Kubota D110	2006, 2007, 2008, 2009, 2010, 2011, 2012
AVANT TECHNO	528+	Kubota D1105-	2001, 2002, 2003, 2004, 2005
AVANT TECHNO	530+	Kubota D1105-	2002, 2003, 2004, 2005, 2006, 2007, 2008
Carrier Transicold	Maxima	1500cc, 1.5L CT4-91-TV Diesel , Diesel
Carrier Transicold	Maxima	CT4-91-TV 1.5L Diese
Carrier Transicold	Optima	CT4-91-TV 1.5L Diese
Carrier Transicold	Various Models	CT4-91-TV 1.5L Diese
Carrier Transicold	Various Models	CT4-91-TV 1.5L Diese
Case/International Harvester	1818	Kubota Engin	1987, 1988, 1989, 1990, 1991, 1992, 1993
Case/International Harvester	1825	Kubota Engin	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Grasshopper	928D	Kubota 28HP Ds
Kubota	B2150
Kubota	B2150DT	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150DT	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150DTB	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150DTB	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150E	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150E	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150HSD
Kubota	B2150HSD	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSD	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSDT	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSDT	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSDTB	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSDTB	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Kubota	B2150HSE	24HP V12 V1200-5B Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B2150HSE	Kubota V1200-5B 24HP Ds	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	B9200D
Kubota	B9200DT	22HP V12 V1200-A Diesel , Diese	1987, 1988, 1989, 1990
Kubota	B9200DT	Kubota V1200-A 22.5HP Ds	1987, 1988, 1989, 1990
Kubota	B9200E	22HP V12 V1200-A Diesel , Diese	1987, 1988, 1989, 1990
Kubota	B9200E	Kubota V1200-A 22.5HP Ds	1987, 1988, 1989, 1990
Kubota	B9200HSD
Kubota	B9200HSD	22HP V12 V1200-A Diesel , Diese	1987, 1988, 1989, 1990
Kubota	B9200HSD	Kubota V1200-A 22.5HP Ds	1987, 1988, 1989, 1990
Kubota	B9200HSE	22HP V12 V1200-A Diesel , Diese	1987, 1988, 1989, 1990
Kubota	B9200HSE	Kubota V1200-A 22.5HP Ds	1987, 1988, 1989, 1990
Kubota	B9200HST
Kubota	BX1500D	Kubota Z602
Kubota	BX1800D	Kubota D722E-BX 18HP Ds	2001, 2002, 2003
Kubota	BX1830D	Kubota D722E-BX 18HP Ds	2004, 2005, 2006
Kubota	BX1850D	Kubota D722E-BX 18HP Ds	2006, 2007, 2008, 2009
Kubota	BX1860D	Kubota D722E-BX 18HP Ds
Kubota	BX22	Kubota D905E-BX 22HP Ds	2002, 2003
Kubota	BX2200D	Kubota D905E-BX 22HP Ds	2001, 2002, 2003
Kubota	BX2230D	Kubota D902E-BX 22HP Ds	2004, 2005, 2006
Kubota	BX2350D	Kubota D902-E2-BX-2 23HP Ds	2006, 2007, 2008, 2009
Kubota	BX2360	Kubota D902-E3-BX-2 23HP Ds
Kubota	BX24	Kubota D902-E2-BX-2 23HP Ds	2006, 2007, 2008, 2009
Kubota	BX25	Kubota D902-E3-BX-2 23HP Ds	2009
Kubota	D1005 Engine	Al
Kubota	D850-B1 Engine	Al
Kubota	F2400
Kubota	F2400	24HP D1105-FM Diesel , Diese	1989
Kubota	F2400	Kubota D1105-FM 24HP Ds
Kubota	FZ2100
Kubota	FZ2100	21HP Diesel , Diese
Kubota	FZ2100	Kubota D905-FZ 21HP Ds
Kubota	FZ2400
Kubota	FZ2400	24HP D1105-F Diesel , Diese
Kubota	FZ2400	Kubota D1105-F 24HP Ds
Kubota	G1800	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800	Kubota D662 16HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800S
Kubota	G1800S	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800S	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800S	Kubota D662 16HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1900	18HP D722 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1900	18HP D722 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1900	Kubota D722 18HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	GF1800E-R	18HP D722 Diesel , Diese	2005
Kubota	GF1800E-R	Kubota D722 18HP Ds
Kubota	GF1800-R	18HP D722 Diesel , Diese	2005
Kubota	GF1800-R	Kubota D722 18HP Ds
Kubota	GL5500S	10HP ZB500GLS Diesel , Diese	1988
Kubota	GL5500S	Kubota ZB500GLS 10HP Ds
Kubota	GL6500S	12HP ZB600GLS Diesel , Diese	1988
Kubota	GL6500S	Kubota ZB600GLS 12HP Ds
Kubota	K008
Kubota	K008	10HP D722 Diesel , Diese	2000, 2001, 2002, 2003, 2004, 2005
Kubota	K008	Kubota D722 10HP Diese	2000, 2001, 2002, 2003, 2004, 2005
Kubota	K008-3	10HP D722EBH-3 Diesel , Diese	2000, 2001, 2002, 2003, 2004, 2005
Kubota	K008-3	Kubota D722EBH-3 10HP Ds	2000, 2001, 2002, 2003, 2004, 2005
Kubota	KH41	Kubota D950 17.8HP Ds
Kubota	KH61	Kubota D950BH 22.2HP Ds
Kubota	KX41	Kubota D1105BH 22HP Ds
Kubota	KX41	Kubota D1105BH 22HP Ds
Kubota	KX41-2	Kubota D1105BH 21.6HP Ds
Kubota	KX41-2S	Kubota D1105BH 21.6HP Ds
Kubota	KX41-2SV	Kubota D1105BH 21.6HP Ds
Kubota	KX41-3	Kubota D902EBH 17HP Ds
Kubota	KX61-2	Kubota D1105BH 27HP Ds
Kubota	KX61-2S	Kubota D1105BH 27HP Ds
Kubota	KX71-3	Kubota V1505E2 27.5HP Ds
Kubota	KX71H	Kubota V1505BH 32.2HP Ds
Kubota	KX71H	Kubota V1505BH 32.2HP Ds
Kubota	KX91-2	Kubota V1505BH 27.5HP Ds
Kubota	KX91-2S	Kubota V1505EBH 27.5HP Ds
Kubota	R310	Kubota V1305 26.6HP Ds
Kubota	RTV 1100
Kubota	RTV 1100	1140cc, Kubota D1105-E2-UV 24.8HP Dsl
Kubota	RTV 900
Kubota	RTV 900 G-H	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 G-K	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 G-T	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 R
Kubota	RTV 900 R-ASD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 S-ASD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 T	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 T-TSD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W6SE	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W9SE
Kubota	RTV 900 W-HSD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 XT	Kubota D902-E3-UV 21.6HP Ds
Kubota	RTV-X 1100 C	Kubota D1105-E4-UV 24.8HP Ds
Kubota	RTV-X 1120 D	Kubota D1105-E4-UV 24.8HP Ds
Kubota	RTV-X 900
Kubota	RTV-X 900	Kubota D902-E4-UV 21.6HP Ds
Kubota	RTV-X900
Kubota	TG1860	18HP D722EGX Diesel , Diese	1997
Kubota	TG1860	18HP D722EGX Diesel , Diese	1997
Kubota	TG1860	Kubota D722E-GX 18HP Ds
Steiner	230	Kubota 28HP Ds
Thomas Equipment	T84	D772B Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Thomas Equipment	T84	Kubota D722B Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Universal	M-35	4cyl 30HP Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993
Universal	M-35	4-Cyl V-1200 Diesel , Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993
