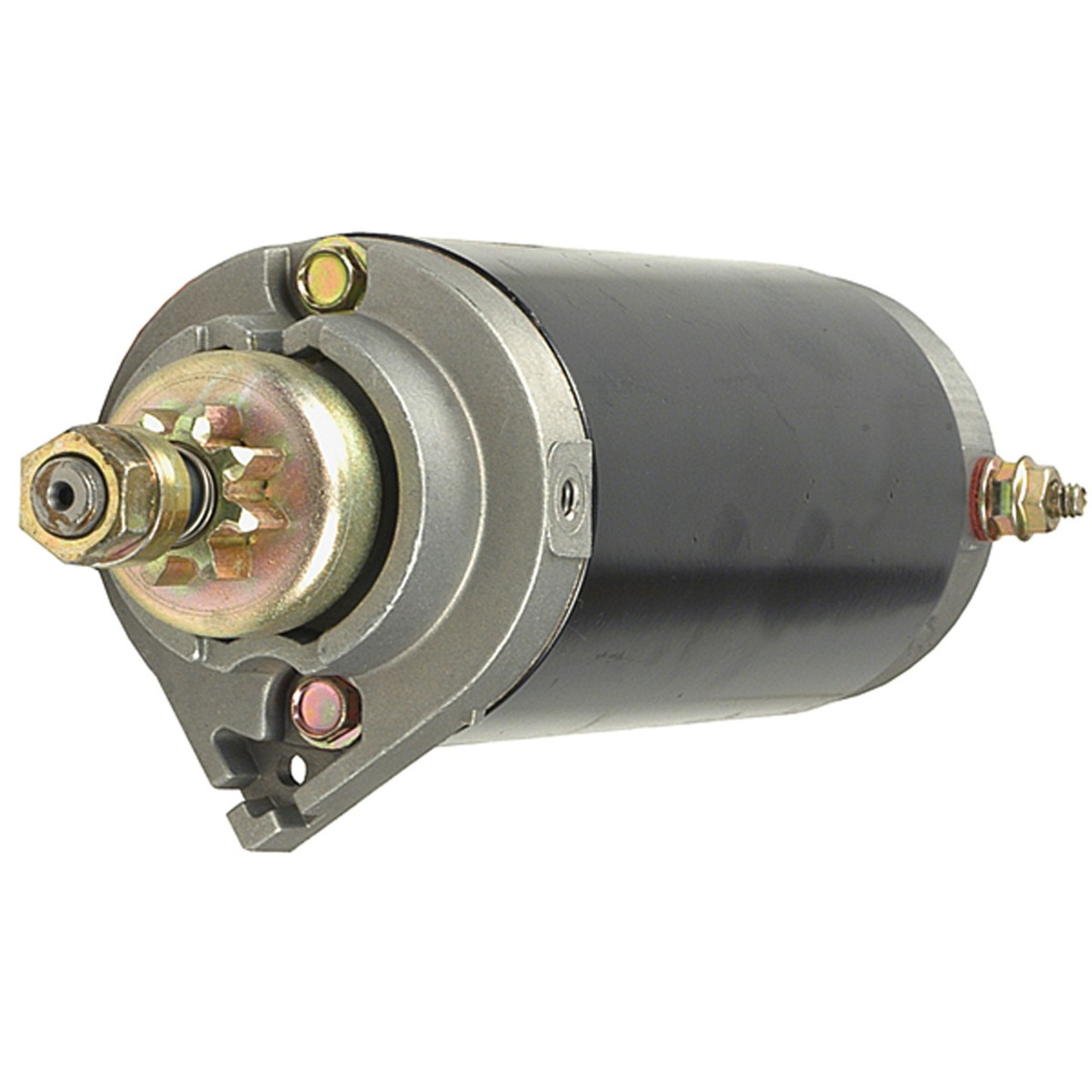

NEW Starter for MARINER & MERCURY MARINE Applications; 410-21002, 50-44414, 50-44415, 50-77141, 50-79472, 50-79472-1, 50-79472T2, 50-884238T, 50-893893, 893893; LESTER 5388, 5389
$139.99
Specifications
| UNIT TYPE |
Starter |
| CRITICAL NOTE |
When Replacing Mercury #50-64975, It is Necessary to Use Drive #220-21007 to Ensure Proper Fit |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
8 |
| GEAR OD |
1.059″ |
| GEAR OD |
26.900mm |
| MOUNT HOLE ID 1 |
4.900mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
|
6.17″ / 156.8mm Long Field Case, (1) 1/4-20 Hole in DE Housing & (2) 5.3mm Holes in CE Housing |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SAB0014, SAB0015 |
| EMP |
4-5608 |
| J&N |
410-21002 |
| LESTER |
5388, 5389 |
| MERCURY MARINE |
50-44414, 50-44415, 50-77141, 50-79472, 50-79472-1, 50-79472T2, 50-884238T, 50-893893, 893893 |
| SIERRA MARINE |
18-5608, 18-5643 |
| UNITED TECHNOLOGIES |
1491624-M030SM, 1718328M030SM, 1718328-M030SM, 1718328MO30SM, 4820440, 4820440-M030SM, 4820540, 4820540-M030SM, SM14916, SM17183, SM48204, SM48205 |
Applications
| Make |
Model |
Engine |
Years |
| Mariner |
135CXL |
2L/121CI |
1993 – 2000 |
| Mariner |
135ELPTO |
2L/121CI |
1986 – 1988 |
| Mariner |
135EXLPTO |
2L/121CI |
1986 – 1988 |
| Mariner |
135L |
2L/121CI |
1989 – 2000 |
| Mariner |
135XL |
2L/121CI |
1989 – 2000 |
| Mariner |
150Magnum |
2.5L/153CI |
1992 – 1998 |
| Mariner |
150Magnum II |
2.5L/153CI |
1989 – 1991 |
| Mariner |
150Magnum III |
2.5L/153CI |
1994 – 2000 |
| Mariner |
150CXL |
2.5L/153CI |
1994 – 2000 |
| Mariner |
150CXL |
2L/121CI |
1989 – 1998 |
| Mariner |
150CXLSaltwater |
2.5L/153CI |
1999 – 2000 |
| Mariner |
150ELPT |
2L/121CI |
1979 – 1985 |
| Mariner |
150ELPTO |
2L/121CI |
1986 – 1988 |
| Mariner |
150ELXPTO |
2L/121CI |
1986 – 1988 |
| Mariner |
150EXLPT |
2L/121CI |
1979 – 1985 |
| Mariner |
150L |
2.5L/153CI |
1999 – 2000 |
| Mariner |
150L |
2L/121CI |
1989 – 1998 |
| Mariner |
150LJet 105 |
2L/121CI |
1995 – 1998 |
| Mariner |
150LXR6 |
2.5L/153CI |
1999 – 2000 |
| Mariner |
150XL |
2.5L/153CI |
1994 – 2000 |
| Mariner |
150XL |
2L/121CI |
1989 – 1998 |
| Mariner |
150XLSaltwater |
2.5L/153CI |
1999 – 2000 |
| Mariner |
175CXL |
2.3L/142CI |
1989 |
| Mariner |
175CXL |
2.5L/153CI |
1993 – 2000 |
| Mariner |
175ELPT |
2L/121CI |
1979 – 1980 |
| Mariner |
175ELPTO |
2.3L/142CI |
1985 – 1988 |
| Mariner |
175EXLPT |
2L/121CI |
1979 – 1980 |
| Mariner |
175EXLPTO |
2.3L/142CI |
1985 – 1988 |
| Mariner |
175L |
2.3L/142CI |
1989 – 1991 |
| Mariner |
175L |
2.5L/153CI |
1992 – 2000 |
| Mariner |
175LMagnum |
2.3L/142CI |
1991 |
| Mariner |
175LMagnum |
2.5L/153CI |
1992 – 1999 |
| Mariner |
175SKI |
2.3L/142CI |
1990 |
| Mariner |
175XL |
2.3L/142CI |
1989 – 1991 |
| Mariner |
175XL |
2.5L/153CI |
1992 – 2000 |
| Mariner |
200CXL |
2.3L/142CI |
1989 – 1990 |
| Mariner |
200CXL |
2.5L/153CI |
1991 – 2000 |
| Mariner |
200ELPT |
2.3L/142CI |
1980 – 1984 |
| Mariner |
200ELPTO |
2.3L/142CI |
1985 – 1988 |
| Mariner |
200EXLPT |
2.3L/142CI |
1980 – 1984 |
| Mariner |
200EXLPTO |
2.3L/142CI |
1985 – 1988 |
| Mariner |
200L |
2.3L/142CI |
1989 – 1990 |
| Mariner |
200L |
2.5L/153CI |
1991 – 2000 |
| Mariner |
200LJet 140 |
2.5L/153CI |
1995 – 2000 |
| Mariner |
200LMagnum |
2.5L/153CI |
1992 – 2000 |
| Mariner |
200XL |
2.3L/142CI |
1989 – 1990 |
| Mariner |
200XL |
2.5L/153CI |
1991 – 2000 |
| Mariner |
200XRI |
2.5L/153CI |
1994 – 1995 |
| Mariner |
220EFIELPTOMagnum |
2.3L/142CI |
1987 – 1988 |
| Mariner |
220EFIEXLPTOMagnum |
2.3L/142CI |
1987 – 1988 |
| Mariner |
250XL |
3.4L/207CI |
1989 – 1990 |
| Mariner |
250XXL |
3.4L/207CI |
1989 – 1990 |
| Mariner |
275CXL |
3.4L/207CI |
1991 – 1994 |
| Mariner |
275CXXL |
3.4L/207CI |
1991 – 1994 |
| Mariner |
275L |
3.4L/207CI |
1991 – 1993 |
| Mariner |
275XL |
3.4L/207CI |
1991 – 1994 |
| Mariner |
275XXL |
3.4L/207CI |
1991 – 1994 |
| Mercury Marine |
135CXL |
2L/121CI |
1990 – 2000 |
| Mercury Marine |
135ELPTOMarathon |
2L/121CI |
1986 – 1988 |
| Mercury Marine |
135EXLPTOMarathon |
2L/121CI |
1986 – 1988 |
| Mercury Marine |
135L |
2L/121CI |
1989 – 2000 |
| Mercury Marine |
135XL |
2L/121CI |
1989 – 2000 |
| Mercury Marine |
150CXL |
2.5L/153CI |
1995 – 2000 |
| Mercury Marine |
150CXL |
2L/121CI |
1989 – 1999 |
| Mercury Marine |
150CXLSaltwater |
2.5L/153CI |
1999 – 2005 |
| Mercury Marine |
150ELPT |
2L/121CI |
1978 – 1985 |
| Mercury Marine |
150ELPTO |
2L/121CI |
1986 – 1988 |
| Mercury Marine |
150ELPTOXR2 |
2L/121CI |
1984 – 1987 |
| Mercury Marine |
150ELPTOXR4 |
2.3L/142CI |
1988 – 1991 |
| Mercury Marine |
150ELXPTO |
2L/121CI |
1984 – 1988 |
| Mercury Marine |
150EXLPT |
2L/121CI |
1978 – 1985 |
| Mercury Marine |
150L |
2.5L/153CI |
1996 – 2005 |
| Mercury Marine |
150L |
2L/121CI |
1989 – 2005 |
| Mercury Marine |
150LJet 105 |
2L/121CI |
1995 – 1998 |
| Mercury Marine |
150LPro Max |
|
1998 |
| Mercury Marine |
150LSaltwater |
2.5L/153CI |
1999 – 2005 |
| Mercury Marine |
150LXR6 |
2.5L/153CI |
1999 – 2005 |
| Mercury Marine |
150SSPro Max |
|
1998 |
| Mercury Marine |
150XL |
2.5L/153CI |
1995 – 2000 |
| Mercury Marine |
150XL |
2L/121CI |
1989 – 1998 |
| Mercury Marine |
150XLSaltwater |
2.5L/153CI |
1999 – 2005 |
| Mercury Marine |
150XR6 |
2.5L/153CI |
1992 – 1998 |
| Mercury Marine |
150XRI |
2.5L/153CI |
1993 – 1995 |
| Mercury Marine |
175CXL |
2.3L/142CI |
1989 |
| Mercury Marine |
175CXL |
2.5L/153CI |
1992 – 2000 |
| Mercury Marine |
175ELPT |
2L/121CI |
1976 – 1981 |
| Mercury Marine |
175ELPTO |
2.3L/142CI |
1985 – 1988 |
| Mercury Marine |
175EXLPT |
2L/121CI |
1978 – 1981 |
| Mercury Marine |
175EXLPTO |
2.3L/142CI |
1985 – 1988 |
| Mercury Marine |
175L |
2.3L/142CI |
1989 – 1991 |
| Mercury Marine |
175L |
2.5L/153CI |
1992 – 2002 |
| Mercury Marine |
175XL |
2.3L/142CI |
1989 – 1991 |
| Mercury Marine |
175XL |
2.5L/153CI |
1992 – 2002 |
| Mercury Marine |
175XLI |
2.3L/142CI |
1991 |
| Mercury Marine |
175XRI |
2.5L/153CI |
1992 – 1995 |
| Mercury Marine |
2.4LRacing |
|
– |
| Mercury Marine |
2.5LRacing |
2.5L |
– |
| Mercury Marine |
200CXL |
2.3L/142CI |
1989 – 1990 |
| Mercury Marine |
200CXL |
2.5L/153CI |
1991 – 2005 |
| Mercury Marine |
200ELPT |
2.3L/142CI |
1978 – 1984 |
| Mercury Marine |
200ELPTO |
2.3L/142CI |
1984 – 1988 |
| Mercury Marine |
200ELPTOXRI |
2.3L/142CI |
1989 – 1991 |
| Mercury Marine |
200ELPTOXRI |
2.5L/153CI |
1992 – 1994 |
| Mercury Marine |
200EXLPT |
2.3L/142CI |
1978 – 1984 |
| Mercury Marine |
200EXLPTO |
2.3L/142CI |
1984 – 1988 |
| Mercury Marine |
200L |
2.3L/142CI |
1989 – 1990 |
| Mercury Marine |
200L |
2.5L/153CI |
1991 – 2005 |
| Mercury Marine |
200LJet 140 |
2.5L/153CI |
1994 – 2000 |
| Mercury Marine |
200LPromax Racing |
|
1998 – 1999 |
| Mercury Marine |
200SSPromax Racing |
|
1998 – 1999 |
| Mercury Marine |
200XL |
2.3L/142CI |
1989 – 1990 |
| Mercury Marine |
200XL |
2.5L/153CI |
1991 – 2005 |
| Mercury Marine |
200XRI |
2.5L/153CI |
1994 – 1995 |
| Mercury Marine |
220ELPTOLaser XRI |
2.3L/142CI |
1987 – 1988 |
| Mercury Marine |
220EXLPTOLaser XRI |
2.3L/142CI |
1987 – 1988 |
| Mercury Marine |
225CLPromax Racing |
2.5L/153CI |
1998 – 2000 |
| Mercury Marine |
225CSPromax Racing |
2.5L/153CI |
1998 – 2000 |
| Mercury Marine |
225LPromax Racing |
2.5L/153CI |
1998 – 2000 |
| Mercury Marine |
225SSPromax Racing |
2.5L/153CI |
1998 – 2000 |
| Mercury Marine |
250XL |
3.4L/207CI |
1989 – 1990 |
| Mercury Marine |
250XXL |
3.4L/207CI |
1989 – 1990 |
| Mercury Marine |
275CXL |
3.4L/207CI |
1991 – 1994 |
| Mercury Marine |
275CXXL |
3.4L/207CI |
1991 – 1994 |
| Mercury Marine |
275L |
3.4L/207CI |
1991 – 1993 |
| Mercury Marine |
275XL |
3.4L/207CI |
1989 – 1994 |
| Mercury Marine |
275XXL |
3.4L/207CI |
1989 – 1994 |
| Mercury Marine |
3.4LELPT |
3.4L/207CI |
1984 – 1987 |
| Mercury Marine |
3.4LEXLPT |
3.4L/207CI |
1984 – 1987 |
| Mercury Marine |
300ELPT |
3.4L/207CI |
1981 – 1983 |
| Mercury Marine |
300EXLPT |
3.4L/207CI |
1981 – 1983 |
