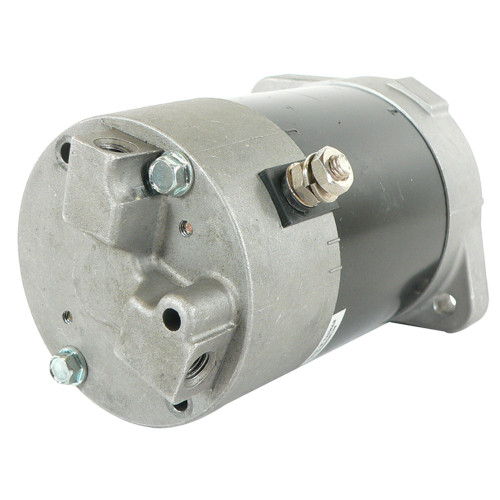

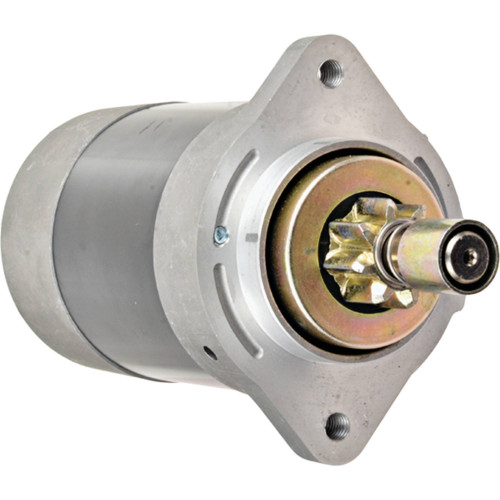

NEW Starter for SUZUKI Engine – Marine Outboard; 410-44090, 31100-87D00, 31100-87D10, 31100-92E00; LESTER 18308

$247.99

SAE J1171 Certified

Email
Categories: , , ,

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
ROTATION DIRECTION Counter Clockwise
VOLT 12
POWER 0.900 kw
HP 1.207
NUMBER OF TEETH 8
GEAR OD 1.102″
GEAR OD 28mm
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE ID 2 M8x1.25
MOUNT HOLE 2 TYPE Threaded

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD S114-674, SHI0091
EMP 4-6417
HITACHI S114-551, S114-551A, S114-674
J&N 410-44014
LESTER 18308
MERCURY MARINE 8M6007391
NISSAN 23300K8405, 23300-K8405
SIERRA MARINE 18-6417
SUZUKI 31100-87D00, 31100-87D10, 31100-92E00

Applications

Make Model Engine Years
Suzuki DT100SF 86CI 1989 – 1990
Suzuki DT100TCL 86CI 1989 – 2000
Suzuki DT100TCX 86CI 1989 – 1990
Suzuki DT150SS 164CI 1986 – 1991
Suzuki DT150SSNSuper Six 164CI 1992
Suzuki DT150STCL 164CI 1993 – 2003
Suzuki DT150TCL 164CI 1986 – 1994
Suzuki DT150TCX 164CI 1986 – 2003
Suzuki DT150TCXG 164CI 1990 – 2003
Suzuki DT175TCL 164CI 1987 – 1992
Suzuki DT175TCX 164CI 1987 – 1992
Suzuki DT200AEL 164CI 1987
Suzuki DT200AEX 164CI 1987
Suzuki DT200TCL 164CI 1986 – 2000
Suzuki DT200TCX 164CI 1986 – 2000
Suzuki DT200TCXG 164CI 1990 – 2000
Suzuki DT200VLExante 164CI 1988 – 1992
Suzuki DT200VXExante 164CI 1988 – 1992
Suzuki DT200VXG 164CI 1990 – 1991
Suzuki DT225TCL 164CI 1990 – 2000
Suzuki DT225TCX 164CI 1990 – 2003
Suzuki DT225TCXG 164CI 1993 – 2000
Suzuki DT90TCL 86CI 1989 – 1997
Suzuki DT90TCX 86CI 1989 – 1990
Suzuki PU140Jet 108CI 1989 – 1997
