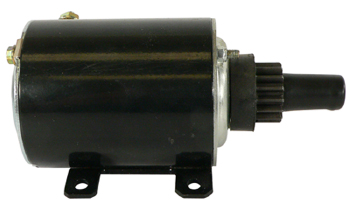

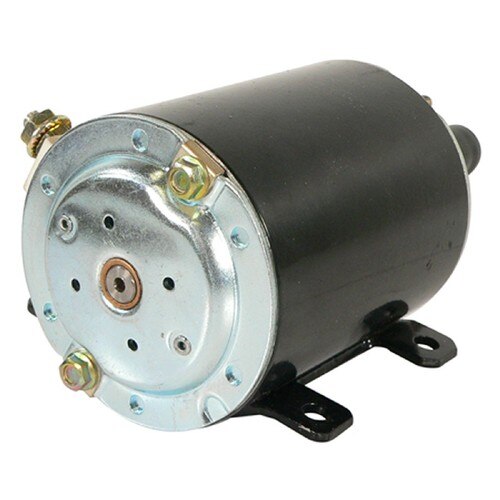

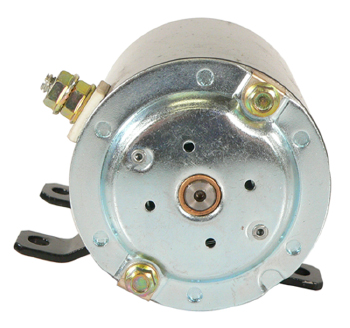

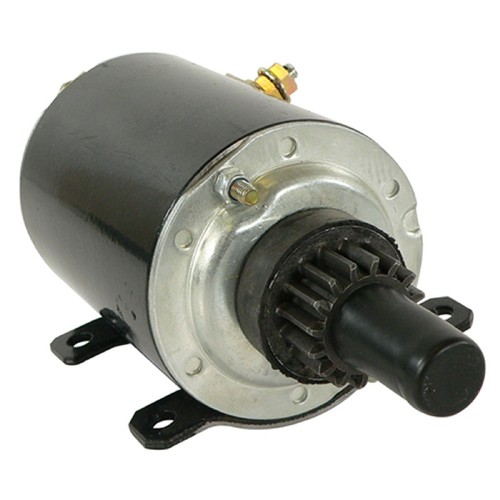

NEW Starter for TECUMSEH Air Cooled Engines; 410-22007, 33202, 33605, 35763, 35763A, 36463, 36680; LESTER 5749
$89.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 16 |
| GEAR OD | 1.283″ |
| GEAR OD | 32.600mm |
| MOUNT HOLE ID 1 | 7mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 7mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| 3.689″/93.7mm Long Field Case, 0.398″/10.1mm Shaft Diameter, Fourth Mounting Hole Diameter 7mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| J&N ELECTRICAL PRODUCTS | 410-22002, 410-22007 |
| JOHN DEERE | AM30931 |
| LESTER | 5749 |
| TECUMSEH | 33202, 33605, 35763, 35763A, 36463, 36680 |
| UNITED TECHNOLOGIES | 5717340, SM57173 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| All | TECUMSEH | Air Cooled | HM 70-100 |
| All | TECUMSEH | Air Cooled | OVM 120 |
| All | TECUMSEH | Air Cooled | OVXL 120 |
| All | TECUMSEH | Air Cooled | TVM 170-220 |
| All | TECUMSEH | Air Cooled | TVXL 170-220 |
