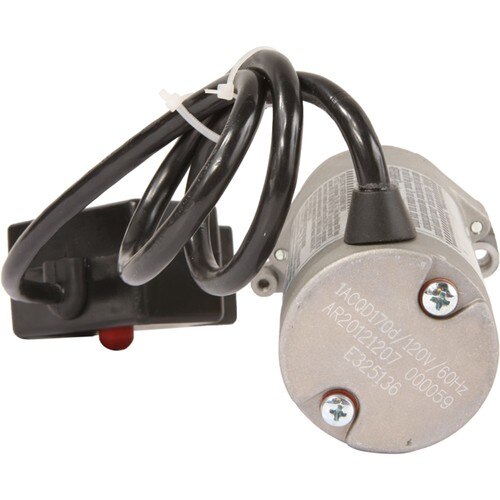

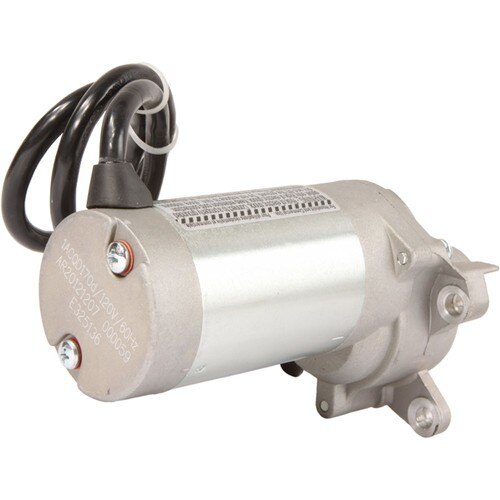

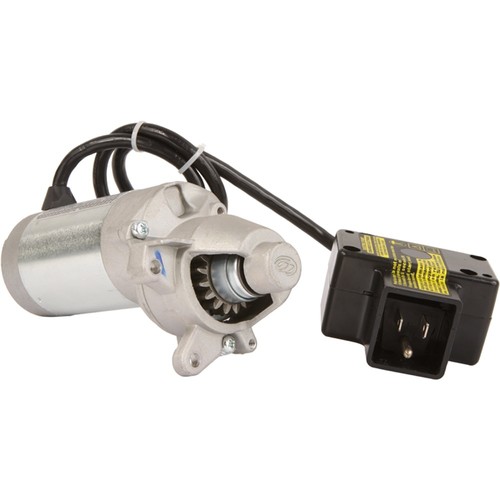

NEW Starter for TORO 38742 & 38744 Snowblowers w/LCT ENGINES; 410-22064, 119-1952, 136-7767, 1ACQD170D, ACQD170D; LESTER 19483
$209.99
USA PLUG, EUROPEAN PLUG
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 120 |
| NUMBER OF TEETH | 17 |
| LENGTH | 186.900 mm |
| LENGTH | 7.358″ |
| MOUNT HOLE ID 1 | 6.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 1.870″ |
| MOUNTING EAR DISTANCE 1 | 47.500mm |
| MOUNTING EAR DISTANCE 2 | 1.870″ |
| MOUNTING EAR DISTANCE 2 | 47.500mm |
| REGISTRY OD | 2.244″ |
| REGISTRY OD | 57mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0059 |
| J & N | 410-22064 |
| LESTER | 19483 |
| REFERENCE NUMBER | 1ACQD170D, ACQD170D |
| TORO | 119-1952, 136-7767 |
