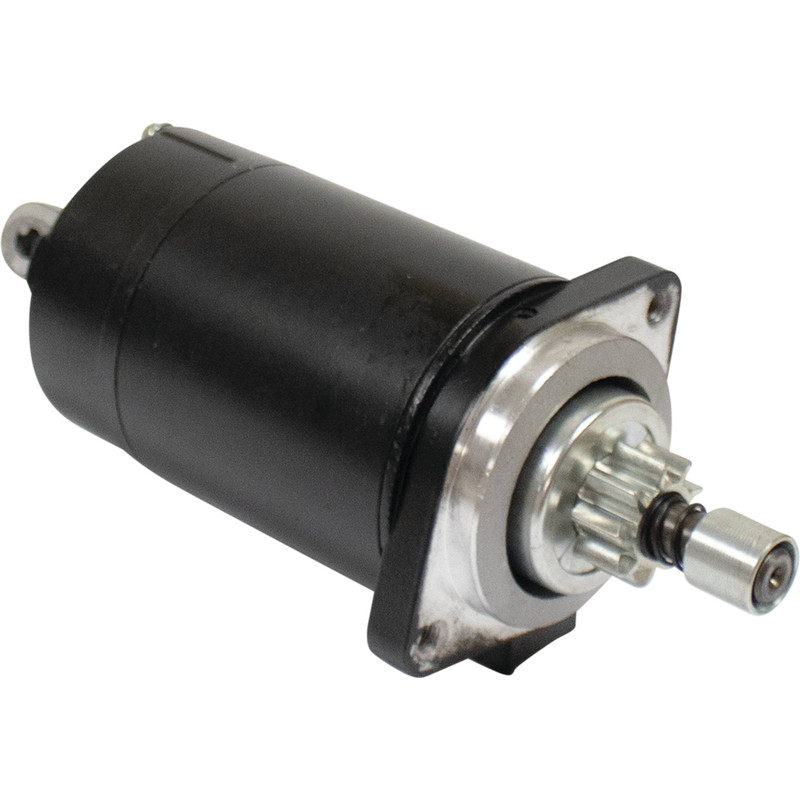

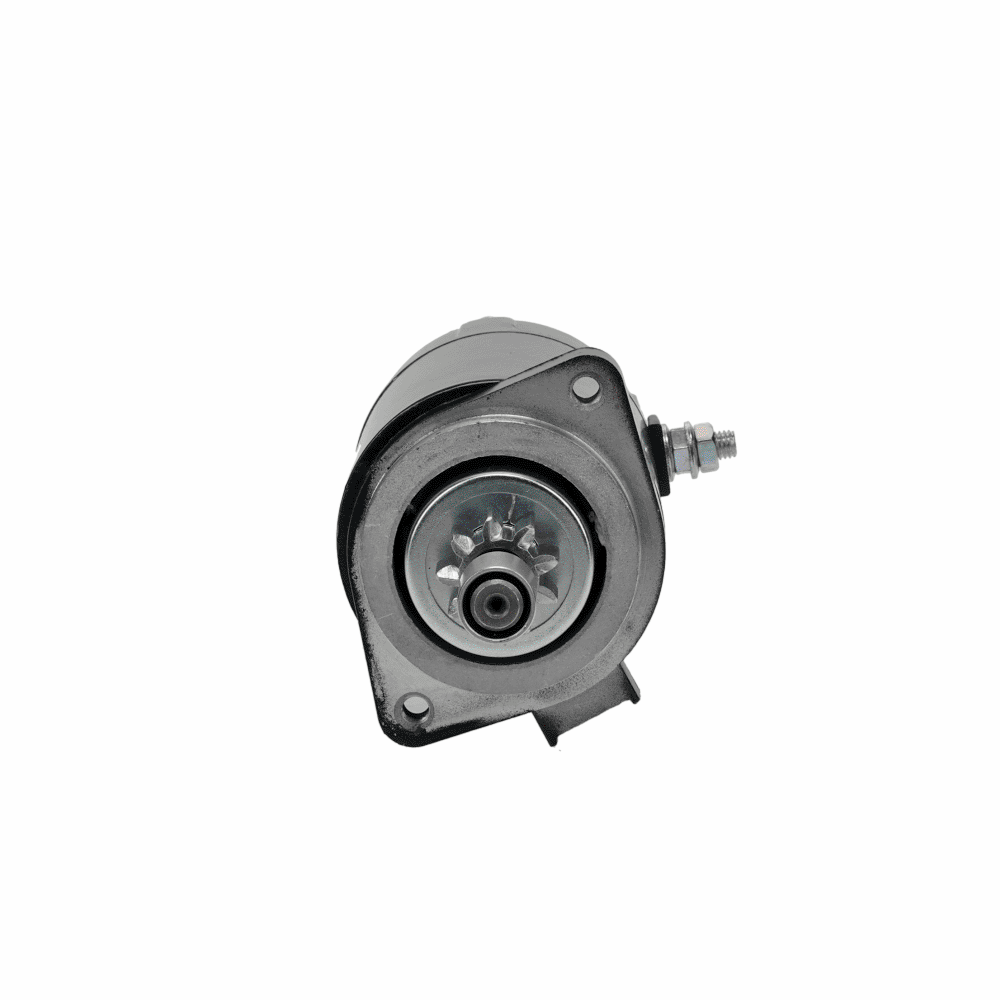

Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| POWER |
1.100 kw |
| HP |
1.475 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.161″ |
| GEAR OD |
29.500mm |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
M8x1.25 |
| MOUNT HOLE 2 TYPE |
Threaded |
| MOUNT HOLE ID 3 |
8.800mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
S114-323C, SHI0031 |
| EMP |
4-6413 |
| HITACHI |
S114-323, S114-323A, S114-323B, S114-323C, S114-323CN |
| LESTER |
18314 |
| LUCAS ELECTRIC |
LRS01469 |
| MERCURY MARINE |
8M6007413 |
| SIERRA MARINE |
18-6413 |
| YAMAHA |
6E5-81800-10, 6E5-81800-12 |
Applications
| Make |
Model |
Engine |
Years |
| Yamaha |
115ETL |
|
1984 – 1990 |
| Yamaha |
115ETLJD |
|
1987 – 1990 |
| Yamaha |
115ETX |
|
1984 – 1990 |
| Yamaha |
115TJR |
|
1991 – 1996 |
| Yamaha |
115TLR |
|
1991 – 1996 |
| Yamaha |
115TXR |
|
1991 – 1995 |
| Yamaha |
130ETL |
|
1988 – 1990 |
| Yamaha |
130ETX |
|
1988 – 1990 |
| Yamaha |
130TLR |
|
1991 – 1996 |
| Yamaha |
130TXR |
|
1991 – 1995 |
| Yamaha |
150ETL |
|
1985 – 1990 |
| Yamaha |
150ETX |
|
1985 – 1990 |
| Yamaha |
150TJR |
|
1996 |
| Yamaha |
150TLR |
|
1991 – 1996 |
| Yamaha |
150TXR |
|
1991 – 1995 |
| Yamaha |
175ETL |
|
1985 – 1990 |
| Yamaha |
175ETX |
|
1985 – 1990 |
| Yamaha |
175TLR |
|
1991 – 1996 |
| Yamaha |
175TXR |
|
1991 – 1995 |
| Yamaha |
200ETL |
|
1984 – 1990 |
| Yamaha |
200ETLJD |
|
1989 – 1990 |
| Yamaha |
200ETX |
|
1984 – 1990 |
| Yamaha |
200TJR |
|
1991 – 1995 |
| Yamaha |
200TLR |
|
1991 – 1996 |
| Yamaha |
200TXR |
|
1991 – 1995 |
| Yamaha |
C115TLR |
|
1991 – 1996 |
| Yamaha |
C115TXR |
|
1992 – 1996 |
| Yamaha |
C150TLR |
|
1996 |
| Yamaha |
C150TXR |
|
1996 |
| Yamaha |
F40TLR |
|
1999 |
| Yamaha |
F50TJR |
|
2001 – 2002 |
| Yamaha |
F50TLH |
|
1996 – 1998 |
| Yamaha |
F50TLR |
|
1996 – 2002 |
| Yamaha |
L130ETX |
|
1989 – 1990 |
| Yamaha |
L130TXR |
|
1991 – 1996 |
| Yamaha |
L150ETX |
|
1986 – 1990 |
| Yamaha |
L150TXR |
|
1991 – 1996 |
| Yamaha |
L200ETX |
|
1986 – 1990 |
| Yamaha |
L200TLR |
|
1995 |
| Yamaha |
L200TXR |
|
1991 – 1996 |
| Yamaha |
P115TLR |
|
1993 – 1996 |
| Yamaha |
P150TLR |
|
1991 – 1996 |
| Yamaha |
P175TLR |
|
1994 – 1996 |
| Yamaha |
PRO150L |
|
1986 – 1990 |
| Yamaha |
S115TLR |
|
1996 |
| Yamaha |
S115TXR |
|
1996 |
| Yamaha |
S130TLR |
|
1996 |
| Yamaha |
S130TRX |
|
1996 |
| Yamaha |
S150TLR |
|
1996 |
| Yamaha |
S150TSR |
|
1996 |
| Yamaha |
S175TXR |
|
1996 |
| Yamaha |
S200TXR |
|
1996 |
| Yamaha |
T50TLR |
|
1996 – 2002 |
| Yamaha |
V6 Special |
|
1985 – 1986 |
