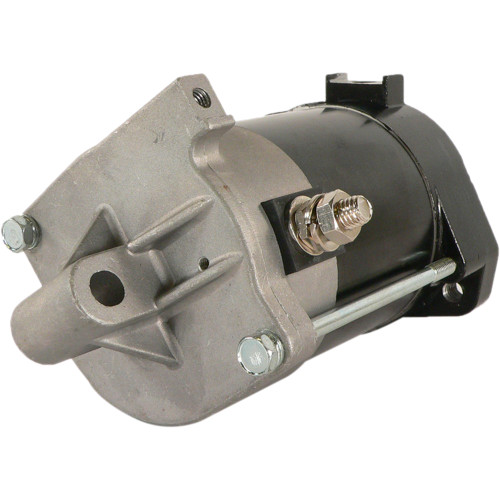

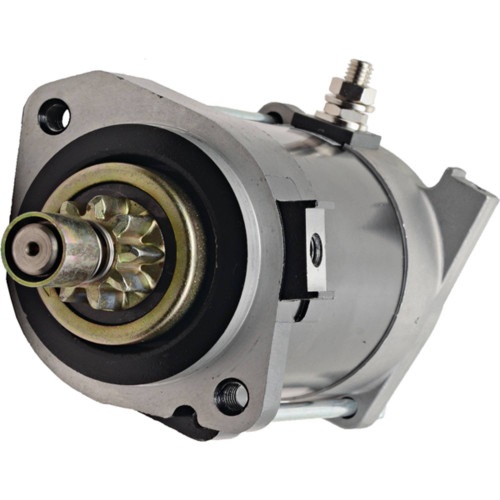

NEW Starter for YAMAHA F50TLR, F60TJR, F60TLR, T50TLR & T60TLR Engine – Marine Outboard; 410-44074, 69L81800-00-00, 69W81800-00-00; LESTER 18444
$279.99
SAE J1171 Certified
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.106″ |
| GEAR OD | 28.100mm |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| WARRANTY | 1 Year |
| 9.3mm x 10.5mm Slotted Mounting Hole in SRE Housing |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SHI0120 |
| EMP | 4-6942 |
| HITACHI | S114-682 |
| J&N | 410-44074 |
| LESTER | 18444 |
| MERCURY MARINE | 8M6007428 |
| SIERRA MARINE | 18-6942 |
| YAMAHA | 69L81800-00-00, 69W81800-00-00 |
Applications
| Make | Model | Engine | Years |
| Yamaha | F50TLR | 2003 – 2004 | |
| Yamaha | F60TJR | 2002 – 2004 | |
| Yamaha | F60TLR | 2002 – 2004 | |
| Yamaha | T50TLR | 2003 – 2004 | |
| Yamaha | T60TLR | 2003 – 2004 |
