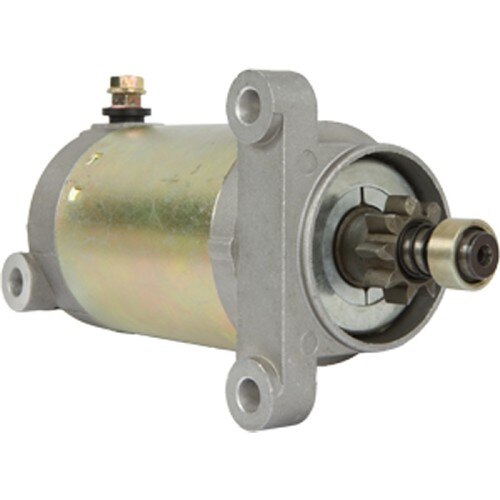

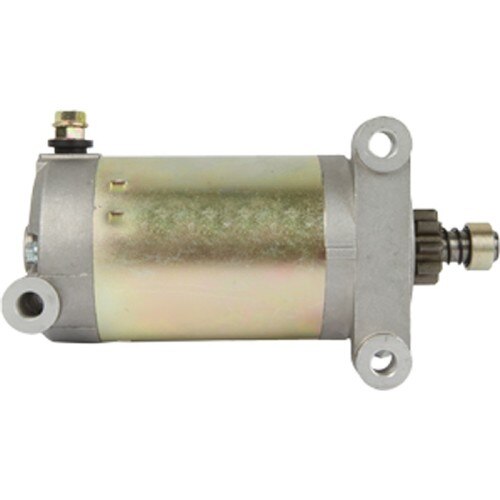

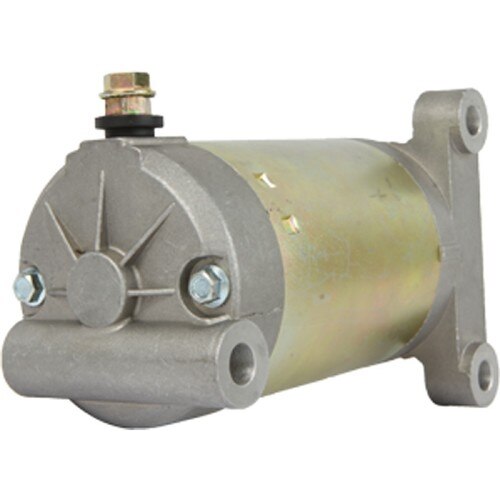

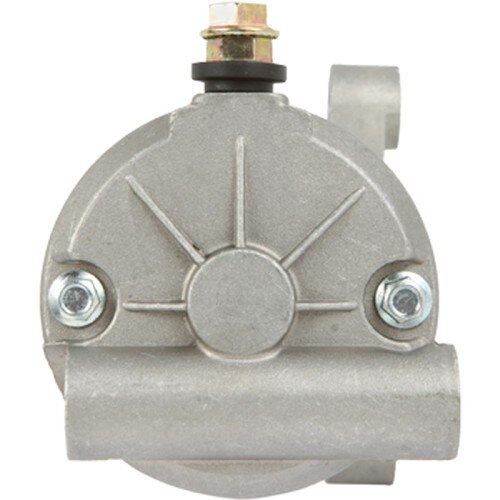

NEW Starter for YAMAHA Snowmobiles Various Models; SND0521, 410-54090, 228000-5690, 8CW81800-00-0, 8CW81800-00-00, 8CW81800-01-0, 8CW81800-01-00, 8CW-B1800-00-00; LESTER 18891
$149.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.102″ |
| GEAR OD | 28mm |
| MOUNT HOLE ID 1 | 8mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0521 |
| DELCO | RS41312 |
| DENSO | 228000-5690 |
| J&N | 410-54090 |
| LESTER | 18891 |
| WAI | 18891N |
| WILSON SMALL ENGINE | 71-29-18891 |
| YAMAHA | 8CW81800-00-0, 8CW81800-00-00, 8CW81800-01-0, 8CW81800-01-00, 8CW-B1800-00-00 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1997 - 1998 | YAMAHA | VMax 500 XT VX500XT | 494cc |
| 1997 - 1998 | YAMAHA | VMax 500 XTC VX500XTC | 494cc |
| 1997 - 1998 | YAMAHA | VMax 600 XT VX600XT | 593cc |
| 1997 - 1998 | YAMAHA | VMax 600 XTC VX600XTC | 593cc |
| 1997 - 1999 | YAMAHA | VMax 600 SX VX600SX | 593cc |
| 1997 - 1999 | YAMAHA | VMax 700 SX VX700SXB | 698cc |
| 1997 - 2001 | YAMAHA | Venture 500 VT500 | 494cc |
| 1997 - 2002 | YAMAHA | Mountain Max 600 MM600 | 600cc |
| 1997 - 2003 | YAMAHA | Mountain Max 700 MM700 | 698cc |
| 1997 | YAMAHA | Venture 600 VT600 | 494cc |
| 1998 | YAMAHA | VMax 500 XTC Deluxe VX500XTCD | 494cc |
| 1998 | YAMAHA | VMax 500 XTR VX500XTR | 494cc |
| 1998 | YAMAHA | VMax 600 SXS VX600SXS | 593cc |
| 1998 | YAMAHA | VMax 600 XTC Deluxe VX600XTCD | 593cc |
| 1998 | YAMAHA | VMax 600 XTR VX600XTR | 593cc |
| 1998 | YAMAHA | VMax 700 SXS VX700SXS | 698cc |
| 1998 | YAMAHA | VMax 700 XTC Deluxe VX700XTCD | 698cc |
| 1998 | YAMAHA | VMax 700 XTC VX700XTC | 698cc |
| 1998 | YAMAHA | VMax 700 XTP VX700XTCP | 698cc |
| 1998 - 2003 | YAMAHA | Venture 600 VT600 | 593cc |
| 1998 - 2003 | YAMAHA | Venture 700 VT700 | 698cc |
| 1999 | YAMAHA | VMax 500 SX VX500SXB | 494cc |
| 1999 - 2000 | YAMAHA | VMax 500 VX500 | 494cc |
| 1999 - 2000 | YAMAHA | Venture XL VT500XL | 494cc |
| 1999 - 2001 | YAMAHA | Phazer PZ500 | 485cc |
| 1999 - 2001 | YAMAHA | VMax 500 Deluxe VX500DX | 494cc |
| 1999 | YAMAHA | VMax 600 Deluxe VX600ER | 593cc |
| 1999 | YAMAHA | VMax 600 VX600 | 593cc |
| 1999 | YAMAHA | VMax 700 Deluxe VX700ER | 698cc |
| 1999 - 2001 | YAMAHA | VMax 700 VX700 | 698cc |
| 2000 - 2001 | YAMAHA | Phazer Mountain Lite PZ500ML | 485cc |
| 2000 - 2001 | YAMAHA | SX500 | 494cc |
| 2000 - 2001 | YAMAHA | SX700 | 698cc |
| 2000 - 2002 | YAMAHA | SRX700 | 698cc |
| 2000 - 2003 | YAMAHA | SX600 | 593cc |
| 2000 | YAMAHA | VMax 600 Deluxe VX600DX | 593cc |
| 2001 | YAMAHA | Phazer Deluxe PZ500DX | 485cc |
| 2001 | YAMAHA | VMax 700 Deluxe VX700DX | 698cc |
| 2002 - 2003 | YAMAHA | VMax 600 ER VX600ER | 593cc |
| 2002 | YAMAHA | VMax 700 ER VX700ER | 698cc |
| 2003 - 2006 | YAMAHA | SX Viper ER SXV70ER | 696cc |
| 2003 - 2006 | YAMAHA | SX Viper Mountain SXV70M | 696cc |
| 2003 | YAMAHA | SX Viper SXV70 | 696cc |
| 2004 - 2006 | YAMAHA | SX Venom ER SXV60ER | 696cc |
| 2004 - 2006 | YAMAHA | SX Venom SXV60 | 696cc |
| 2004 | YAMAHA | SX Viper S SXV70 | 696cc |
| 2004 - 2006 | YAMAHA | Venture 600 VT60 | 593cc |
| 2004 | YAMAHA | Venture 700 VT70 | 698cc |
| 2005 - 2006 | YAMAHA | SX Viper SXV70 | 696cc |
