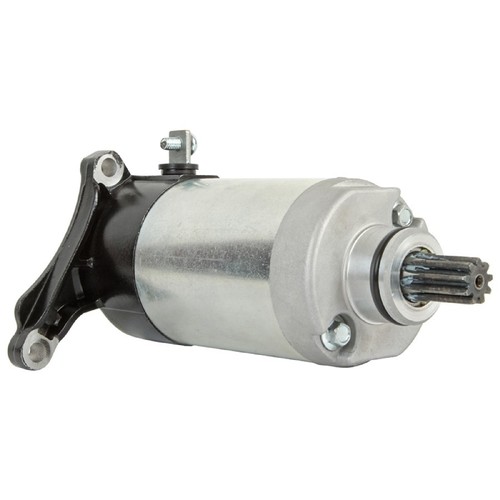

NEW Starter for YAMAHA XT225 Motorcycles/ Off-Road; SMU0355, 410-54156, 5RS-81890-00-00; LESTER 18847
$139.99
SEARCH: 485992 (OE PAINT COLORS VARIED)
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.559″ |
| GEAR OD | 14.200mm |
| MOUNT HOLE ID 1 | 6.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0355 |
| J & N | 410-54156 |
| ARROWHEAD (OLD) | SMU0357 |
| LESTER | 18847 |
| YAMAHA | 5RS-81890-00-00 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2003 - 2007 | YAMAHA | XT225 | 223cc |
