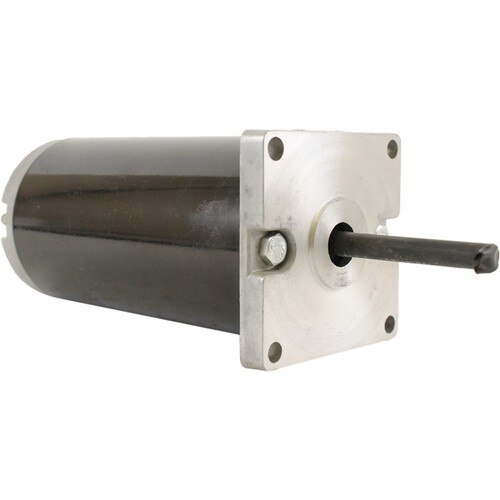

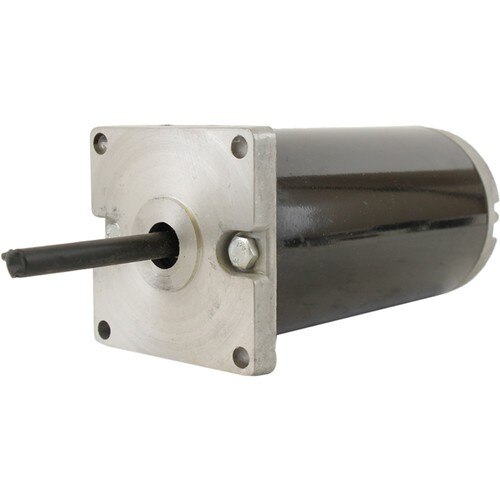

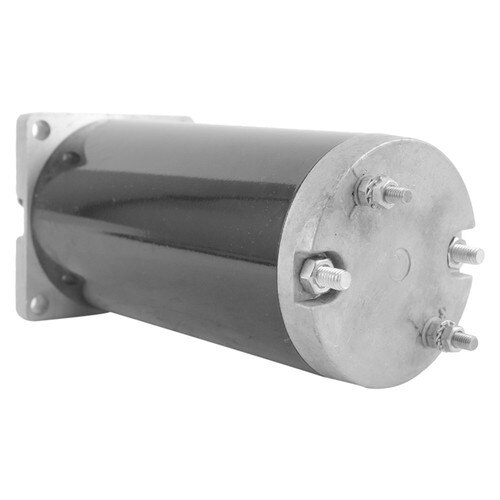

NEW Tarp Cover Motor for JOHNSON ROLLRITE Asphalt Truck Applications; 430-22017, 540-028, W-8803; LESTER 10717
$164.30 $185.66
INFO: wo/ARMATURE BREAK
SEARCH: w/ELECTRICALLY DISENGAGED ARMATURE BRAKE (PREVENTS MOVEMENT)
Specifications
| UNIT TYPE | Tarp Cover Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| POWER | 0.400 kw |
| HP | 0.536 |
| AMPS | 25 |
| RPM | 3000 |
| OD | 3.150″ |
| OD | 80 mm |
| SHAFT OD | 0.315″ |
| SHAFT OD | 8mm |
| LENGTH | 236 mm |
| LENGTH | 9.291″ |
| TERMINAL 2 SIZE | 10-32 |
| TERMINAL 3 SIZE | 10-32 |
| SHAFT | 3mm Roll Pin Hole |
| WARRANTY | 1 Year |
| (4) 7mm Unthreaded Mounting Holes |
