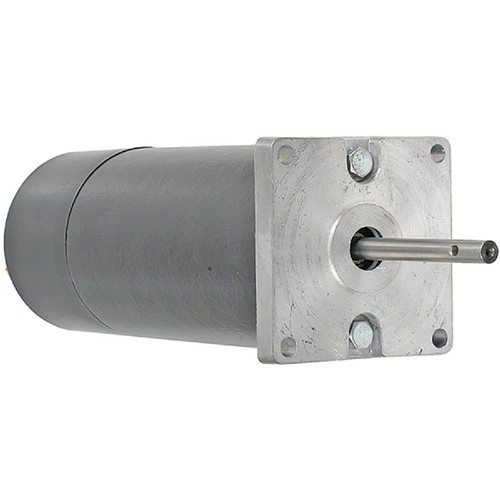

NEW Tarp Cover Motor for TRUCK Applications; 430-22020, RR101S, RR101SB, RR101SC, RR101SD
$169.99
INFO: w/ELECTRICALLY DISENGAGED ARMATURE BRAKE (PREVENTS MOVEMENT)
SEARCH: wo/ARMATURE BREAK
Specifications
| UNIT TYPE | Power Shift Control Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| POWER | 0.400 kw |
| HP | 0.536 |
| OD | 3.150″ |
| OD | 80 mm |
| SHAFT OD | 0.315″ |
| SHAFT OD | 8mm |
| LENGTH | 11.496″ |
| LENGTH | 292 mm |
| TERMINAL 2 SIZE | 10-32 |
| TERMINAL 3 SIZE | 10-32 |
| SHAFT | 3mm Roll Pin Hole |
| WARRANTY | 1 Year |
| (4) 7mm Mounting Holes, Electrically Disengaged Armature Brake Prevents Movement |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 430-22020 |
| J&N ELECTRICAL PRODUCTS | 430-22017 |
| ROLL RIGHT TARP SYSTEMS | RR101S, RR101SB, RR101SC, RR101SD |
| WESTERN MOTORS | W-8003 |
Part fit
| Year | Make | Model |
|---|---|---|
| Year | Make | Model |
| All | DUMORE | Various |
