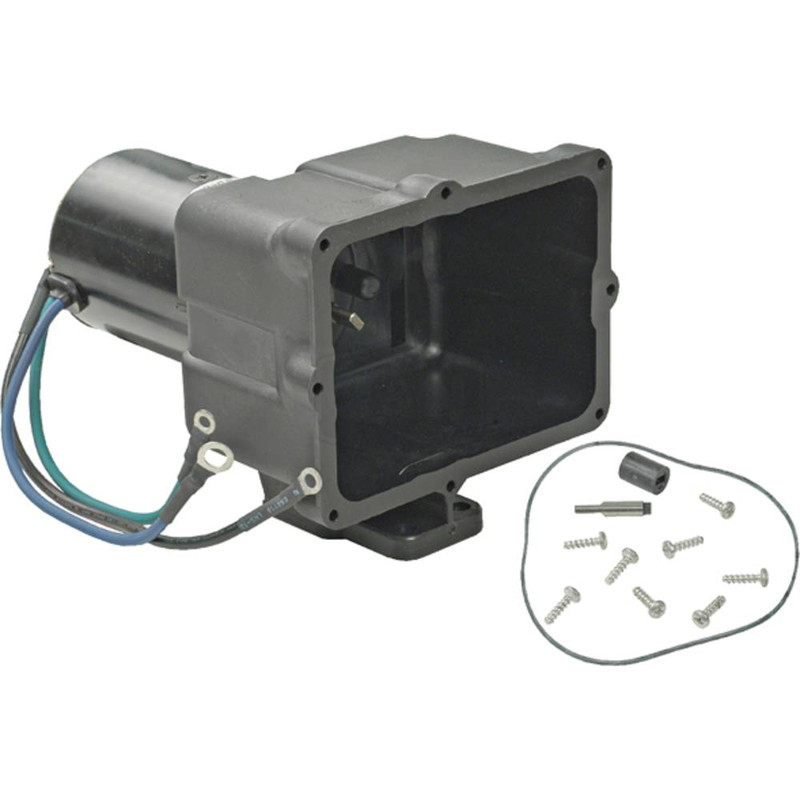

NEW Tilt & Trim Motor for MERCRUISER, VOLVO PENTA & BMW MARINE Applications; 430-20009, 67914A2, 76395A2, 76395A5, 88475A5, 92975A28, 92975A32, 92975A6, 93247A4, 93247A7; LESTER 10814

Name: NEW Tilt &amp; Trim Motor for MERCRUISER, VOLVO PENTA &amp; BMW MARINE Applications; 430-20009, 67914A2, 76395A2, 76395A5, 88475A5, 92975A28, 92975A32, 92975A6, 93247A4, 93247A7; LESTER 10814
SKU: 7920
Availability: InStock

$274.99

Categories: Motor, Tilt/ Trim Motors

Specifications

UNIT TYPE	Tilt/Trim Motor
CURRENT TYPE	DC
ROTATION DIRECTION	Reversible
VOLT	12
OD	3.071″
OD	78 mm
SHAFT OD	0.311″
SHAFT OD	7.900mm
LENGTH	207.700 mm
LENGTH	8.177″
TERMINAL 2 SIZE	Wire
TERMINAL 3 SIZE	Wire
TERMINAL 4 SIZE	Wire
SHAFT	Tanged Shaft
WARRANTY	1 Year
	Includes 3-Wire Harness With 3 Ring Terminals and Reservoir

Applications

MAKE	MODEL	ENGINE	YEAR
Mercury Marine	115EL 2-Stroke	115H	1979, 1980, 1981, 1982
Mercury Marine	115ELPT 2-Stroke	115H	1979, 1980, 1981, 1982, 1983
Mercury Marine	115EXLPT 2-Stroke	115H	1979, 1980, 1981, 1982, 1983
Mercury Marine	115HP	115H	1977, 1978
Mercury Marine	140EL	140H	1978, 1979, 1980
Mercury Marine	140ELPT	140H	1978, 1979, 1980
Mercury Marine	150ELPT OI	150H	1984, 1985
Mercury Marine	150ELPT	150H	1979, 1980, 1981, 1982, 1983, 1984, 1985
Mercury Marine	150EXLPT OI	150H	1984, 1985
Mercury Marine	150EXLPT	150H	1979, 1980, 1981, 1982, 1983, 1984, 1985
Mercury Marine	150HP	150H	1977
Mercury Marine	150XR2 ELPTO	150H	1984, 1985
Mercury Marine	175ELPT OI	175H	1985
Mercury Marine	175ELPT	175H	1979, 1980, 1981
Mercury Marine	175ELPTO	175H	1985, 1986, 1987, 1988
Mercury Marine	175EXLPT OI	175H	1985
Mercury Marine	175EXLPT	175H	1979, 1980, 1981
Mercury Marine	175EXLPTO	175H	1985, 1986, 1987, 1988
Mercury Marine	200ELPT OI	200H	1984, 1985
Mercury Marine	200ELPT	200H	1979, 1980, 1981, 1982, 1983, 1984
Mercury Marine	200ELPTO	200H	1985, 1986, 1987, 1988
Mercury Marine	200EXLPT OI	200H	1984, 1985
Mercury Marine	200EXLPT	200H	1979, 1980, 1981, 1982, 1983, 1984
Mercury Marine	200EXLPTO	200H	1985, 1986, 1987, 1988
Mercury Marine	225ELPT	225H	1981
Mercury Marine	225EXLPT	225H	1981
Mercury Marine	35E	35H	1984, 1985
Mercury Marine	35EH	35H	1984
Mercury Marine	35EL	35H	1984, 1985
Mercury Marine	35ELH	35H	1984, 1985
Mercury Marine	35ELO	35H	1986
Mercury Marine	35ELPT	35H	1985
Mercury Marine	35ELPTO	35H	1986
Mercury Marine	35EO	35H	1986
Mercury Marine	35M	35H	1984, 1985, 1986
Mercury Marine	35ML	35H	1984, 1985, 1986
Mercury Marine	45ELHO	45H	1986
Mercury Marine	45ELHO	45H	1987, 1988
Mercury Marine	45ELHPTO	45H	1988
Mercury Marine	45ELO	45H	1986
Mercury Marine	45ELO	45H	1987, 1988, 1989
Mercury Marine	45ELPTO	45H	1986
Mercury Marine	45ELPTO	45H	1987, 1988, 1989
Mercury Marine	45MLH	45H	1986
Mercury Marine	45MLH	45H	1987, 1988, 1989
Mercury Marine	50E 2-Stroke	50H	1980, 1981, 1982, 1983, 1984
Mercury Marine	50EH 2-Stroke	50H	1982, 1983, 1984
Mercury Marine	50EL 2-Stroke	50H	1980, 1981, 1982, 1983, 1984, 1985
Mercury Marine	50ELH 2-Stroke	50H	1981, 1982, 1983, 1984, 1985
Mercury Marine	50ELO 2-Stroke	50H	1986, 1987
Mercury Marine	50ELPT 2-Stroke	50H	1982, 1983, 1984, 1985
Mercury Marine	50ELPTO 2-Stroke	50H	1986, 1987
Mercury Marine	50EO 2-Stroke	50H	1986, 1987
Mercury Marine	50M 2-Stroke	50H	1980, 1981, 1982, 1983, 1984
Mercury Marine	50ML 2-Stroke	50H	1980, 1981, 1982, 1983, 1984
Mercury Marine	50MLH 2-Stroke	50H	1985
Mercury Marine	60E 2-Stroke	60H	1984
Mercury Marine	60EL 2-Stroke	60H	1984, 1985
Mercury Marine	60ELO 2-Stroke	60H	1986, 1987
Mercury Marine	60ELPT 2-Stroke	60H	1984, 1985
Mercury Marine	60ELPTO 2-Stroke	60H	1986, 1987
Mercury Marine	60EO 2-Stroke	45H	1987
Mercury Marine	70E	70H	1980, 1981, 1982, 1983
Mercury Marine	70EL	70H	1980, 1981, 1982, 1983
Mercury Marine	70ELPT	70H	1982, 1983
Mercury Marine	80E	80H	1980, 1981, 1982
Mercury Marine	80EL	80H	1980, 1981, 1982, 1983
Mercury Marine	80ELPT	80H	1982, 1983
Mercury Marine	90EL 2-Stroke	90H	1979, 1980, 1981, 1982, 1983
Mercury Marine	90ELPT 2-Stroke	90H	1979, 1980, 1981, 1982, 1983
Mercury Marine	90HP	90H	1978
Mercury Marine	All Models	Variou
Mercury Marine	V150ELPT	150H	1977
Mercury Marine	V150ELPT	150H	1978
Mercury Marine	V150EXLPT	150H	1978
Mercury Marine	V175ELPT	175H	1978
Mercury Marine	V175EXLPT	175H	1978
Mercury Marine	V200ELPT	200H	1978
Mercury Marine	V200EXLPT	200H	1978
Volvo Penta	All Models	Various

Manufacturer Name	Manufacturer Part #
ARROWHEAD	TRM0005
EMP	Apr-63
J&N ELECTRICAL PRODUCTS	430-20009
LESTER	10814
MERCURY MARINE	67914A2, 76395A2, 76395A5, 88475A5, 92975A28, 92975A32, 92975A6, 93247A4, 93247A7
PRESTOLITE	40-405, 40-413, ERH4102, HYC5009
SIERRA MARINE	18-6763
