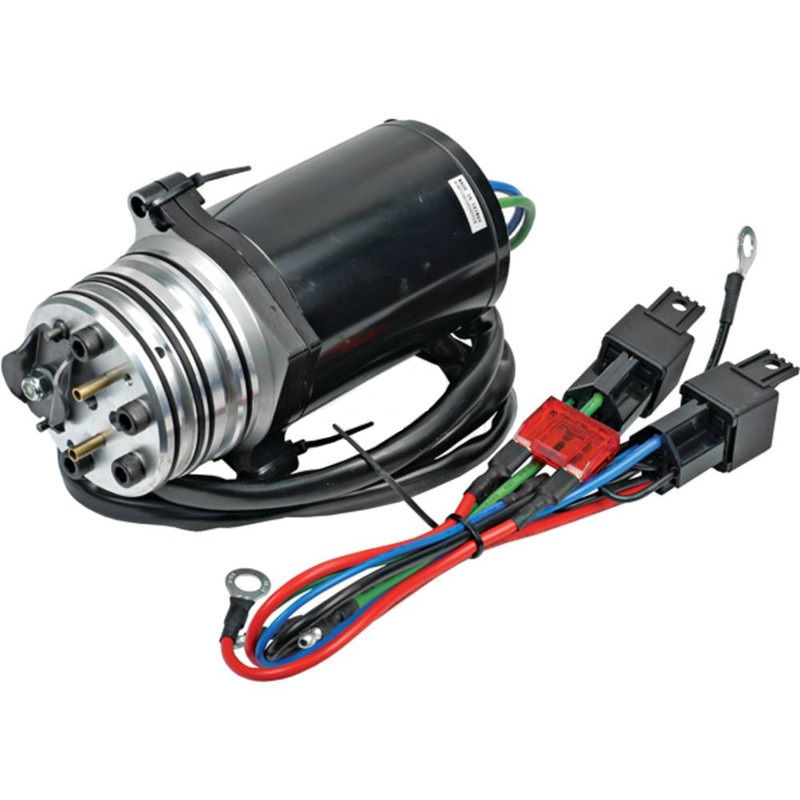

NEW Tilt/Trim Motor Conversion Kit for MERCURY Engines – Marine; 430-22012, 826729A10, 99186, 99186-1, 99186T, 18-6273-1; LESTER 10815P, 10858
$359.99
Motor Conversion Kit
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CRITICAL NOTE | The Replacement Assembly Comes With An Updated 2-Wire Motor, Updated Relay And Harness Kit |
| LENGTH | 172 mm |
| LENGTH | 6.772″ |
| OD | 3.071″ |
| OD | 78 mm |
| VOLT | 12 |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| TERMINAL 2 SIZE | Spade |
| TERMINAL 3 SIZE | Spade |
| TERMINAL 4 SIZE | Spade |
| WARRANTY | 1 Year |
| Replaces Square Eaton & Round Prestolite Style Units. Replacement Tilt/Trim Motor & Cartridge Pump. Services 3 Ram, 3 Wire Systems |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0029, TRM0056 |
| EMP | 4-6273-1 |
| J&N ELECTRICAL PRODUCTS | 430-22012 |
| LESTER | 10815P, 10858 |
| MERCURY MARINE | 826729A10, 99186, 99186-1, 99186T |
| SIERRA MARINE | 18-6273-1 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Mercury Marine | 100ELPTO 2-Stroke | 100H | 1988, 1989 |
| Mercury Marine | 100ELXLPTO 2-Stroke | 100H | 1988, 1989 |
| Mercury Marine | 115EL 2-Stroke | 115H | 1984, 1985 |
| Mercury Marine | 115ELPT 2-Stroke | 115H | 1984, 1985 |
| Mercury Marine | 115ELPTO 2-Stroke | 115H | 1986, 1987, 1988 |
| Mercury Marine | 115ELPTO 2-Stroke | 115H | 1989 |
| Mercury Marine | 115EXLPT 2-Stroke | 115H | 1984, 1985 |
| Mercury Marine | 115EXLPTO 2-Stroke | 115H | 1986, 1987, 1988 |
| Mercury Marine | 115EXLPTO 2-Stroke | 115H | 1989 |
| Mercury Marine | 135ELPTO 2-Stroke | 135H | 1986, 1987, 1988 |
| Mercury Marine | 135EXLPTO 2-Stroke | 135H | 1986, 1987, 1988 |
| Mercury Marine | 135L 2-Stroke | 135H | 1989 |
| Mercury Marine | 135XL 2-Stroke | 135H | 1989 |
| Mercury Marine | 150CXL | 150H | 1989 |
| Mercury Marine | 150ELPT OI | 150H | 1984, 1985 |
| Mercury Marine | 150ELPT | 150H | 1983, 1984, 1985 |
| Mercury Marine | 150ELPTO | 150H | 1986, 1987, 1988 |
| Mercury Marine | 150EXLPT OI | 150H | 1984, 1985 |
| Mercury Marine | 150EXLPT | 150H | 1983, 1984, 1985 |
| Mercury Marine | 150EXLPTO | 150H | 1986, 1987, 1988 |
| Mercury Marine | 150L 2-Stroke | 150H | 1989 |
| Mercury Marine | 150XL 2-Stroke | 150H | 1989 |
| Mercury Marine | 150XR2 ELPTO | 150H | 1984, 1985, 1986, 1987 |
| Mercury Marine | 150XR4 ELPTO | 150H | 1988, 1989 |
| Mercury Marine | 175CXL | 175H | 1989 |
| Mercury Marine | 175ELPT OI | 175H | 1985 |
| Mercury Marine | 175ELPTO | 175H | 1985, 1986, 1987, 1988 |
| Mercury Marine | 175EXLPT OI | 175H | 1985 |
| Mercury Marine | 175EXLPTO | 175H | 1985, 1986, 1987, 1988 |
| Mercury Marine | 175L | 175H | 1989 |
| Mercury Marine | 175XL | 175H | 1989 |
| Mercury Marine | 200CXL | 200H | 1989 |
| Mercury Marine | 200ELPT OI | 200H | 1984, 1985 |
| Mercury Marine | 200ELPT | 200H | 1983, 1984 |
| Mercury Marine | 200ELPTO | 200H | 1985, 1986, 1987, 1988 |
| Mercury Marine | 200EXLPT OI | 200H | 1984, 1985 |
| Mercury Marine | 200EXLPT | 200H | 1983, 1984 |
| Mercury Marine | 200EXLPTO | 200H | 1985, 1986, 1987, 1988 |
| Mercury Marine | 200L | 200H | 1989 |
| Mercury Marine | 200XL | 200H | 1989 |
| Mercury Marine | 200XRI | 200H | 1989 |
| Mercury Marine | 220ELPTO Laser XRI | 220H | 1988 |
| Mercury Marine | 220ELPTO | 220H | 1987 |
| Mercury Marine | 220EXLPTO Laser XRI | 220H | 1988 |
| Mercury Marine | 220EXLPTO | 220H | 1987 |
| Mercury Marine | 35ELO | 35H | 1987, 1988, 1989 |
| Mercury Marine | 35ELPTO | 35H | 1987, 1988, 1989 |
| Mercury Marine | 35EO | 35H | 1987, 1988, 1989 |
| Mercury Marine | 35M | 35H | 1987, 1988, 1989 |
| Mercury Marine | 35ML | 35H | 1987, 1988, 1989 |
| Mercury Marine | 45ELHO | 45H | 1987, 1988 |
| Mercury Marine | 45ELHPTO | 45H | 1988 |
| Mercury Marine | 45ELO | 45H | 1987, 1988, 1989 |
| Mercury Marine | 45ELPTO | 45H | 1987, 1988, 1989 |
| Mercury Marine | 45MLH | 45H | 1987, 1988, 1989 |
| Mercury Marine | 50ELO 2-Stroke | 50H | 1988, 1989 |
| Mercury Marine | 50ELPTO 2-Stroke | 50H | 1988, 1989 |
| Mercury Marine | 60ELO 2-Stroke | 60H | 1988, 1989 |
| Mercury Marine | 60ELPTO 2-Stroke | 60H | 1988, 1989 |
| Mercury Marine | 70ELO | 70H | 1987, 1988, 1989 |
| Mercury Marine | 70ELPTO | 70H | 1987, 1988, 1989 |
| Mercury Marine | 75EL 2-Stroke | 75H | 1984, 1985 |
| Mercury Marine | 75ELO 2-Stroke | 75H | 1986 |
| Mercury Marine | 75ELPT 2-Stroke | 75H | 1984, 1985 |
| Mercury Marine | 75ELPTO 2-Stroke | 75H | 1986 |
| Mercury Marine | 80ELO | 80H | 1987, 1988, 1989 |
| Mercury Marine | 80ELPTO | 80H | 1987, 1988, 1989 |
| Mercury Marine | 90EL 2-Stroke | 90H | 1984, 1985 |
| Mercury Marine | 90ELO 2-Stroke | 90H | 1986, 1987, 1988 |
| Mercury Marine | 90ELPT 2-Stroke | 90H | 1984, 1985 |
| Mercury Marine | 90ELPTO 2-Stroke | 90H | 1986, 1987, 1988, 1989 |
| Mercury Marine | All Models | 40-220 H | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
