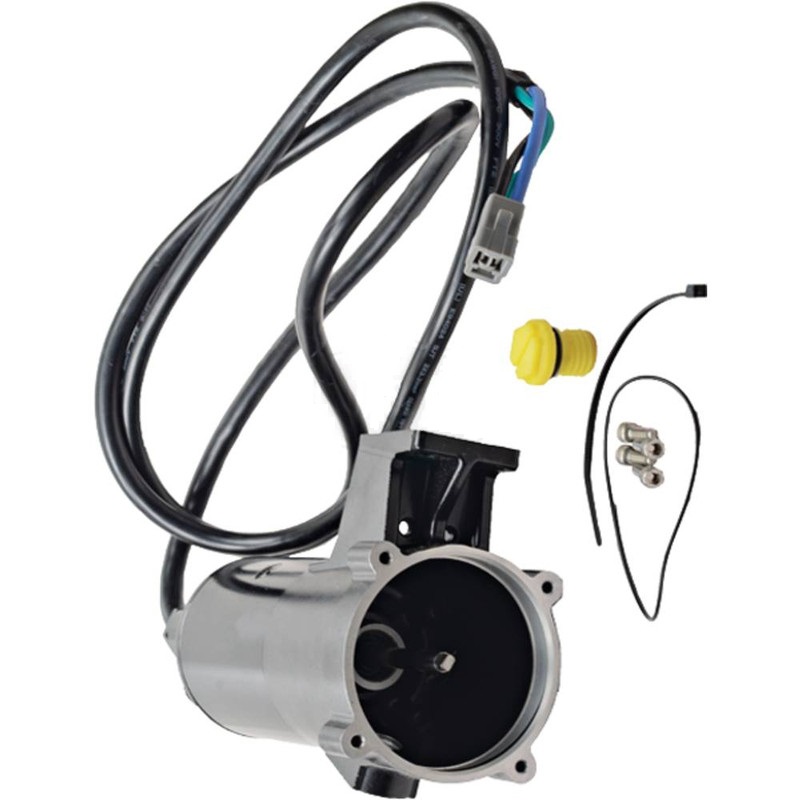

NEW Tilt/Trim Motor for CHRYSLER MARINE, EVINRUDE JOHNSON & U.S. Various Models; 430-20024, 44-9541-1, 45-5541, F17563, 0172543, 0382715, 172543, 382715, 18-6762; LESTER 10806
$339.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
3.031″ |
| OD |
77 mm |
| SHAFT OD |
0.291″ |
| SHAFT OD |
7.400mm |
| LENGTH |
220 mm |
| LENGTH |
8.661″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| TERMINAL 4 SIZE |
Wire |
| SHAFT |
3.5mm Drive Tang |
| WARRANTY |
1 Year |
|
Includes Reservoir, 3-Wire Configuration |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0012 |
| CHRYSLER MOTORS |
44-9541-1, 45-5541, F17563 |
| EMP |
4-6762 |
| FORCE |
F17556, F17563, F17564, F17568, F654541, FK654541 |
| J&N ELECTRICAL PRODUCTS |
430-20024 |
| LESTER |
10806 |
| OMC OUTBOARD MARINE CORP |
0172543, 0382715, 172543, 382715 |
| PRESTOLITE |
40-567, ESZ4009, ESZ4012, ESZ4014, ETX4001 |
| SIERRA MARINE |
18-6762 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Chrysler Marine |
100 |
100H |
1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine |
105 |
105H |
1982, 1983, 1984 |
| Chrysler Marine |
115 |
115H |
1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine |
125 |
125H |
1981, 1982, 1983, 1984 |
| Chrysler Marine |
140 |
140H |
1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine |
75 |
75H |
1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine |
85 |
85H |
1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine |
90 |
90H |
1983, 1984 |
| Evinrude Johnson |
E100 |
100H |
1972 |
| Evinrude Johnson |
E115 |
115H |
1973, 1974, 1975, 1976, 1977 |
| Evinrude Johnson |
E125 |
125H |
1972 |
| Evinrude Johnson |
E135 |
135H |
1973 |
| Evinrude Johnson |
E135 |
135H |
1974, 1975, 1976 |
| Evinrude Johnson |
E65 |
65H |
1973 |
| Evinrude Johnson |
E70 |
70H |
1974, 1975, 1976, 1977 |
| Evinrude Johnson |
E75 |
75H |
1975, 1976, 1977 |
| Evinrude Johnson |
E85 |
85H |
1972 |
| Evinrude Johnson |
E85 |
85H |
1973, 1974, 1975, 1976, 1977 |
| U.S. |
All Models |
75-135 H.P |
|
