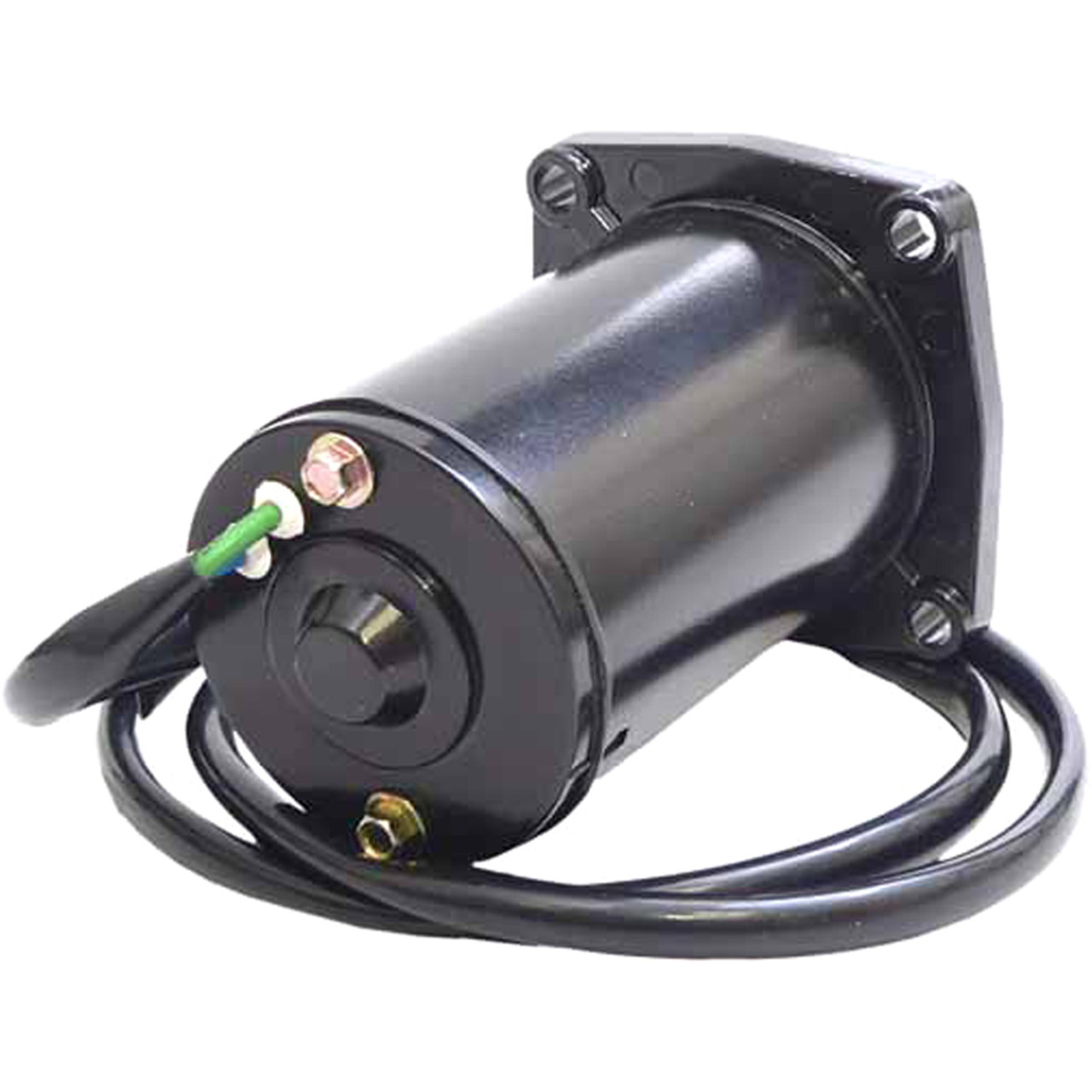

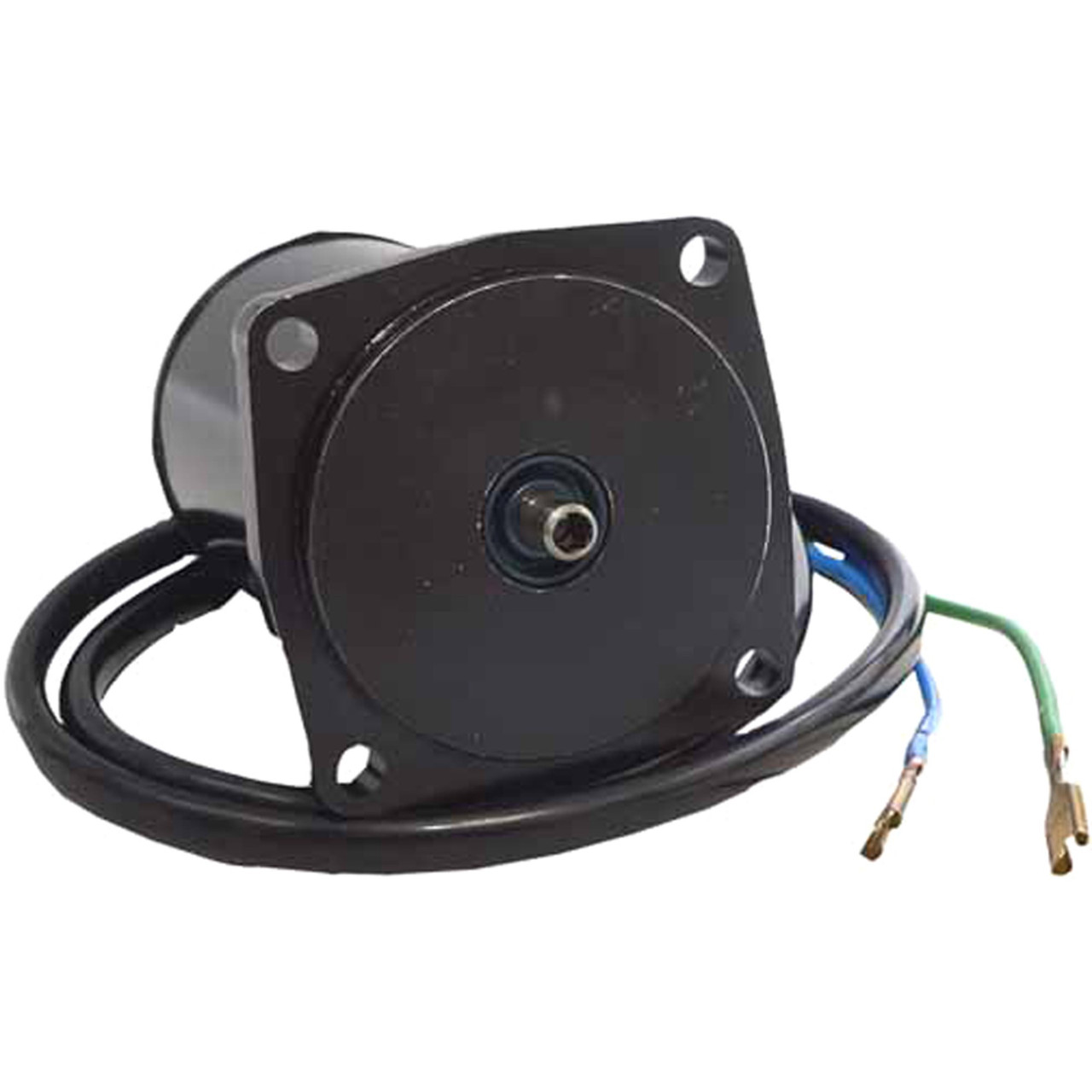

NEW Tilt/Trim Motor for EVINRUDE JOHNSON 25 – 50 HP Outboard Engines; 430-22024, 4-6280, 36120-ZV5-821, 36120ZV5-821, 0435532, 0437801, 435532, 437801; LESTER 10811, 10811B

$144.99

Email
Categories: ,

Specifications

UNIT TYPE Tilt/Trim Motor
CURRENT TYPE DC
ROTATION DIRECTION Reversible
VOLT 12
OD 2.520″
OD 64 mm
SHAFT OD 0.315″
SHAFT OD 8mm
LENGTH 124 mm
LENGTH 4.882″
TERMINAL 2 SIZE Wire
TERMINAL 3 SIZE Wire
SHAFT 5mm Female Hex
WARRANTY 1 Year
2-Wire Configuration, Female Spade Terminals, (4) 7mm Unthreaded Mounting Holes

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD TRM0040
EMP 4-6280
HONDA 36120-ZV5-821, 36120ZV5-821
J&N ELECTRICAL PRODUCTS 430-22024, 430-22026
LESTER 10811, 10811B
OMC OUTBOARD MARINE CORP 0435532, 0437801, 435532, 437801
SIERRA MARINE 18-6258, 18-6280

Applications

Part fit

MAKE MODEL ENGINE YEAR
Evinrude Johnson BE25ARE 25HP 1996, 1997, 1998
Evinrude Johnson BE25ARL 25HP 1996, 1997, 1998
Evinrude Johnson BE25KE 25HP 1996, 1997, 1998
Evinrude Johnson BE25KL 25HP 1996, 1997, 1998
Evinrude Johnson BE25QL 25HP 1996, 1997, 1998
Evinrude Johnson BE35ARE 35HP 1996, 1997, 1998, 1999
Evinrude Johnson BE35ARL 35HP 1996, 1997, 1998
Evinrude Johnson BE35ARS 35HP 2000, 2001
Evinrude Johnson BE35KE 35HP 1996, 1997, 1998, 1999
Evinrude Johnson BE35KL 35HP 1996, 1997, 1998
Evinrude Johnson BE35KS 35HP 2000, 2001
Evinrude Johnson BE35QL 35HP 1996, 1997, 1998
Evinrude Johnson BE40EE 40HP 1996, 1997, 1998
Evinrude Johnson BE40EL 40HP 1996, 1997, 1998
Evinrude Johnson BE40TLE 40HP 1996, 1997, 1998
Evinrude Johnson BE50BEE 50HP 1996
Evinrude Johnson BE50BEL 50HP 1996
Evinrude Johnson BE50ESE 50HP 1998
Evinrude Johnson BE50RLE 50HP 1997, 1998
Evinrude Johnson BE50TLE 50HP 1996, 1997, 1998
Evinrude Johnson BE50TSL 50HP 1997, 1998
Evinrude Johnson BJ25ARE 25HP 1996, 1997, 1998
Evinrude Johnson BJ25ARL 25HP 1996, 1997, 1998
Evinrude Johnson BJ25KE 25HP 1996, 1997, 1998
Evinrude Johnson BJ25KL 25HP 1996, 1997, 1998
Evinrude Johnson BJ25PL 25HP 1999, 2000, 2001
Evinrude Johnson BJ25QL 25HP 1996, 1997, 1998
Evinrude Johnson BJ25VL 25HP 2001
Evinrude Johnson BJ35ARE 35HP 1996, 1997, 1998, 1999
Evinrude Johnson BJ35ARL 35HP 1996, 1997, 1998
Evinrude Johnson BJ35EL 35HP 1999, 2000, 2001
Evinrude Johnson BJ35EVL 35HP 2001
Evinrude Johnson BJ35KE 35HP 1996, 1997, 1998, 1999
Evinrude Johnson BJ35KL 35HP 1996, 1997, 1998
Evinrude Johnson BJ35PL 35HP 1999, 2000, 2001
Evinrude Johnson BJ35QL 35HP 1996, 1997, 1998
Evinrude Johnson BJ35VL 35HP 2001
Evinrude Johnson BJ40EE 40HP 1996, 1997, 1998
Evinrude Johnson BJ40EL 40HP 1996, 1997, 1998, 1999, 2000, 2001
Evinrude Johnson BJ40ES 40HP 2000, 2001
Evinrude Johnson BJ40PL 40HP 1999, 2000, 2001
Evinrude Johnson BJ40TLE 40HP 1996, 1997, 1998
Evinrude Johnson BJ50BEE 50HP 1996
Evinrude Johnson BJ50BEL 50HP 1996
Evinrude Johnson BJ50EE 50HP 1999
Evinrude Johnson BJ50EL 50HP 1999, 2000, 2001
Evinrude Johnson BJ50ES 50HP 1998, 2000, 2001
Evinrude Johnson BJ50PL 50HP 1999, 2000, 2001
Evinrude Johnson BJ50RLE 50HP 1997, 1998, 1999
Evinrude Johnson BJ50RLS 50HP 2000
Evinrude Johnson BJ50TLE 50HP 1996, 1997, 1998
Evinrude Johnson BJ50TSL 50HP 1997, 1998
Evinrude Johnson E25KL 25HP 1996, 1997, 1998
Evinrude Johnson E25PL 25HP 1999
Evinrude Johnson E25QL 25HP 1996, 1997, 1998
Evinrude Johnson E25RE 25HP 1998, 1999
Evinrude Johnson E25RL 25HP 1998, 1999
Evinrude Johnson E25RME 25HP 1996, 1997, 1998
Evinrude Johnson E25RML 25HP 1996, 1997, 1998
Evinrude Johnson E25TKE 25HP 1996, 1997, 1998
Evinrude Johnson E25TKL 25HP 1996, 1997, 1998
Evinrude Johnson E35KL 35HP 1996, 1997, 1998
Evinrude Johnson E35QL 35HP 1996, 1997, 1998
Evinrude Johnson E35RML 35HP 1996, 1997
Evinrude Johnson E35TKL 35HP 1996, 1997, 1998
Evinrude Johnson E40EE 40HP 1992
Evinrude Johnson E40EE 40HP 1993
Evinrude Johnson E40EE 40HP 1994, 1995
Evinrude Johnson E40EL 40HP 1992
Evinrude Johnson E40EL 40HP 1993
Evinrude Johnson E40EL 40HP 1994, 1995
Evinrude Johnson E40EL 40HP 1996, 1997, 1998
Evinrude Johnson E40RE 40HP 1992
Evinrude Johnson E40RE 40HP 1993
Evinrude Johnson E40RE 40HP 1994, 1995
Evinrude Johnson E40RE 40HP 1996, 1997, 1998
Evinrude Johnson E40RL 40HP 1992
Evinrude Johnson E40RL 40HP 1993
Evinrude Johnson E40RL 40HP 1994, 1995
Evinrude Johnson E40RL 40HP 1996, 1997, 1998
Evinrude Johnson E40TEE 40HP 1992
Evinrude Johnson E40TEE 40HP 1993
Evinrude Johnson E40TEE 40HP 1994, 1995
Evinrude Johnson E40TEE 40HP 1996, 1997, 1998
Evinrude Johnson E40TEL 40HP 1992
Evinrude Johnson E40TEL 40HP 1993
Evinrude Johnson E40TEL 40HP 1994, 1995
Evinrude Johnson E40TEL 40HP 1996, 1997, 1998
Evinrude Johnson E40TLE 40HP 1992
Evinrude Johnson E40TLE 40HP 1993
Evinrude Johnson E40TLE 40HP 1994, 1995
Evinrude Johnson E40TLE 40HP 1996, 1997, 1998
Evinrude Johnson E40TTL 40HP 1992
Evinrude Johnson E40TTL 40HP 1993
Evinrude Johnson E40TTL 40HP 1994, 1995
Evinrude Johnson E40TTL 40HP 1996, 1997, 1998
Evinrude Johnson E50BEE 50HP 1992
Evinrude Johnson E50BEE 50HP 1993
Evinrude Johnson E50BEE 50HP 1994, 1995
Evinrude Johnson E50BEL 50HP 1992
Evinrude Johnson E50BEL 50HP 1993
Evinrude Johnson E50BEL 50HP 1994, 1995
Evinrude Johnson E50ESL 50HP 1997, 1998
Evinrude Johnson E50J Jet 35HP 1992
Evinrude Johnson E50J Jet 35HP 1993
Evinrude Johnson E50J Jet 35HP 1994, 1995
Evinrude Johnson E50J Jet 35HP 1996, 1997
Evinrude Johnson E50TEL 50HP 1992
Evinrude Johnson E50TEL 50HP 1993
Evinrude Johnson E50TEL 50HP 1994, 1995
Evinrude Johnson E50TLE 50HP 1992
Evinrude Johnson E50TLE 50HP 1993
Evinrude Johnson E50TLE 50HP 1994, 1995
Evinrude Johnson E50TLE 50HP 1996, 1997, 1998
Evinrude Johnson E50TSL 50HP 1997, 1998
Evinrude Johnson HE35RML 35HP 1996, 1997
Evinrude Johnson HE40RE 40HP 1996, 1997
Evinrude Johnson HE40RL 40HP 1996, 1997
Evinrude Johnson HJ35RML 35HP 1996, 1997
Evinrude Johnson HJ40RE 40HP 1996, 1997
Evinrude Johnson HJ40RL 40HP 1996, 1997
Evinrude Johnson J25KL 25HP 1996, 1997, 1998
Evinrude Johnson J25PL 25HP 1999, 2000, 2001
Evinrude Johnson J25QL 25HP 1996, 1997, 1998
Evinrude Johnson J25RE 25HP 1998, 1999
Evinrude Johnson J25RL 25HP 1998, 1999, 2000, 2001
Evinrude Johnson J25RME 25HP 1996, 1997, 1998
Evinrude Johnson J25RML 25HP 1996, 1997, 1998
Evinrude Johnson J25RVL 25HP 2001
Evinrude Johnson J25TEL3 25HP 1999, 2000, 2001
Evinrude Johnson J25TKE 25HP 1996, 1997, 1998
Evinrude Johnson J25TKL 25HP 1996, 1997, 1998
Evinrude Johnson J25TVL3 25HP 2001
Evinrude Johnson J25VL 25HP 2001
Evinrude Johnson J35EL 35HP 1999
Evinrude Johnson J35KL 35HP 1996, 1997, 1998
Evinrude Johnson J35PL 35HP 1999, 2000, 2001
Evinrude Johnson J35QL 35HP 1996, 1997, 1998
Evinrude Johnson J35RL 35HP 1999, 2000, 2001
Evinrude Johnson J35RML 35HP 1996, 1997
Evinrude Johnson J35RVL 35HP 2001
Evinrude Johnson J35TEL 35HP 1999, 2000, 2001
Evinrude Johnson J35TKL 35HP 1996
Evinrude Johnson J35TVL 35HP 2001
Evinrude Johnson J35VL 35HP 2001
Evinrude Johnson J40EE 40HP 1992
Evinrude Johnson J40EE 40HP 1993
Evinrude Johnson J40EE 40HP 1994, 1995
Evinrude Johnson J40EL 40HP 1992
Evinrude Johnson J40EL 40HP 1993
Evinrude Johnson J40EL 40HP 1994, 1995
Evinrude Johnson J40EL 40HP 1996, 1997, 1998
Evinrude Johnson J40PL 40HP 1999, 2000, 2001, 2002, 2003, 2004
Evinrude Johnson J40RE 40HP 1992
Evinrude Johnson J40RE 40HP 1993
Evinrude Johnson J40RE 40HP 1994, 1995
Evinrude Johnson J40RE 40HP 1996, 1997, 1998, 1999
Evinrude Johnson J40RL 40HP 1992
Evinrude Johnson J40RL 40HP 1993
Evinrude Johnson J40RL 40HP 1994, 1995
Evinrude Johnson J40RL 40HP 1996, 1997, 1998, 1999, 2000, 2001
Evinrude Johnson J40RS 40HP 2000
Evinrude Johnson J40TEE 40HP 1992
Evinrude Johnson J40TEE 40HP 1993
Evinrude Johnson J40TEE 40HP 1994, 1995
Evinrude Johnson J40TEE 40HP 1996, 1997, 1998
Evinrude Johnson J40TEL 40HP 1992
Evinrude Johnson J40TEL 40HP 1993
Evinrude Johnson J40TEL 40HP 1994, 1995
Evinrude Johnson J40TEL 40HP 1996, 1997, 1998
Evinrude Johnson J40TLE 40HP 1992
Evinrude Johnson J40TLE 40HP 1993
Evinrude Johnson J40TLE 40HP 1994, 1995
Evinrude Johnson J40TLE 40HP 1996, 1997, 1998
Evinrude Johnson J40TPL 40HP 1999, 2000, 2001
Evinrude Johnson J40TTL 40HP 1992
Evinrude Johnson J40TTL 40HP 1993
Evinrude Johnson J40TTL 40HP 1994, 1995
Evinrude Johnson J40TTL 40HP 1996, 1997, 1998
Evinrude Johnson J50BEE 50HP 1992
Evinrude Johnson J50BEE 50HP 1993
Evinrude Johnson J50BEE 50HP 1994, 1995
Evinrude Johnson J50BEL 50HP 1992
Evinrude Johnson J50BEL 50HP 1993
Evinrude Johnson J50BEL 50HP 1994, 1995
Evinrude Johnson J50ELE 50HP 1999
Evinrude Johnson J50ELS 50HP 2000, 2001
Evinrude Johnson J50ESL 50HP 1997, 1998
Evinrude Johnson J50J Jet 35HP 1992
Evinrude Johnson J50J Jet 35HP 1993
Evinrude Johnson J50J Jet 35HP 1994, 1995
Evinrude Johnson J50J Jet 35HP 1996, 1997
Evinrude Johnson J50PL 50HP 1999, 2000, 2001, 2002, 2003, 2004
Evinrude Johnson J50TEL 50HP 1992
Evinrude Johnson J50TEL 50HP 1993
Evinrude Johnson J50TEL 50HP 1994, 1995
Evinrude Johnson J50TLE 50HP 1992
Evinrude Johnson J50TLE 50HP 1993
Evinrude Johnson J50TLE 50HP 1994, 1995
Evinrude Johnson J50TLE 50HP 1996, 1997, 1998
Evinrude Johnson J50TSL 50HP 1997, 1998
Evinrude Johnson RJ50EL 50HP 2001
Evinrude Johnson SE50TLE 50HP 1996
Evinrude Johnson SJ60TLE 50HP 1996
Evinrude Johnson TE40EL 40HP 1992
Evinrude Johnson TE40EL 40HP 1993
Evinrude Johnson TJ40EL 40HP 1992
Evinrude Johnson TJ40EL 40HP 1993
Evinrude Johnson VE40EE 40HP 1992
Evinrude Johnson VE40EE 40HP 1993
Evinrude Johnson VE40EL 40HP 1992
Evinrude Johnson VE40EL 40HP 1993
Evinrude Johnson VE40TEL 40HP 1992
Evinrude Johnson VE40TEL 40HP 1993
Evinrude Johnson VE40TLE 40HP 1992
Evinrude Johnson VE40TLE 40HP 1993
Evinrude Johnson VE50BEE 50HP 1992
Evinrude Johnson VE50BEE 50HP 1993
Evinrude Johnson VE50BEL 50HP 1992
Evinrude Johnson VE50BEL 50HP 1993
Evinrude Johnson VE50TEL 50HP 1992
Evinrude Johnson VE50TLE 50HP 1992
Evinrude Johnson VE50TLE 50HP 1993
Evinrude Johnson VJ40EE 40HP 1992
Evinrude Johnson VJ40EE 40HP 1993
Evinrude Johnson VJ40EL 40HP 1992
Evinrude Johnson VJ40EL 40HP 1993
Evinrude Johnson VJ40TEL 40HP 1992
Evinrude Johnson VJ40TEL 40HP 1993
Evinrude Johnson VJ40TLE 40HP 1992
Evinrude Johnson VJ40TLE 40HP 1993
Evinrude Johnson VJ50BEE 50HP 1992
Evinrude Johnson VJ50BEE 50HP 1993
Evinrude Johnson VJ50BEL 50HP 1992
Evinrude Johnson VJ50BEL 50HP 1993
Evinrude Johnson VJ50TEL 50HP 1992
Evinrude Johnson VJ50TLE 50HP 1992
Evinrude Johnson VJ50TLE 50HP 1993
Evinrude Johnson XJ50ESL 50HP 1998
Honda BF35 35HP 1994, 1995, 1996, 1997
Honda BF40 40HP 1998, 1999, 2000, 2001
Honda BF40 40HP 2002
Honda BF45 45HP 1994, 1995, 1996, 1997
Honda BF50 50HP 1998, 1999, 2000, 2001
Honda BF50 50HP 2002
