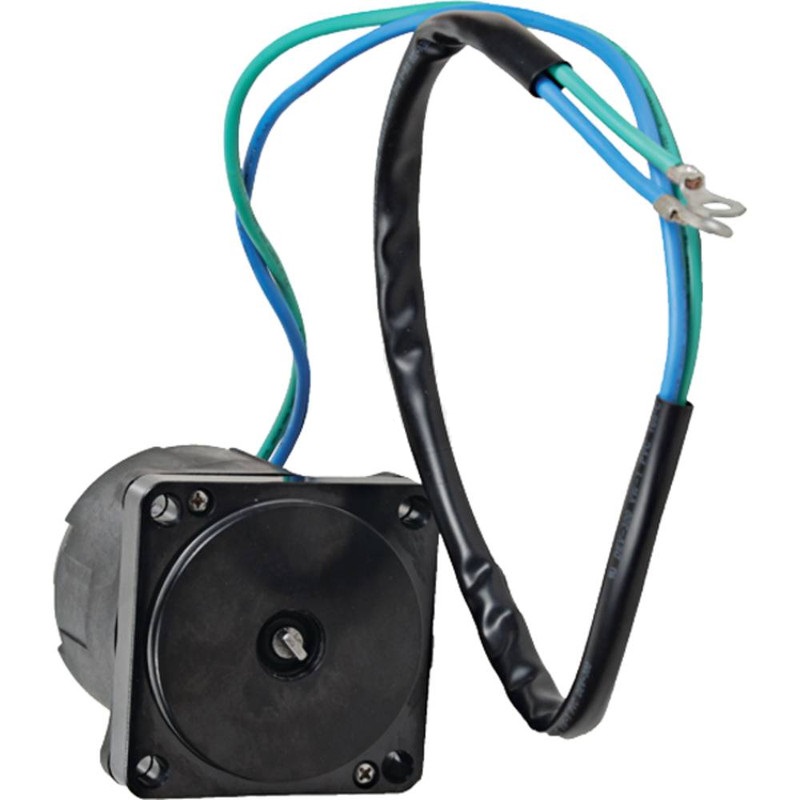

NEW Tilt/Trim Motor for EVINRUDE JOHNSON & YAMAHA Outboard Engines; 430-22088, 5036732, 18-6783, 64E43880-00-00, 64E43880-01-00; LESTER 10855
$209.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| OD |
78 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
112.400 mm |
| LENGTH |
4.425″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
Tang |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0069 |
| EMP |
4-6783 |
| J&N ELECTRICAL PRODUCTS |
430-22088 |
| LESTER |
10855 |
| OMC OUTBOARD MARINE CORP |
5036732 |
| SIERRA MARINE |
18-6783 |
| YAMAHA |
64E43880-00-00, 64E43880-01-00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Evinrude Johnson |
BJ60PL4 |
60HP |
2006 |
| Evinrude Johnson |
BJ70PL4 |
70HP |
2006 |
| Evinrude Johnson |
J60PL4 |
60HP |
2006 |
| Evinrude Johnson |
J70PL4 |
70HP |
2006 |
| Yamaha |
115TJR |
115HP |
1997, 1998, 1999 |
| Yamaha |
115TLR |
115HP |
1997, 1998, 2002 |
| Yamaha |
115TLR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
115TLR |
115HP |
2007, 2008, 2009 |
| Yamaha |
115TLR |
115HP |
2010 |
| Yamaha |
115TXR |
115HP |
2002 |
| Yamaha |
115TXR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
130TLR |
130HP |
1997, 1998, 1999, 2002 |
| Yamaha |
130TLR |
130HP |
2003, 2004 |
| Yamaha |
130TXR |
130HP |
2002 |
| Yamaha |
130TXR |
130HP |
2003, 2004 |
| Yamaha |
150TJR |
150HP |
1997, 1998, 1999 |
| Yamaha |
150TLR |
150HP |
1997, 1998 |
| Yamaha |
150TXR |
150HP |
2001, 2002 |
| Yamaha |
150TXR |
150HP |
2003, 2004, 2005, 2006 |
| Yamaha |
150TXR |
150HP |
2007, 2008, 2009 |
| Yamaha |
150TXR |
150HP |
2010 |
| Yamaha |
175TLR |
175HP |
1997, 1998 |
| Yamaha |
200TLR |
200HP |
1997, 1998 |
| Yamaha |
225TLR |
225HP |
1997 |
| Yamaha |
B115TLR |
115HP |
1998, 1999 |
| Yamaha |
C115TLR |
115HP |
1997, 1998, 1999, 2000 |
| Yamaha |
C115TXR |
115HP |
1997, 1998, 1999, 2000 |
| Yamaha |
C150TLR |
150HP |
1997, 1998, 1999 |
| Yamaha |
C150TXR |
150HP |
1997, 1998, 1999 |
| Yamaha |
D150TLR |
150HP |
1997, 1998, 1999 |
| Yamaha |
DX150TLR |
150HP |
1999, 2000, 2001, 2002 |
| Yamaha |
DX150TLR |
150HP |
2003, 2004, 2005 |
| Yamaha |
F115JA |
115HP |
2012, 2013, 2014, 2015 |
| Yamaha |
F115LA |
115HP |
2012, 2013, 2014, 2015 |
| Yamaha |
F115TJR |
115HP |
2002 |
| Yamaha |
F115TJR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
F115TJR |
115HP |
2007, 2008, 2009 |
| Yamaha |
F115TJR |
115HP |
2010, 2011 |
| Yamaha |
F115TLR |
115HP |
2000, 2001, 2002 |
| Yamaha |
F115TLR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
F115TLR |
115HP |
2007, 2008, 2009 |
| Yamaha |
F115TLR |
115HP |
2010, 2011 |
| Yamaha |
F115TXR |
115HP |
2000, 2001, 2002 |
| Yamaha |
F115TXR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
F115TXR |
115HP |
2007, 2008, 2009 |
| Yamaha |
F115TXR |
115HP |
2010, 2011 |
| Yamaha |
F115XA |
115HP |
2012, 2013, 2014, 2015 |
| Yamaha |
F150LCA |
150HP |
2018 |
| Yamaha |
F150TJR |
150HP |
2010, 2011 |
| Yamaha |
F150TLR |
150HP |
2004, 2005, 2006 |
| Yamaha |
F150TLR |
150HP |
2007, 2008, 2009 |
| Yamaha |
F150TLR |
150HP |
2010, 2011 |
| Yamaha |
F150TXR |
150HP |
2004, 2005, 2006 |
| Yamaha |
F150TXR |
150HP |
2007, 2008, 2009 |
| Yamaha |
F150TXR |
150HP |
2010, 2011 |
| Yamaha |
F150XCA |
150HP |
2018 |
| Yamaha |
F175LA |
175HP |
2015, 2016, 2017, 2018 |
| Yamaha |
F175LCA |
175HP |
2018 |
| Yamaha |
F175XA |
175HP |
2015, 2016, 2017, 2018 |
| Yamaha |
F175XCA |
175HP |
2018 |
| Yamaha |
F200LB |
200HP |
2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha |
F200LCA |
200HP |
2018 |
| Yamaha |
F200XB |
200HP |
2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha |
F200XCA |
200HP |
2014, 2015, 2016, 2017, 2018 |
| Yamaha |
F225TLR |
225HP |
2008, 2009 |
| Yamaha |
F225TLR |
225HP |
2010 |
| Yamaha |
L130TXR |
130HP |
1997, 1998, 1999 |
| Yamaha |
L150TXR |
150HP |
1997, 1998, 1999 |
| Yamaha |
L200TXR |
200HP |
1997, 1998, 1999 |
| Yamaha |
LF115TXR |
115HP |
2000, 2001, 2002 |
| Yamaha |
LF115TXR |
115HP |
2003, 2004, 2005, 2006 |
| Yamaha |
LF115TXR |
115HP |
2007, 2008, 2009 |
| Yamaha |
LF115TXR |
115HP |
2010, 2011, 2012 |
| Yamaha |
LF115XA |
115HP |
2012, 2013, 2014, 2015 |
| Yamaha |
LF150TXR |
150HP |
2004, 2005, 2006 |
| Yamaha |
LF150TXR |
150HP |
2007, 2008, 2009 |
| Yamaha |
LF150TXR |
150HP |
2010, 2011 |
| Yamaha |
LF150XCA |
150HP |
2018 |
| Yamaha |
LF175XCA |
175HP |
2018 |
| Yamaha |
LF200XB |
200HP |
2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha |
LF200XCA |
200HP |
2014, 2015, 2016, 2017, 2018 |
| Yamaha |
LX150TXR |
150HP |
1999, 2000, 2001 |
| Yamaha |
LX200TXR |
200HP |
1999, 2000, 2001 |
| Yamaha |
LZ150TXR |
150HP |
2000, 2001, 2002 |
| Yamaha |
LZ150TXR |
150HP |
2003, 2004, 2005, 2006 |
| Yamaha |
LZ200TXR |
200HP |
2000, 2001, 2002 |
| Yamaha |
LZ200TXR |
200HP |
2003, 2004, 2005, 2006 |
| Yamaha |
LZ200TXR |
200HP |
2007, 2008, 2009 |
| Yamaha |
LZ200TXR |
200HP |
2010, 2011 |
| Yamaha |
LZ200TXR |
200HP |
2012, 2013 |
| Yamaha |
P150TLR |
150HP |
1997, 1998, 1999 |
| Yamaha |
P175TLR |
175HP |
1997, 1998, 1999 |
| Yamaha |
P200TLR |
200HP |
1997, 1998, 1999 |
| Yamaha |
PX150TLR |
150HP |
1999 |
| Yamaha |
S115TLR |
115HP |
1997, 1998, 1999 |
| Yamaha |
S115TXR |
115HP |
1997, 1998, 1999 |
| Yamaha |
S130TLR |
130HP |
1997, 1998, 1999 |
| Yamaha |
S130TRX |
130HP |
1997, 1998, 1999 |
| Yamaha |
S150TLR |
150HP |
1997, 1998, 1999 |
| Yamaha |
S150TXR |
150HP |
1997, 1998, 1999 |
| Yamaha |
S175TXR |
175HP |
1997, 1998, 1999 |
| Yamaha |
S200TXR |
200HP |
1997, 1998, 1999 |
| Yamaha |
SX150TLR |
150HP |
1999, 2000 |
| Yamaha |
SX150TXR |
150HP |
1999, 2000, 2001, 2002 |
| Yamaha |
SX150TXR |
150HP |
2003, 2004 |
| Yamaha |
SX200TXR |
200HP |
1999, 2000, 2001, 2002 |
| Yamaha |
SX200TXR |
200HP |
2003, 2004, 2005 |
| Yamaha |
V150TLR |
150HP |
2000, 2001, 2002 |
| Yamaha |
V150TLR |
150HP |
2003, 2004, 2005, 2006 |
| Yamaha |
V150TLR |
150HP |
2007, 2008, 2009, 2010 |
| Yamaha |
V175TLR |
150HP |
2000 |
| Yamaha |
V200TLR |
200HP |
1998, 1999 |
| Yamaha |
V225TLR |
225HP |
1998, 1999 |
| Yamaha |
VF150LA |
150HP |
2014 |
| Yamaha |
VF150LA |
150HP |
2015, 2016, 2017, 2018 |
| Yamaha |
VF150XA |
150HP |
2016, 2017, 2018 |
| Yamaha |
VF175LA |
175HP |
2016, 2017, 2018 |
| Yamaha |
VF175XA |
175HP |
2018 |
| Yamaha |
VF200LA |
200HP |
2010, 2011 |
| Yamaha |
VF200LA |
200HP |
2012, 2013, 2014 |
| Yamaha |
VF200LA |
200HP |
2015, 2016, 2017, 2018 |
| Yamaha |
VF225LA |
225HP |
2011 |
| Yamaha |
VF225LA |
225HP |
2012, 2013, 2014 |
| Yamaha |
VF225LA |
225HP |
2015, 2016, 2017, 2018 |
| Yamaha |
VF250LA |
250HP |
2010, 2011 |
| Yamaha |
VF250LA |
250HP |
2012, 2013, 2014 |
| Yamaha |
VF250LA |
250HP |
2015, 2016, 2017, 2018 |
| Yamaha |
VX150TLR |
150HP |
2000, 2001, 2002 |
| Yamaha |
VX150TLR |
150HP |
2003, 2004 |
| Yamaha |
VX200TLR |
200HP |
2000, 2001, 2002 |
| Yamaha |
VX200TLR |
200HP |
2003, 2004, 2005 |
| Yamaha |
VX225TLR |
225HP |
2000, 2001, 2002 |
| Yamaha |
VX225TLR |
225HP |
2003, 2004 |
| Yamaha |
VX250TLR |
250HP |
2002, 2003, 2004 |
| Yamaha |
VZ150TLR |
150HP |
2000, 2001, 2002 |
| Yamaha |
VZ150TLR |
150HP |
2003, 2004, 2005, 2006 |
| Yamaha |
VZ150TLR |
150HP |
2007, 2008, 2009 |
| Yamaha |
VZ150TLR |
150HP |
2010, 2011 |
| Yamaha |
VZ150TLR |
150HP |
2012, 2013, 2014, 2015 |
| Yamaha |
VZ175TLR |
175HP |
2001, 2002 |
| Yamaha |
VZ175TLR |
175HP |
2003, 2004, 2005, 2006 |
| Yamaha |
VZ175TLR |
175HP |
2007, 2008, 2009 |
| Yamaha |
VZ175TLR |
175HP |
2010, 2011 |
| Yamaha |
VZ175TLR |
175HP |
2012, 2013 |
| Yamaha |
VZ200RTLTR |
200HP |
2008, 2009 |
| Yamaha |
VZ200RTLTR |
200HP |
2010 |
| Yamaha |
VZ200TLR |
200HP |
2001, 2002 |
| Yamaha |
VZ200TLR |
200HP |
2003, 2004, 2005, 2006 |
| Yamaha |
VZ200TLR |
200HP |
2007 |
| Yamaha |
VZ225HTLR |
225HP |
2008, 2009 |
| Yamaha |
VZ225HTLR |
225HP |
2010 |
| Yamaha |
VZ225TLR |
225HP |
2003, 2004, 2005, 2006 |
| Yamaha |
VZ225TLR |
225HP |
2007 |
| Yamaha |
VZ250FTLR |
250HP |
2008, 2009 |
| Yamaha |
VZ250FTLR |
250HP |
2010 |
| Yamaha |
VZ250TLR |
250HP |
2003, 2004, 2005, 2006 |
| Yamaha |
VZ250TLR |
250HP |
2007 |
| Yamaha |
VZ300BTLR |
300HP |
2008, 2009 |
| Yamaha |
VZ300BTLR |
300HP |
2010 |
| Yamaha |
VZ300TLR |
300HP |
2004, 2005, 2006 |
| Yamaha |
VZ300TLR |
300HP |
2007 |
| Yamaha |
Z150TLR |
150HP |
2000, 2001, 2002 |
| Yamaha |
Z150TLR |
150HP |
2003, 2004 |
| Yamaha |
Z150TXR |
150HP |
2000, 2001, 2002 |
| Yamaha |
Z150TXR |
150HP |
2003, 2004, 2005, 2006 |
| Yamaha |
Z175TXR |
175HP |
2001, 2002 |
| Yamaha |
Z175TXR |
175HP |
2003, 2004, 2005, 2006 |
| Yamaha |
Z200TLR |
200HP |
2000, 2001, 2005, 2006 |
| Yamaha |
Z200TXR |
200HP |
2000, 2001, 2002 |
| Yamaha |
Z200TXR |
200HP |
2003, 2004, 2005, 2006 |
| Yamaha |
Z200TXR |
200HP |
2007, 2008, 2009 |
| Yamaha |
Z200TXR |
200HP |
2010, 2011 |
| Yamaha |
Z200TXR |
200HP |
2012, 2013 |
