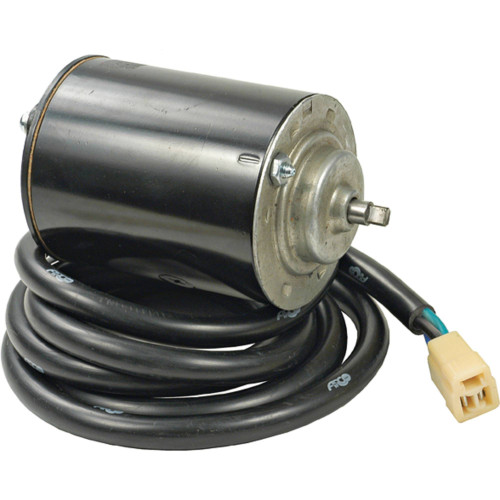

NEW Tilt/Trim Motor for EVINRUDE JOHNSON Various Models; 430-20010, 0172588, 0173944, 172588, 173944, 40-329, 40-329A, EFT4003, ESI4001; LESTER 10800

$209.99

Email
Categories: ,

Specifications

UNIT TYPE Tilt/Trim Motor
CURRENT TYPE DC
ROTATION DIRECTION Reversible
VOLT 12
OD 2.807″
OD 71.300 mm
SHAFT OD 0.311″
SHAFT OD 7.900mm
LENGTH 134.700 mm
LENGTH 5.303″
TERMINAL 2 SIZE Wire
TERMINAL 3 SIZE Wire
TERMINAL 4 SIZE Wire
SHAFT 6.25mm X 3.9mm Tang On Shaft
WARRANTY 1 Year
Includes 3-1/2 Foot Wire Harness With 3 Female Spade Terminal Plug and Mounting Gasket

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD TRM0033
EMP 4-6756
J&N ELECTRICAL PRODUCTS 430-20010
LESTER 10800
OMC OUTBOARD MARINE CORP 0172588, 0173944, 172588, 173944
PRESTOLITE 40-329, 40-329A, EFT4003, ESI4001, ESI4001S, ESZ4015, ESZ4017

Applications

Part fit

MAKE MODEL ENGINE YEAR
Evinrude Johnson E20E 20H 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Evinrude Johnson E20EL 20H 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Evinrude Johnson E25EC 25H 1982, 1983
Evinrude Johnson E25EC 25H 1984, 1985, 1986, 1987, 1988, 1989
Evinrude Johnson E25EE 25H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson E25EL 25H 1981, 1984, 1985, 1986, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson E25EL 25H 1982, 1983
Evinrude Johnson E25TEC 25H 1982, 1983
Evinrude Johnson E25TEC 25H 1984, 1985, 1986, 1987, 1988, 1989
Evinrude Johnson E25TEE 25H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson E25TEL 25H 1982, 1983
Evinrude Johnson E25TEL 25H 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson E28ESL 28H 1990, 1991, 1992, 1993, 1994, 1995, 1996
Evinrude Johnson E30EC 30H 1984, 1985, 1986, 1987, 1988, 1989
Evinrude Johnson E30EE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson E30EL 30H 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson E30RC 30H 1985, 1986, 1987, 1988, 1989
Evinrude Johnson E30RE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Evinrude Johnson E30RL 30H 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Evinrude Johnson E30TEC 30H 1985, 1986, 1987, 1988, 1989
Evinrude Johnson E30TEE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson E30TEL 30H 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson E35AE 35H 1986, 1987
Evinrude Johnson E35AR 35H 1986, 1987
Evinrude Johnson E35E 35H 1980, 1981, 1982, 1983
Evinrude Johnson E35E 35H 1984
Evinrude Johnson E35EL 35H 1980, 1981, 1982, 1983
Evinrude Johnson E35EL 35H 1984
Evinrude Johnson E35RC 35H 1986, 1987, 1988, 1989
Evinrude Johnson E35RE 35H 1990, 1991, 1992, 1993, 1994
Evinrude Johnson E35RL 35H 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Evinrude Johnson E35TEL 35H 1983
Evinrude Johnson E35TEL 35H 1984
Evinrude Johnson E40 40H 1972
Evinrude Johnson E40 40H 1973, 1974, 1975, 1976
Evinrude Johnson E40AEL 40H 1988
Evinrude Johnson E40ARL 40H 1988
Evinrude Johnson E40ATL 40H 1988
Evinrude Johnson E40EC 40H 1985, 1986, 1987, 1988
Evinrude Johnson E40EL 40H 1985, 1986, 1987, 1988
Evinrude Johnson E40RC 40H 1986, 1987, 1988
Evinrude Johnson E40RL 40H 1986, 1987, 1988
Evinrude Johnson E40TEC 40H 1985, 1986, 1987, 1988
Evinrude Johnson E40TEL 40H 1985, 1986, 1988
Evinrude Johnson E40TLC 40H 1986, 1987, 1988
Evinrude Johnson E40TTL 40H 1988
Evinrude Johnson E48ESL 48H 1987, 1988
Evinrude Johnson E50 50H 1972
Evinrude Johnson E50 50H 1973, 1974, 1975, 1979
Evinrude Johnson E50BEC 50H 1982, 1983
Evinrude Johnson E50BEC 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson E50BEL 50H 1981, 1982, 1983
Evinrude Johnson E50BEL 50H 1984, 1985, 1987, 1988
Evinrude Johnson E50TEL 50H 1983
Evinrude Johnson E50TEL 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson E50TLC 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson E55 55H 1976, 1977, 1978, 1979
Evinrude Johnson E60EC 60H 1980, 1981, 1982, 1983
Evinrude Johnson E60EL 60H 1980, 1981, 1982, 1983
Evinrude Johnson E60EL 60H 1984, 1985
Evinrude Johnson E60TL 60H 1981, 1982, 1983
Evinrude Johnson E60TL 60H 1984, 1985
Evinrude Johnson E65 65H 1972
Evinrude Johnson E65 65H 1973
Evinrude Johnson E70 70H 1974, 1975
Evinrude Johnson E75 75H 1975, 1976, 1977, 1978, 1979
Evinrude Johnson E75E 75H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson E75ER 75H 1980, 1981, 1982, 1983
Evinrude Johnson E75ERL 75H 1980
Evinrude Johnson E75TL 75H 1984
Evinrude Johnson E75TRL 75H 1981, 1982, 1983
Evinrude Johnson J20EC 20H 1985, 1987, 1988, 1989
Evinrude Johnson J20EE 20H 1990, 1991, 1992, 1993, 1994, 1995
Evinrude Johnson J20EL 20H 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Evinrude Johnson J25EC 25H 1982, 1983
Evinrude Johnson J25EC 25H 1984, 1985, 1986, 1987, 1988, 1989
Evinrude Johnson J25EE 25H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J25EL 25H 1982, 1983
Evinrude Johnson J25EL 25H 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J25TEC 25H 1982, 1983
Evinrude Johnson J25TEC 25H 1984, 1985, 1986, 1987, 1988, 1989
Evinrude Johnson J25TEE 25H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J25TEL 25H 1982, 1983
Evinrude Johnson J25TEL 25H 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J28ESL 28H 1987, 1991, 1992, 1993, 1994, 1995, 1996
Evinrude Johnson J30EC 30H 1984, 1985, 1987, 1988, 1989
Evinrude Johnson J30EE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J30EL 30H 1984, 1985, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Evinrude Johnson J30RC 30H 1985, 1987, 1988, 1989
Evinrude Johnson J30RE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Evinrude Johnson J30RL 30H 1985, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Evinrude Johnson J30TEC 30H 1985, 1987, 1988, 1989
Evinrude Johnson J30TEE 30H 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson J30TEL 30H 1985, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Evinrude Johnson J35AE 35H 1986, 1987
Evinrude Johnson J35AR 35H 1986, 1987
Evinrude Johnson J35EC 35H 1980, 1981, 1982, 1983
Evinrude Johnson J35EC 35H 1984
Evinrude Johnson J35EL 35H 1980, 1981, 1982, 1983
Evinrude Johnson J35EL 35H 1984
Evinrude Johnson J35RC 35H 1986, 1987, 1988, 1989
Evinrude Johnson J35RE 35H 1990, 1991, 1992, 1993, 1994
Evinrude Johnson J35RL 35H 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Evinrude Johnson J35TEL 35H 1983
Evinrude Johnson J35TEL 35H 1984
Evinrude Johnson J40AEL 40H 1988
Evinrude Johnson J40ARL 40H 1988
Evinrude Johnson J40ATL 40H 1988
Evinrude Johnson J40EC 40H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J40EL 40H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J40RC 40H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J40RL 40H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J40TEC 40H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J40TEL 40H 1984, 1985, 1986, 1988
Evinrude Johnson J40TLC 40H 1986, 1987, 1988
Evinrude Johnson J40TTL 40H 1988
Evinrude Johnson J48ESL 48H 1987, 1988
Evinrude Johnson J50BEC 50H 1982, 1983
Evinrude Johnson J50BEC 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J50BEL 50H 1982, 1983
Evinrude Johnson J50BEL 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J50TEL 50H 1983
Evinrude Johnson J50TEL 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J50TLC 50H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J60EC 60H 1980, 1981, 1982, 1983
Evinrude Johnson J60EL 60H 1980, 1981, 1982, 1983
Evinrude Johnson J60EL 60H 1984, 1985
Evinrude Johnson J60TL 60H 1982, 1983
Evinrude Johnson J60TL 60H 1984, 1985
Evinrude Johnson J75EC 75H 1982, 1983
Evinrude Johnson J75EC 75H 1984, 1985, 1986, 1987, 1988
Evinrude Johnson J75EL 75H 1982, 1983
Evinrude Johnson J75EL 75H 1984
Evinrude Johnson J75ER 75H 1980, 1981
Evinrude Johnson J75ERL 75H 1980
Evinrude Johnson J75TL 75H 1983
Evinrude Johnson J75TL 75H 1984
Evinrude Johnson J75TRL 75H 1981
