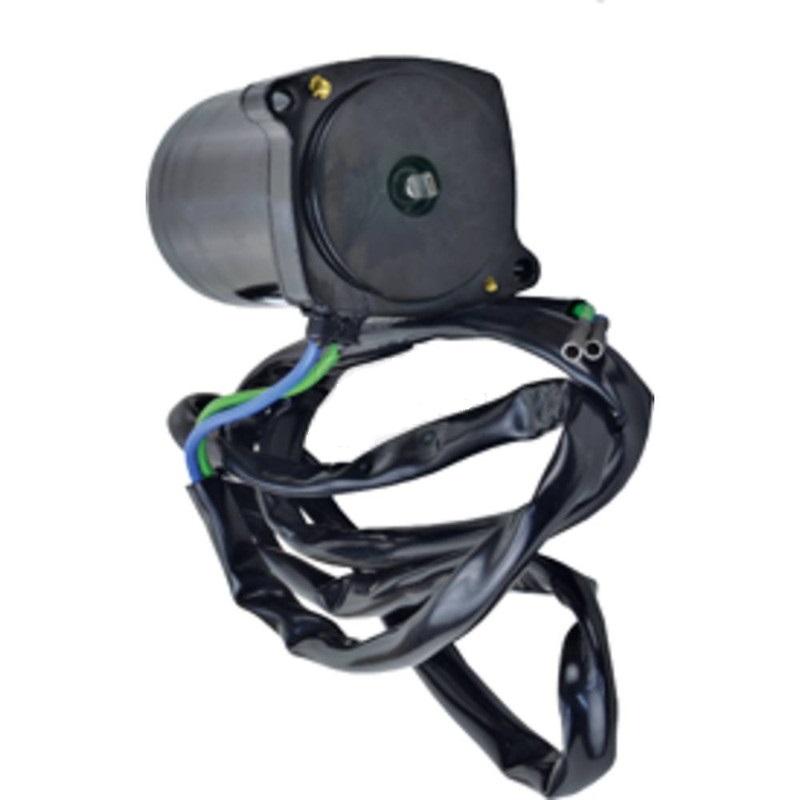

NEW Tilt/Trim Motor for MERCURY MARINE 100ELPTO, 100ELXLPTO, 115ELPTO & 115EXLPTO Outboard Engines; 430-20067, 811628, 828708A1, 878265A2, 878265A6, 18-6774; LESTER 10820
$209.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.854″ |
| OD |
72.500 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
143 mm |
| LENGTH |
5.630″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
Blade |
| WARRANTY |
1 Year |
|
3-Ram, Aft Fill Reservoirs, Two Wire Replacement Version |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0011 |
| EMP |
4-6774 |
| J&N ELECTRICAL PRODUCTS |
430-20026, 430-20067, 430-22009 |
| LESTER |
10820 |
| MERCURY MARINE |
811628, 828708A1, 878265A2, 878265A6 |
| SIERRA MARINE |
18-6774 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Mercury Marine |
100ELPTO 2-Stroke |
100H |
1988, 1989 |
| Mercury Marine |
100ELXLPTO 2-Stroke |
100H |
1988, 1989 |
| Mercury Marine |
115ELPTO 2-Stroke |
115H |
1989 |
| Mercury Marine |
115EXLPTO 2-Stroke |
115H |
1989 |
| Mercury Marine |
All Models |
Various |
1993, 1994, 1995 |
