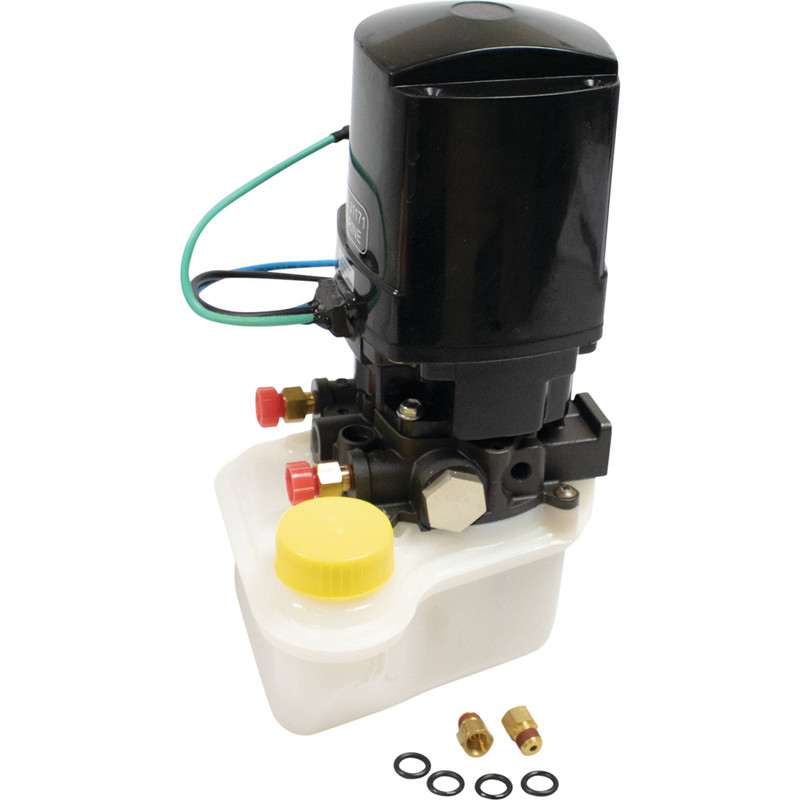

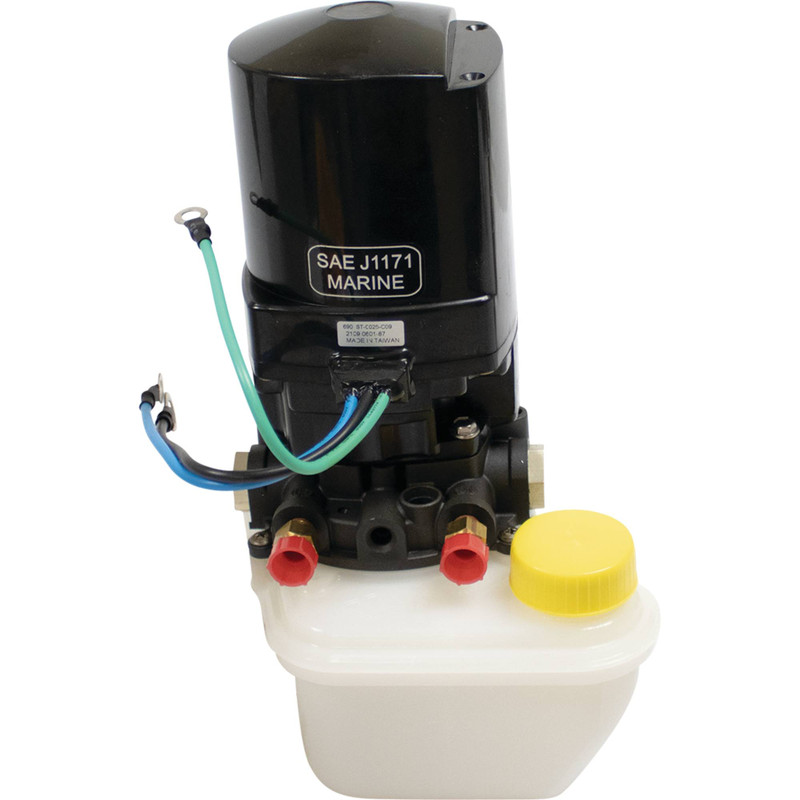

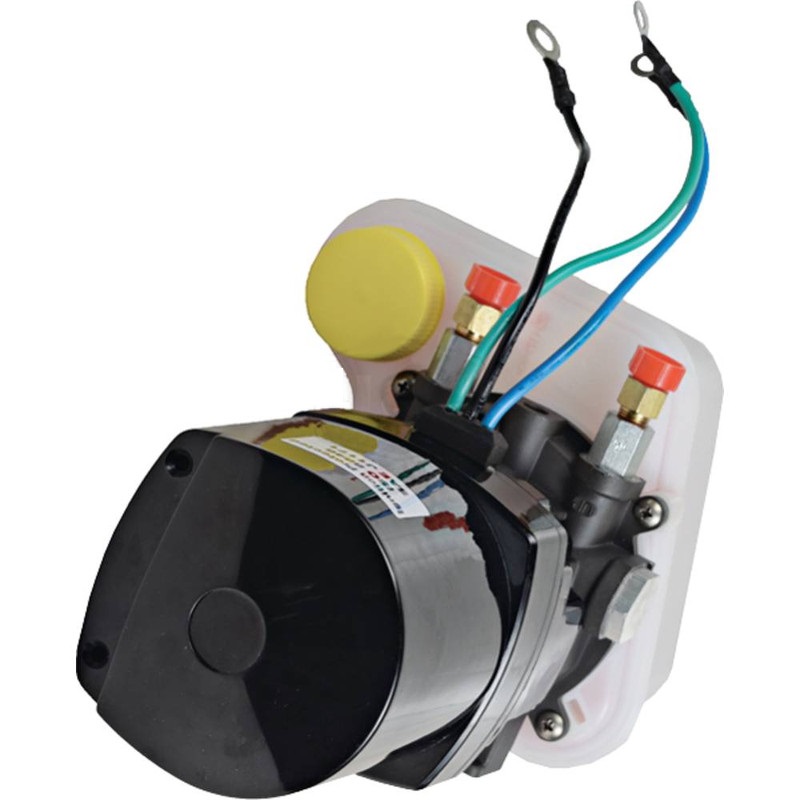

NEW Tilt/Trim Motor for MERCURY MARINE Outboard Engines; 430-22084, RT05017, 14336A17, 14336A20, 14336A22, 14336A28, 14336A8, 88183A12; LESTER 10822, 10857
$429.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CRITICAL NOTE |
Side Hull Mount |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| OD |
102 mm |
| OD |
4.016″ |
| LENGTH |
155 mm |
| LENGTH |
6.102″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| WARRANTY |
1 Year |
|
Includes Pump & Reservoir |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0027, TRM0080 |
| DELCO |
RT05017 |
| EMP |
4-6274 |
| J&N ELECTRICAL PRODUCTS |
430-22005, 430-22084 |
| LESTER |
10822, 10857 |
| MERCURY MARINE |
14336A17, 14336A20, 14336A22, 14336A28, 14336A8, 88183A12 |
| SIERRA MARINE |
18-6769-1 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Mercury Marine |
175ELPTO |
175HP |
1988 |
| Mercury Marine |
175EXLPTO |
175HP |
1988 |
| Mercury Marine |
200ELPTO |
200HP |
1988 |
| Mercury Marine |
200EXLPTO |
200HP |
1988 |
| Mercury Marine |
250XL |
250HP |
1989 |
| Mercury Marine |
250XXL |
250HP |
1989 |
| Mercury Marine |
275XL |
275HP |
1989 |
| Mercury Marine |
275XXL |
275HP |
1989 |
| Mercury Marine |
3.4 ELPT |
275HP |
1984, 1985, 1986, 1987 |
| Mercury Marine |
3.4 EXLPT |
275HP |
1984, 1985, 1986, 1987 |
| Mercury Marine |
300ELPT |
300HP |
1983 |
| Mercury Marine |
300EXLPT |
300HP |
1983 |
| Mercury Marine |
All Models |
Various |
|
| Mercury Marine |
All Models |
Various |
|
| Mercury Marine |
All Models |
Various |
|
| Mercury Marine |
All Models |
Various |
|
| Mercury Marine |
All Models |
Various |
|
