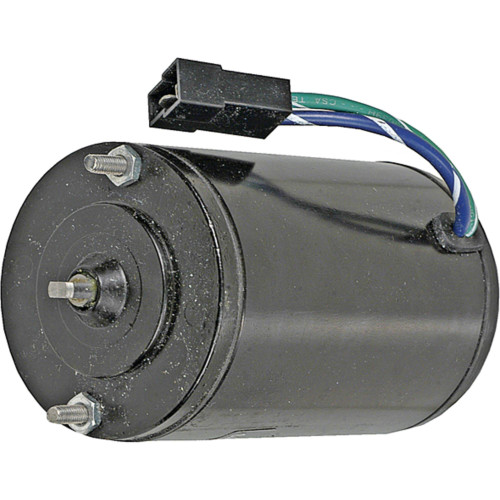

NEW Tilt/Trim Motor for OMC & VOLVO PENTA Outboard Engines; 430-22022, 4-6805, 3858071, 3586765, 3856596, 3858071, 854525-3; LESTER 10819M, 10845
$144.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CRITICAL NOTE |
Services OEM Type Pumps & 63.2mm / 2.5″ Bolt Centers |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.980″ |
| OD |
75.700 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
145 mm |
| LENGTH |
5.709″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
3.7mm X 8mm Drive Tang |
| WARRANTY |
1 Year |
|
2-Wire Configuration |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0032 |
| EMP |
4-6805 |
| J&N ELECTRICAL PRODUCTS |
430-22022 |
| LESTER |
10819M, 10845 |
| OMC OUTBOARD MARINE CORP |
3858071 |
| VOLVO |
3586765, 3856596, 3858071, 854525-3 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| OMC |
3.0L |
4cyl 181ci 3.0L GM |
1998 |
| OMC |
4.3L |
6cyl 262ci 4.3L GM |
1998 |
| OMC |
5.0L |
8cyl 305ci 5.0L GM |
1998 |
| OMC |
5.7L |
8cyl 350ci 5.7L GM |
1998 |
| OMC |
7.4L |
8cyl 454ci 7.4L GM |
1998 |
| OMC |
8.2L |
8cyl 502ci 8.2L GM |
1998 |
| Volvo Penta |
All Models |
Various |
All |
