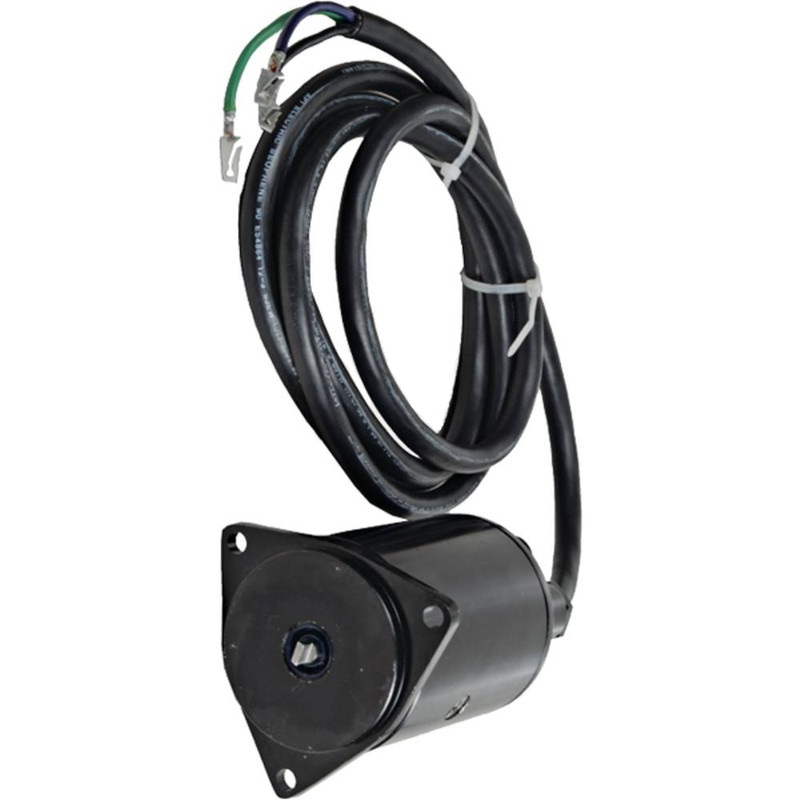

NEW Tilt/Trim Motor for OMC Outboard Engines; 430-22081, RT05040, 0984356, 984356; LESTER 10804
$199.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| OD |
3.701″ |
| OD |
94 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
136 mm |
| LENGTH |
5.354″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0058 |
| DELCO |
RT05040 |
| EMP |
4-6814 |
| LESTER |
10804 |
| OMC OUTBOARD MARINE CORP |
0984356, 984356 |
| SIERRA MARINE |
18-6814 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| OMC |
2.5L |
4cyl 153ci 2.5L GM |
1986 |
| OMC |
3.0L |
4cyl 181ci 3.0L GM |
1986, 1987, 1988 |
| OMC |
4.3L |
6cyl 262ci 4.3L GM |
1986, 1987, 1988 |
| OMC |
5.0L |
8cyl 305ci 5.0L GM |
1986, 1987, 1988 |
| OMC |
5.7L |
8cyl 350ci 5.7L GM |
1986, 1987, 1988 |
| OMC |
7.4L |
8cyl 454ci 7.4L GM |
1988 |
| OMC |
7.5L |
8cyl 460ci 7.5L Ford |
1987, 1988 |
