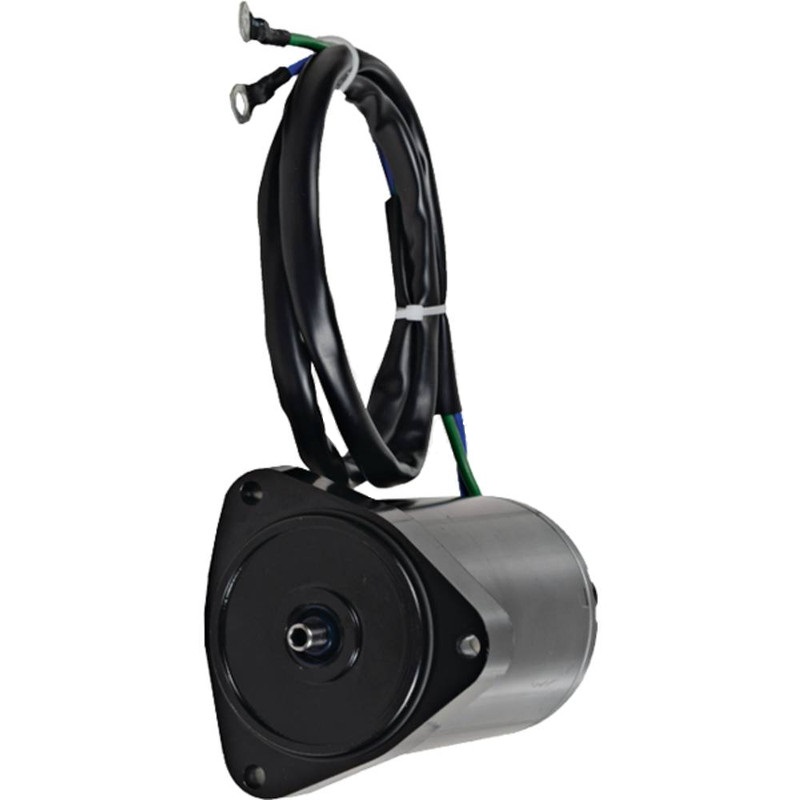

NEW Tilt/Trim Motor for SUZUKI Outboard Engines; 430-22089, RT05037, 18-6786, 38100-87D10-0ED, 38100-87D10OED, 38100-87E20-0ED, 38100-87E20OED, 38100-92E00-0ED, 38100-92E00OED; LESTER 10838, 10846

Name: NEW Tilt/Trim Motor for SUZUKI Outboard Engines; 430-22089, RT05037, 18-6786, 38100-87D10-0ED, 38100-87D10OED, 38100-87E20-0ED, 38100-87E20OED, 38100-92E00-0ED, 38100-92E00OED; LESTER 10838, 10846
SKU: 9191
Availability: InStock

$149.99

Categories: Motor, Tilt/ Trim Motors

Specifications

UNIT TYPE	Tilt/Trim Motor
CURRENT TYPE	DC
OD	3.583″
OD	91 mm
SHAFT OD	0.315″
SHAFT OD	8mm
LENGTH	141.100 mm
LENGTH	5.555″
TERMINAL 2 SIZE	Wire
TERMINAL 3 SIZE	Wire
SHAFT	Hex
WARRANTY	1 Year

Applications

Part fit

MAKE	MODEL	ENGINE	YEAR
Suzuki	DT100SF	86.6ci – 100HP	1990
Suzuki	DT100TCL	86.6ci – 100HP	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT100TCX	86.6ci – 100HP	1990
Suzuki	DT150SS	164.3ci – 150HP	1990
Suzuki	DT150SS	164.3ci – 150HP	1991
Suzuki	DT150SSN Super Six	164.3ci – 150HP	1992
Suzuki	DT150STCL EFI	164.3ci – 150HP	1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Suzuki	DT150TCL	164.3ci – 150HP	1990
Suzuki	DT150TCL	164.3ci – 150HP	1991, 1992, 1993, 1994
Suzuki	DT150TCX EFI	164.3ci – 150HP	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Suzuki	DT150TCX	164.3ci – 150HP	1990
Suzuki	DT150TCX	164.3ci – 150HP	1991, 1992, 1993, 1994
Suzuki	DT150TCXG EFI	164.3ci – 150HP	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Suzuki	DT150TCXG	164.3ci – 150HP	1990
Suzuki	DT150TCXG	164.3ci – 150HP	1991, 1992, 1993, 1994
Suzuki	DT175TCL	164.3ci – 175HP	1990
Suzuki	DT175TCL	164.3ci – 175HP	1991, 1992
Suzuki	DT175TCX	164.3ci – 175HP	1990
Suzuki	DT175TCX	164.3ci – 175HP	1991, 1992
Suzuki	DT200TCL EFI	164.3ci – 200HP	1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT200TCL	164.3ci – 200HP	1990
Suzuki	DT200TCL	164.3ci – 200HP	1991, 1992, 1993
Suzuki	DT200TCX EFI	164.3ci – 200HP	1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT200TCX	164.3ci – 200HP	1990
Suzuki	DT200TCX	164.3ci – 200HP	1991, 1992, 1993
Suzuki	DT200TCXG EFI	164.3ci – 200HP	1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT200TCXG	164.3ci – 200HP	1990
Suzuki	DT200TCXG	164.3ci – 200HP	1991, 1992, 1993
Suzuki	DT200VL Exante	164.3ci – 200HP	1990
Suzuki	DT200VL Exante	164.3ci – 200HP	1991, 1992
Suzuki	DT200VX Exante	164.3ci – 200HP	1990
Suzuki	DT200VX Exante	164.3ci – 200HP	1991, 1992
Suzuki	DT200VXG	164.3ci – 200HP	1990
Suzuki	DT200VXG	164.3ci – 200HP	1991
Suzuki	DT225TCL EFI	164.3ci – 225HP	1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT225TCL	164.3ci – 225HP	1990
Suzuki	DT225TCL	164.3ci – 225HP	1991, 1992, 1993
Suzuki	DT225TCX EFI	164.3ci – 225HP	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Suzuki	DT225TCX	164.3ci – 225HP	1990
Suzuki	DT225TCX	164.3ci – 225HP	1991, 1992, 1993
Suzuki	DT225TCXG EFI	164.3ci – 225HP	1994, 1995, 1996, 1997, 1998, 1999, 2000
Suzuki	DT225TCXG	164.3ci – 225HP	1993
Suzuki	DT90TCL	86.6ci – 90HP	1991, 1992, 1993, 1994, 1995, 1996, 1997

Manufacturer Name	Manufacturer Part #
ARROWHEAD	TRM0054, TRM0063
DELCO	RT05037
EMP	4-6786
J&N ELECTRICAL PRODUCTS	430-22089
LESTER	10838, 10846
SIERRA MARINE	18-6786
SUZUKI	38100-87D10-0ED, 38100-87D10OED, 38100-87E20-0ED, 38100-87E20OED, 38100-92E00-0ED, 38100-92E00OED
