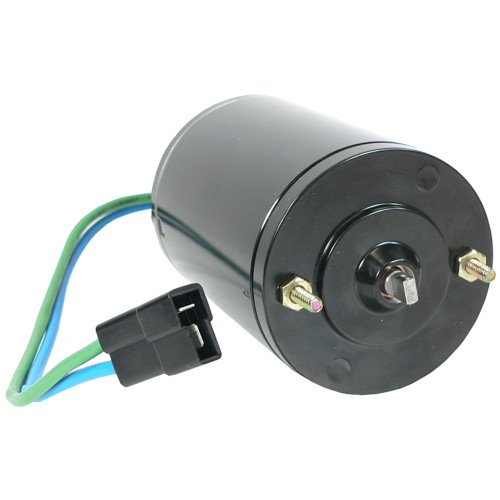

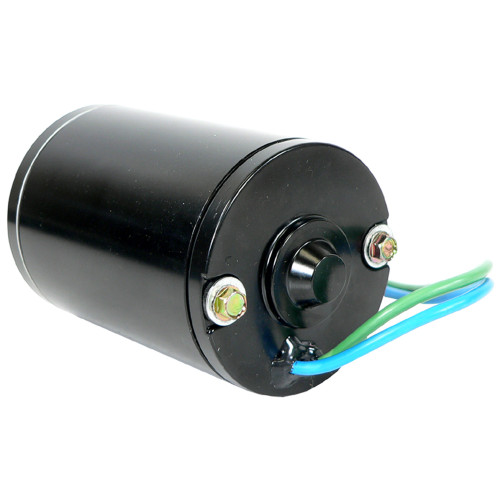

NEW Tilt/Trim Motor for VOLVO PENTA SX Outboard Engines; 430-22055, 4-6804, 3861575; LESTER 10851
$139.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CRITICAL NOTE |
Fits OEM Pump Assemblies With 58.5mm / 2.3″ Bolt Centers Only |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
3.150″ |
| OD |
80 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
129.900 mm |
| LENGTH |
5.114″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
3.7mm X 8mm Drive Tang |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0061 |
| EMP |
4-6804 |
| J&N ELECTRICAL PRODUCTS |
430-22055, 430-22063 |
| LESTER |
10851 |
| VOLVO |
3861575 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Volvo Penta |
All Models |
SX |
All |
